Steps
1. Carefully peel off the tape that secures the fingerprint reader flexible printed circuits cable to the palm-rest and keyboard
assembly.
2. Remove the screw (M2x3) that secures the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
3. Lift the power button with optional fingerprint reader off the slot on the palm-rest and keyboard assembly.
Installing the power button with optional fingerprint reader
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

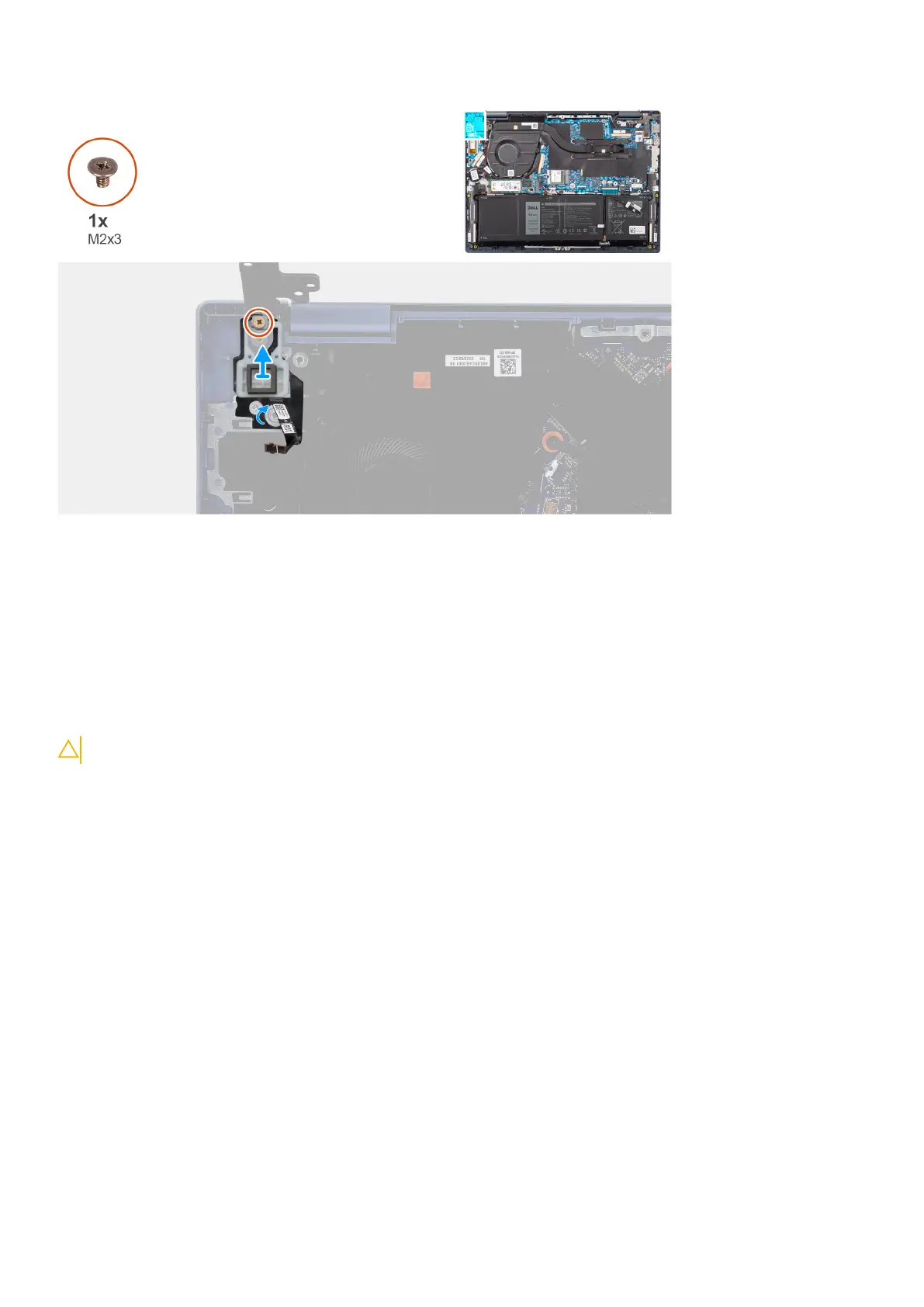

The following image indicates the location of the power button with optional fingerprint reader and provides a visual
representation of the installation procedure.
70
Removing and installing Field Replaceable Units (FRUs)
