Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task

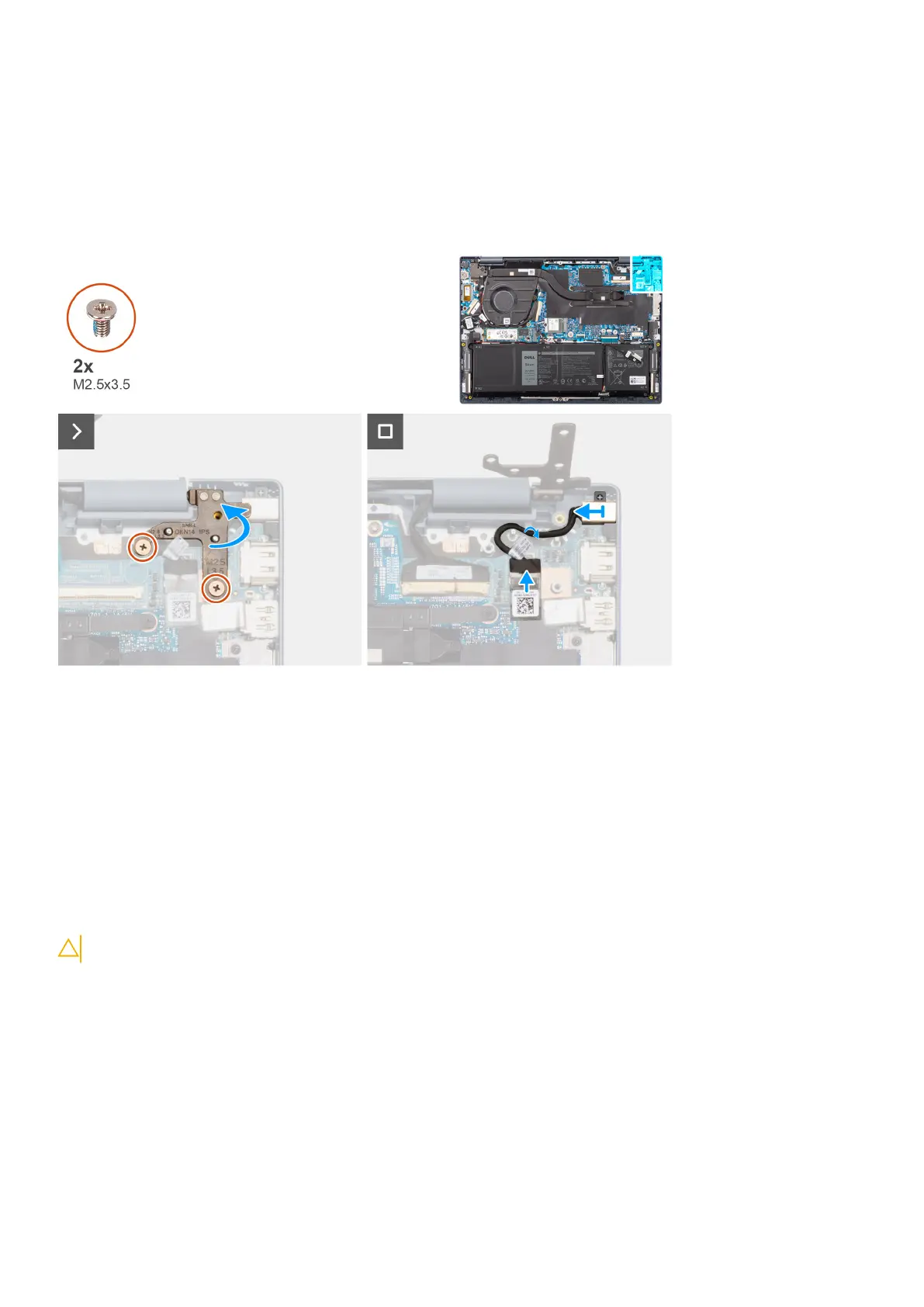

The following images indicate the location of the power-adapter port and provide a visual representation of the removal
procedure.
Steps
1. Remove the two screws (M2.5x3.5) that secure the right display hinge to the system board and the palm-rest and keyboard
assembly.
2. Using a plastic scribe, pry open the right display hinge upwards at an angle of 90 degrees.
3. Peel back the tape that secures the power-adapter port cable to the connector on the system board.
4. Disconnect the power-adapter port cable from the connector on the system board.
5. Remove the power-adapter port cable from the routing guide on the palm-rest and keyboard assembly.
6. Lift the power-adapter port, along with the cable, off the palm-rest and keyboard assembly.
Installing the power-adapter port
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power-adapter port and provide a visual representation of the installation
procedure.
60
Removing and installing Field Replaceable Units (FRUs)
