Steps
1. Remove the five screws (M2x3) that secure the 4-cell battery to the palm-rest and keyboard assembly.
2. Lift the 4-cell battery, along with the battery cable, off the palm-rest and keyboard assembly.
Installing the 4-cell battery
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

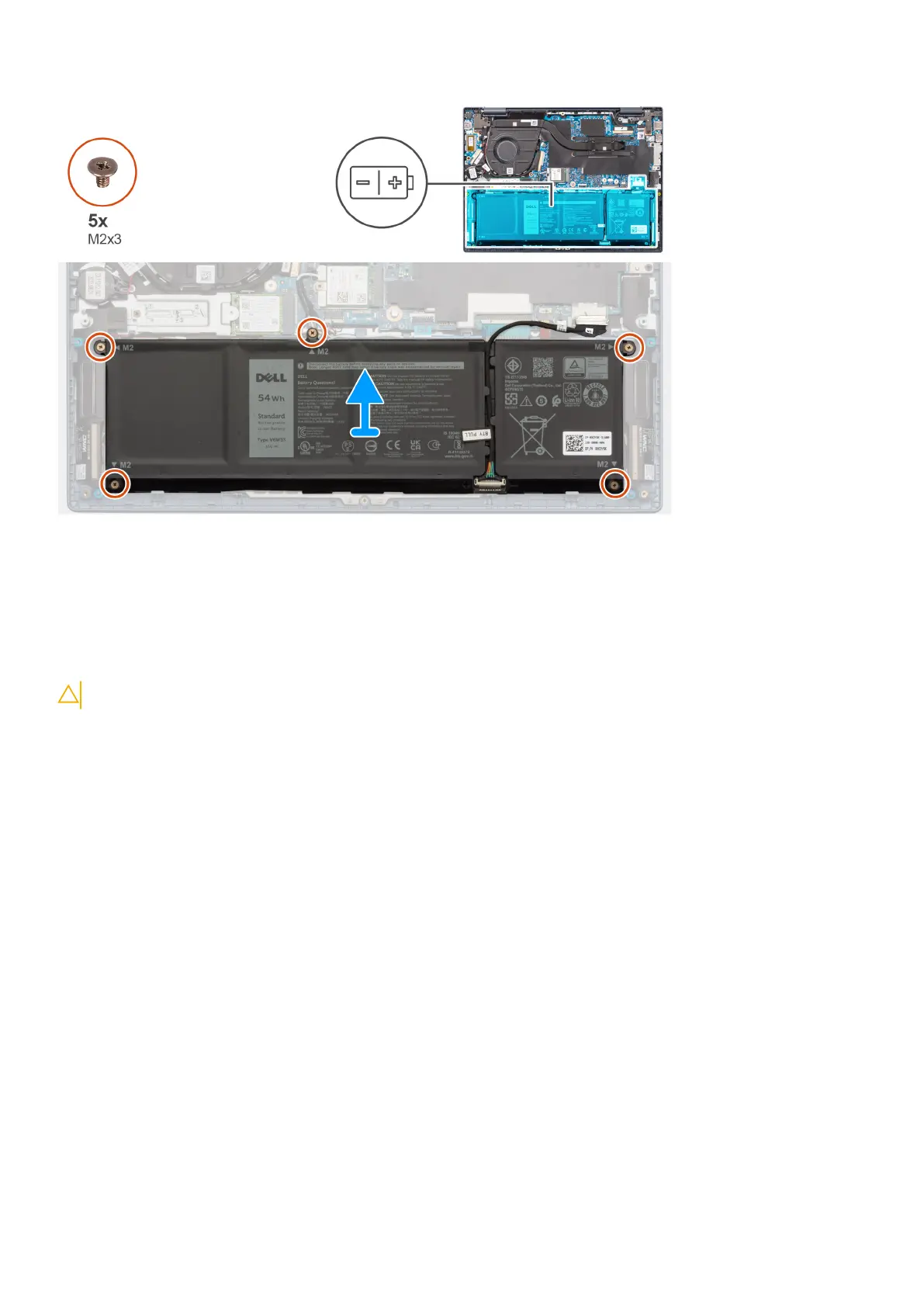

The following image indicates the location of the 4-cell battery and provides a visual representation of the installation procedure.
52
Removing and installing Field Replaceable Units (FRUs)
To Next Page
