Steps
1. Peel the tape that secures the camera cable to the to the display back cover.
2. Disconnect the camera cable from the camera.
3. Carefully pry up the camera module starting from the prying point at the bottom edge of the camera module.
4. Lift the camera module from the display back cover.
Installing the camera module
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the camera module and provide a visual representation of the installation
procedure.

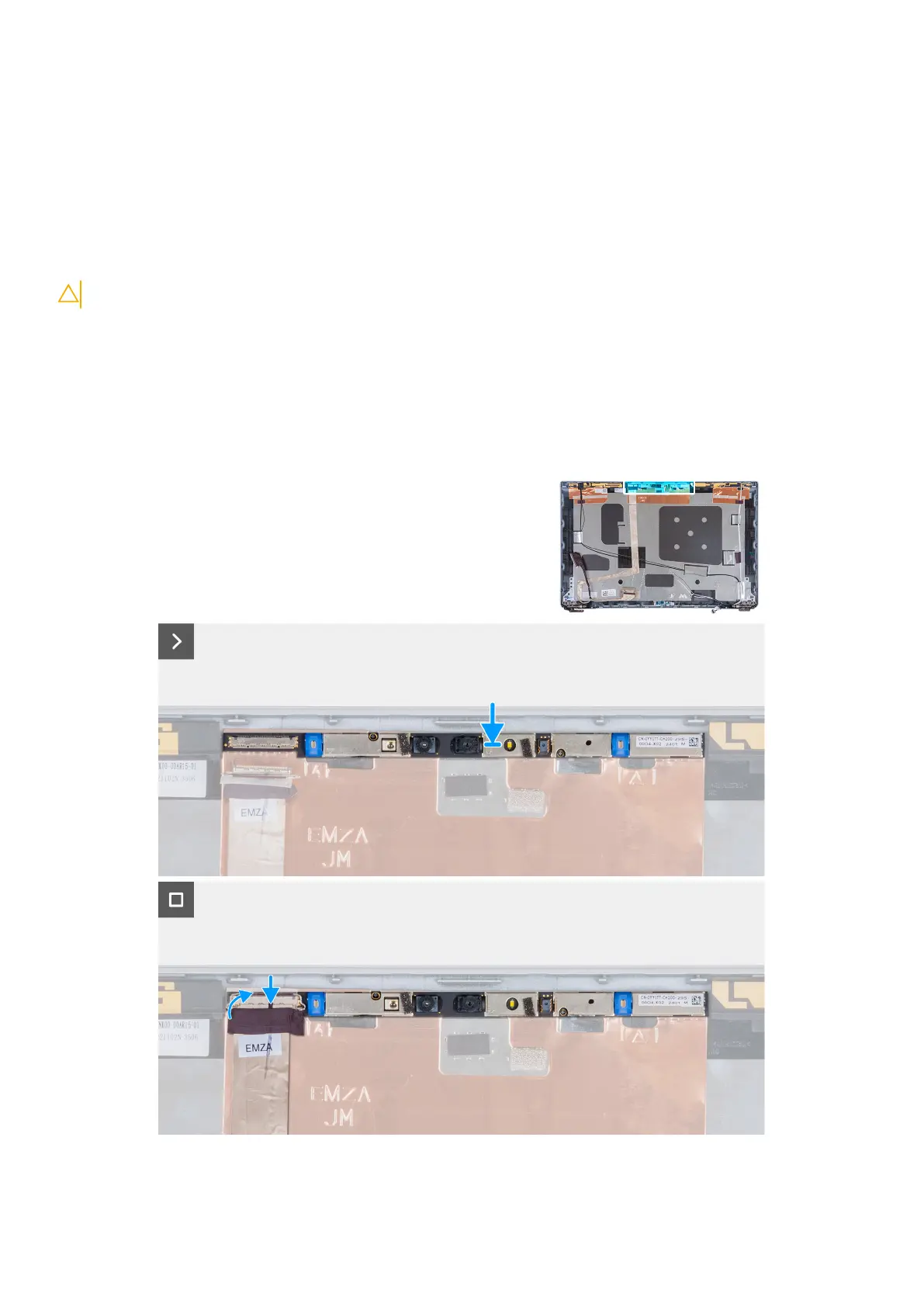

Figure 5. Installing the camera module
Removing and installing Field Replaceable Units (FRUs)
111
