Steps

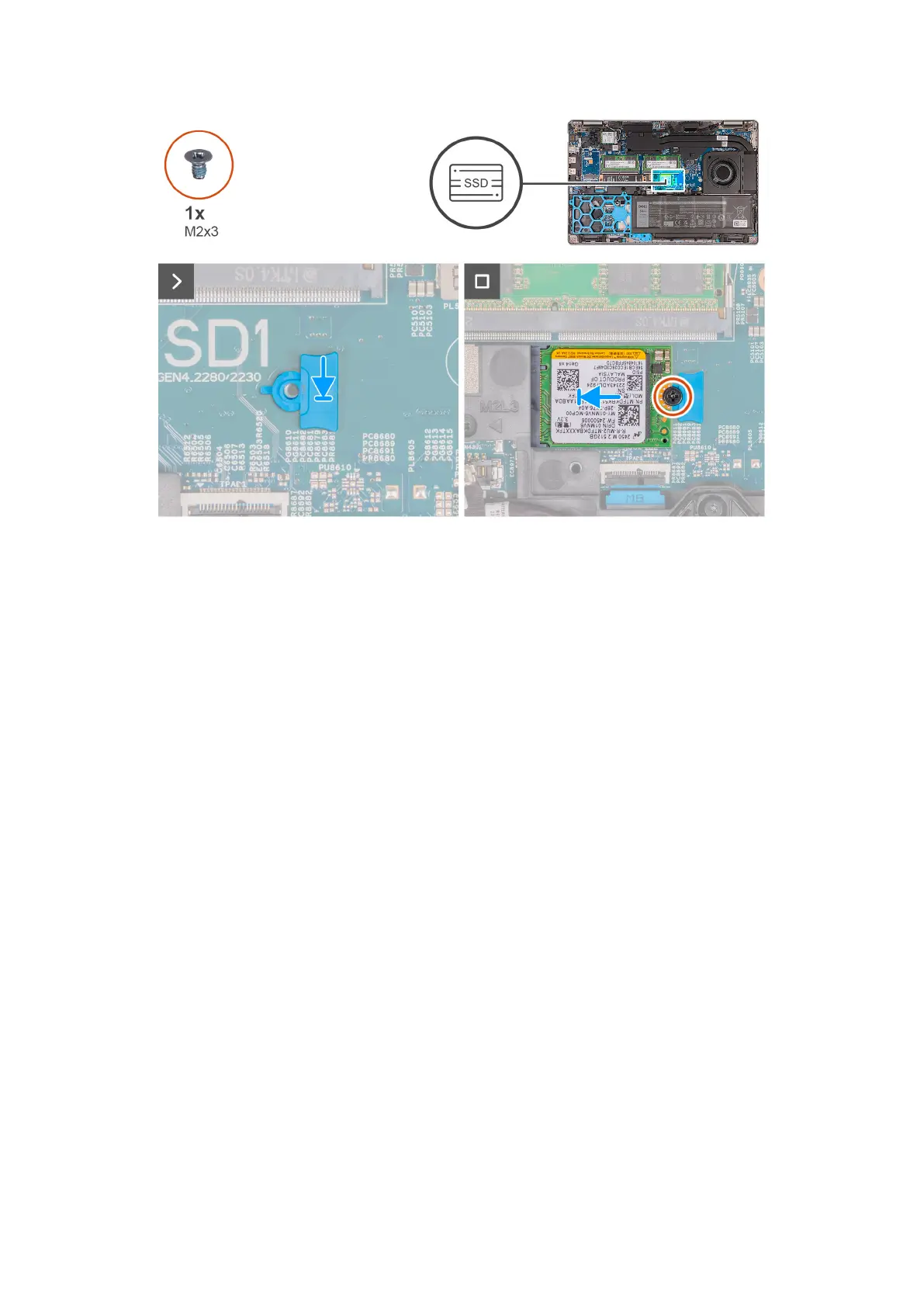

1. Place the M.2 2230 solid-state drive mounting bracket on its slot on the palm-rest assembly.
2. Align the notch on the M.2 2230 solid-state drive with the tab on the M.2 2230 solid-state drive slot.
3. Slide the M.2 2230 solid-state drive into the M.2 2230 solid-state drive slot.
4. Replace the screw (M2x3) that secures the M.2 2230 solid-state drive to the solid-state drive mounting bracket and
palm-rest assembly.
Next steps
1. Install the base cover.
2. Install the SIM card.
3. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive from Slot 1
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the base cover.
About this task
The following image(s) indicate the location of the M.2 2280 solid-state drive in Slot 1 and provides a visual representation of
the removal procedure.
60
Removing and installing Customer Replaceable Units (CRUs)
