About this task

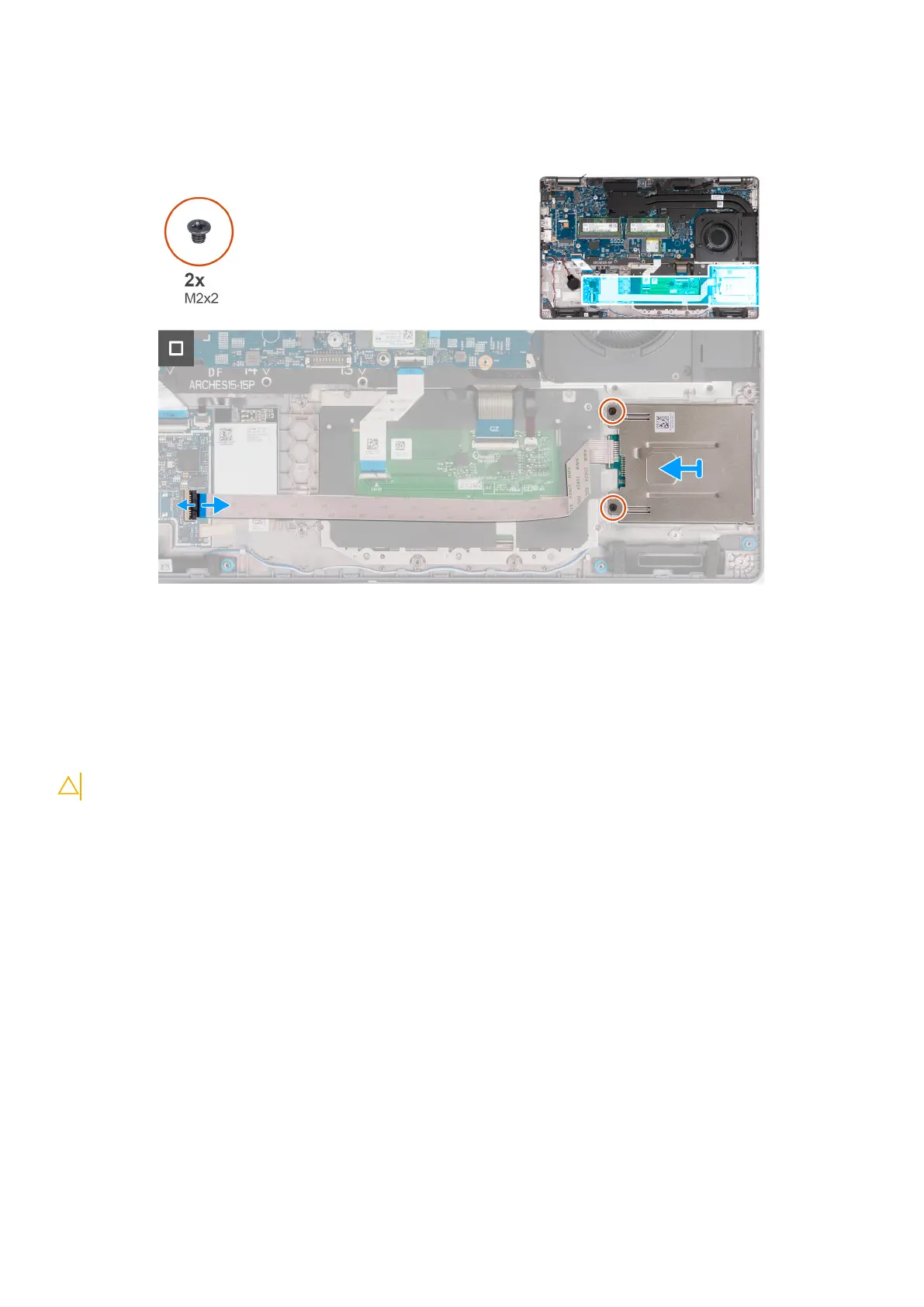

The following image(s) indicate the location of the smart-card reader and provides a visual representation of the removal
procedure.
Steps
1. Lift the latch and disconnect the smart-card reader cable from the connector on the USH board.
2. Remove the two screws (M2x2) that secure the smart-card reader to the palm-rest assembly.
3. Lift the smart-card reader, along with its cable, off the palm-rest assembly.
Installing the smart-card reader
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the smart card reader and provide a visual representation of the installation
procedure.
Removing and installing Field Replaceable Units (FRUs)
121
