5. Replace the screw (M2x3) that secures the 4G WWAN bracket to the 4G WWAN card.
6. Align and place the 4G WWAN-card shield over the 4G WWAN card.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the 5G WWAN card (Optional)
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: The following steps are for computers with WWAN support.

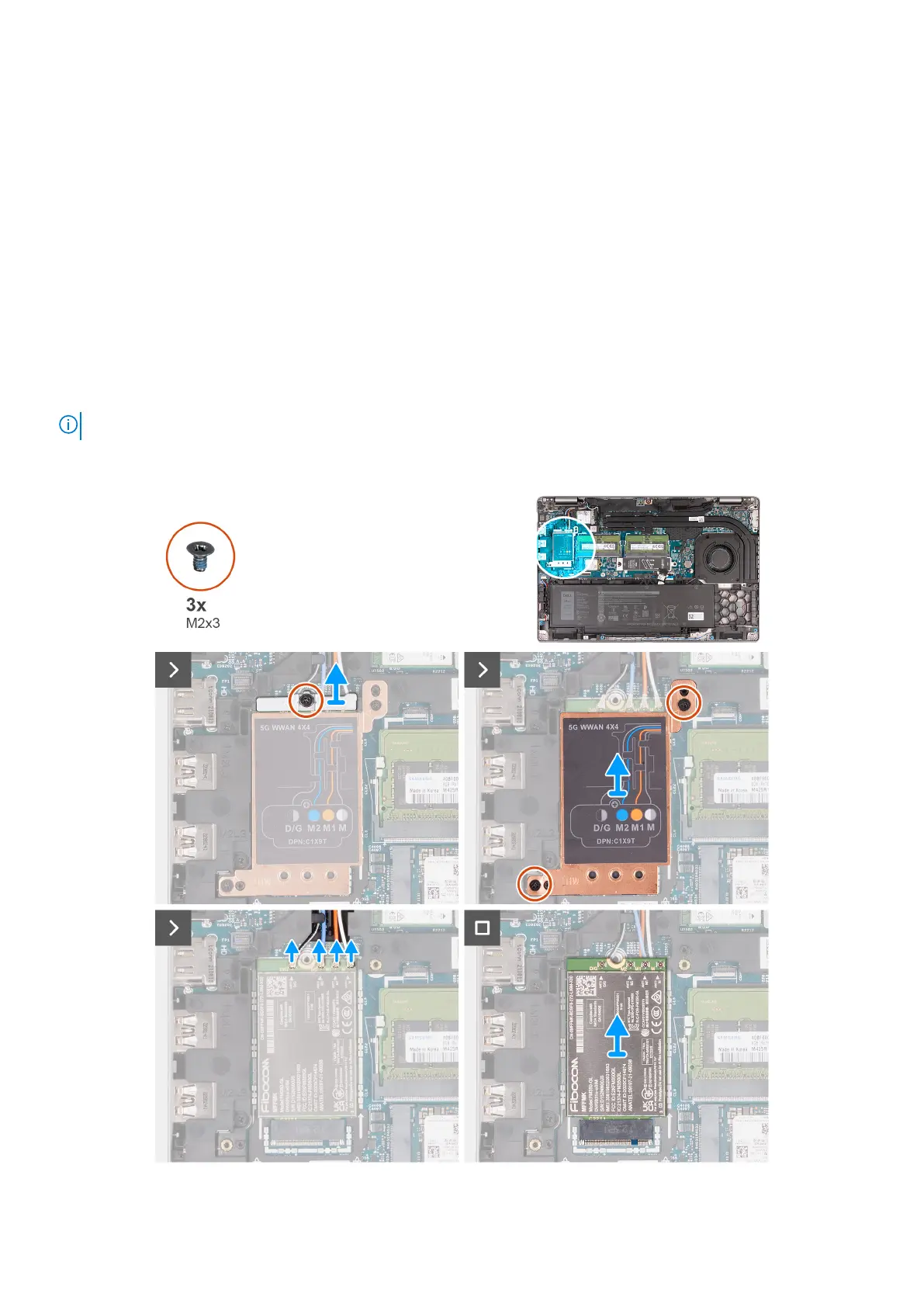

The following image(s) indicate the location of the 5G WWAN card and provides a visual representation of the removal
procedure.
54 Removing and installing Customer Replaceable Units (CRUs)
