Steps
1. Remove the screw (M2x3) that secures the 5G WWAN-card bracket to the 5G WWAN card.
2. Lift the 5G WWAN-card bracket off the 5G WWAN card.
3. Remove the two screws (M2x3) that secure the 5G WWAN-card shield to the palm-rest and keyboard assembly.
4. Lift the 5G WWAN-card shield off the 5G WWAN card.
5. Disconnect the antenna cables from the 5G WWAN card.
6. Slide and remove the 5G WWAN card off the 5G WWAN-card slot on the system board.
Installing the 5G WWAN card (Optional)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: The following steps are for computers with WWAN support.

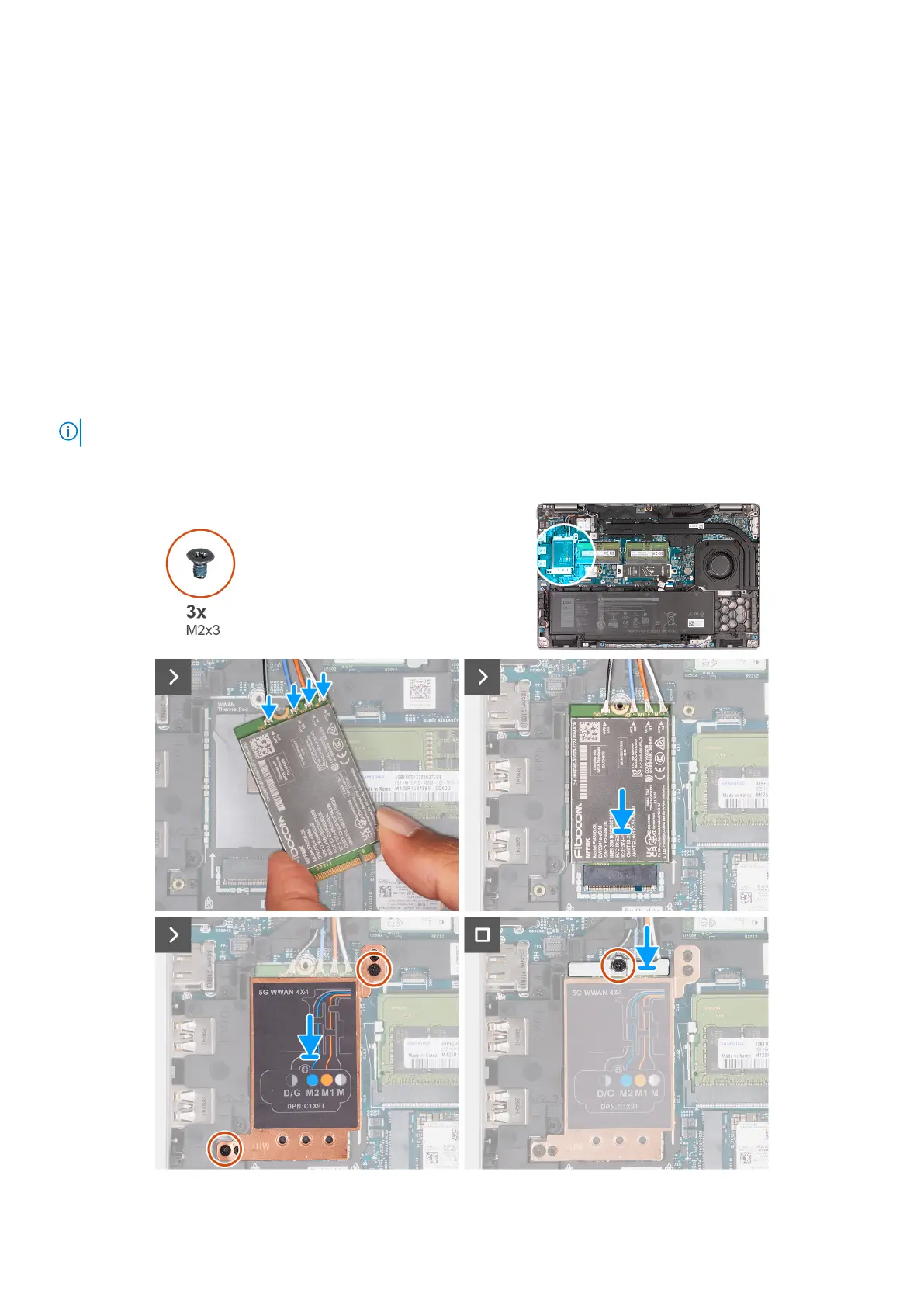

The following image(s) indicate the location of the 5G WWAN card and provides a visual representation of the installation
procedure.
Removing and installing Customer Replaceable Units (CRUs) 55
