Installing the WLAN card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

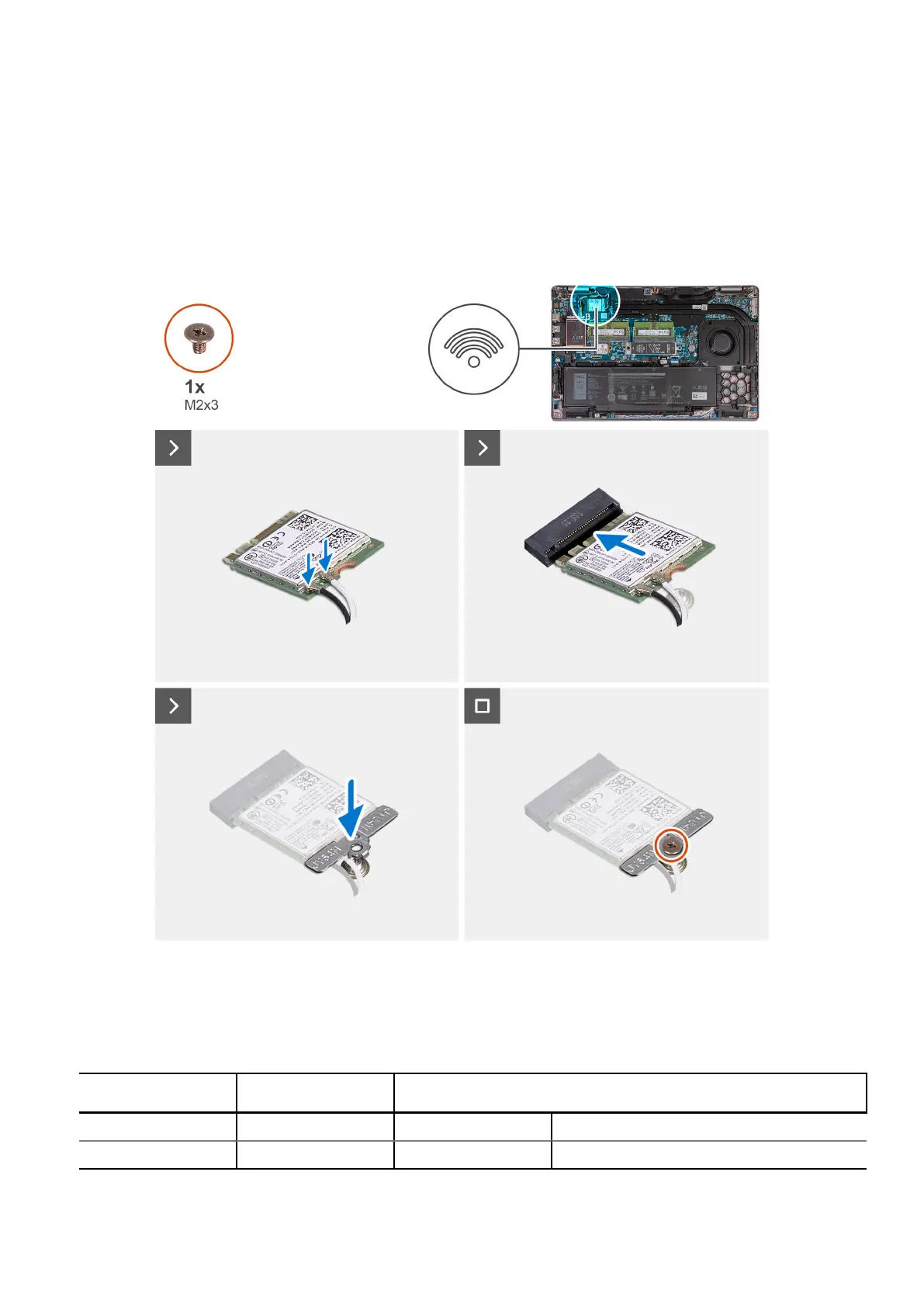

The following image(s) indicate the location of the WLAN card and provides a visual representation of the installation procedure.
Steps
1. Connect the antenna cables to the WLAN card.
The following table provides the antenna-cable color scheme for the WLAN card that is supported by your computer.
Table 33. Antenna-cable color scheme
Connectors on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Auxiliary Black AUX ▲ (black triangle)
50 Removing and installing Customer Replaceable Units (CRUs)
