Installing the WWAN card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

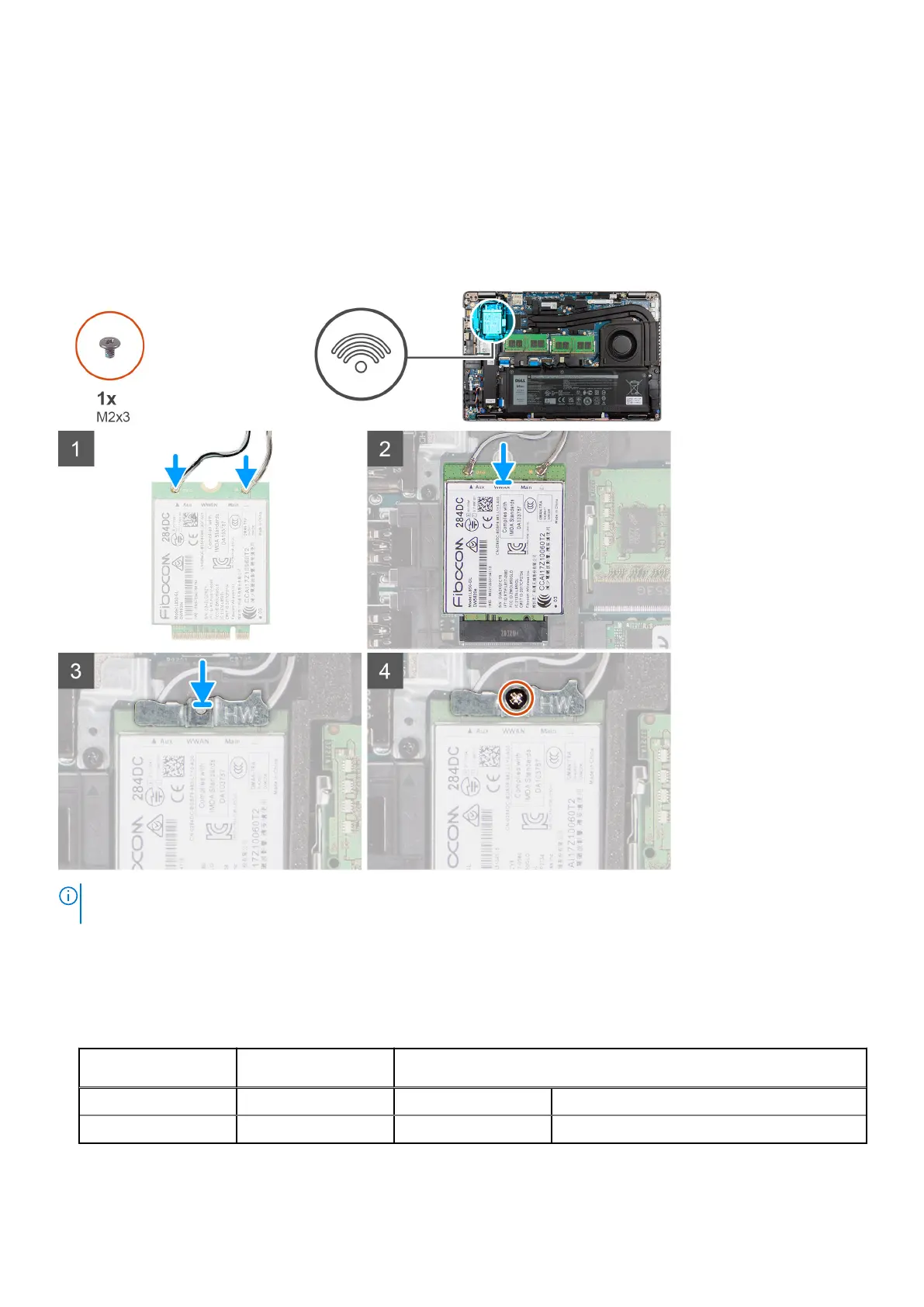

The following image indicates the location of the WWAN card and provides a visual representation of the installation procedure.
NOTE: For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, see
the knowledge base article 000143678 at www.dell.com/support.
Steps
1. Connect the antenna cables to the WWAN card.
The following table provides the antenna-cable color scheme:
Table 3. Antenna-cable color scheme
Connectors on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Auxiliary Black AUX ▲ (black triangle)
2. Align the notch on the WWAN card and slide the WWAN card at an angle into the WWAN-card slot.
