About this task

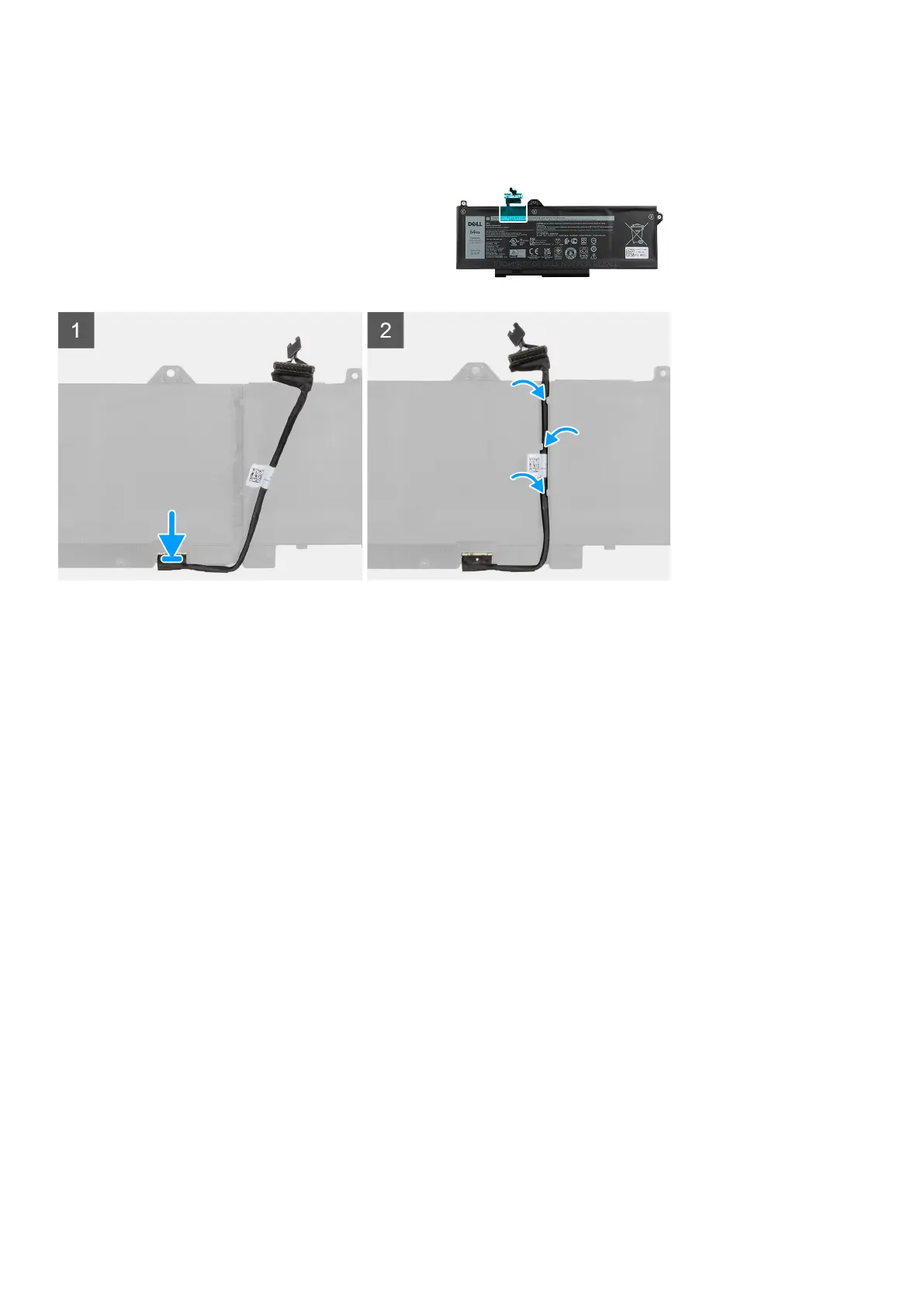

The following image indicates the location of the battery cable and provides a visual representation of the installation procedure.
Steps
1. Align and place the battery cable on the battery.
2. Route the battery cable through the routing guides on the battery.
3. Connect the battery cable to the connector on the battery.
Next steps
1. Install the battery.
2. Install the base cover.
3. Install the microSD card.
4. Install the SIM card.
5. Exit Service Mode.
6. Follow the procedure in After working inside your computer.
Assembly inner frame
Removing the assembly inner frame
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the SIM card.
3. Remove the microSD card.
4. Remove the base cover.
5. Remove the battery.
6. Remove the 2280 solid-state drive or 2230 solid-state drive.
7. Remove the WLAN card.
8. Remove the WWAN card.
Removing and installing components
37
To Next Page
