Steps

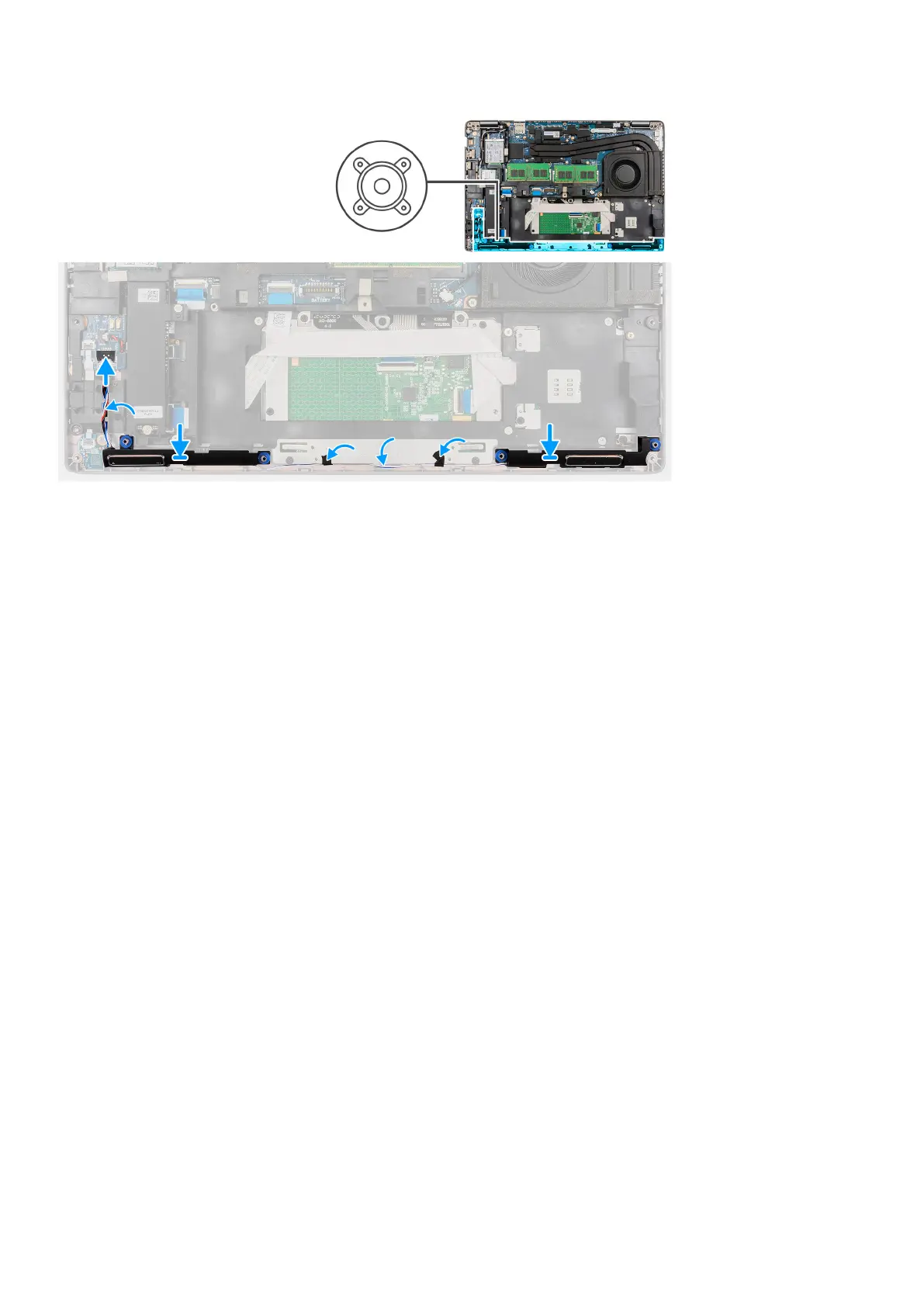

1. Using the alignment posts and rubber grommets, place the speakers on the slots of the palm-rest and keyboard assembly.
2. Connect the speaker cable to the system board.
3. Route the speaker cable through the bottom-left corner of the system and ensure that the speaker cables are routed firmly
into the routing channels on the inner frame.
Next steps
1. Install the battery.
2. Install the microSD card.
3. Install the SIM card.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
USB type-C bracket
Removing the USB type-C bracket
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
6. Remove the heat sink - UMA or discrete based on the system configuration.
About this task
The following images indicate the location of the USB type-C bracket and provide a visual representation of the removal
procedure.
