Dell P137G001 Service Manual

12. Replace the two screws (M2x3) that secure the eDP cable bracket to the system board.
Next steps
1. Install the WWAN card.
2. Install the WLAN card.
3. Install the base cover.
4. Install the microSD card.
5. Install the SIM card.
6. Exit Service Mode.
7. Follow the procedure in After working inside your computer.
Display bezel
Removing the display bezel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the display assembly.
About this task

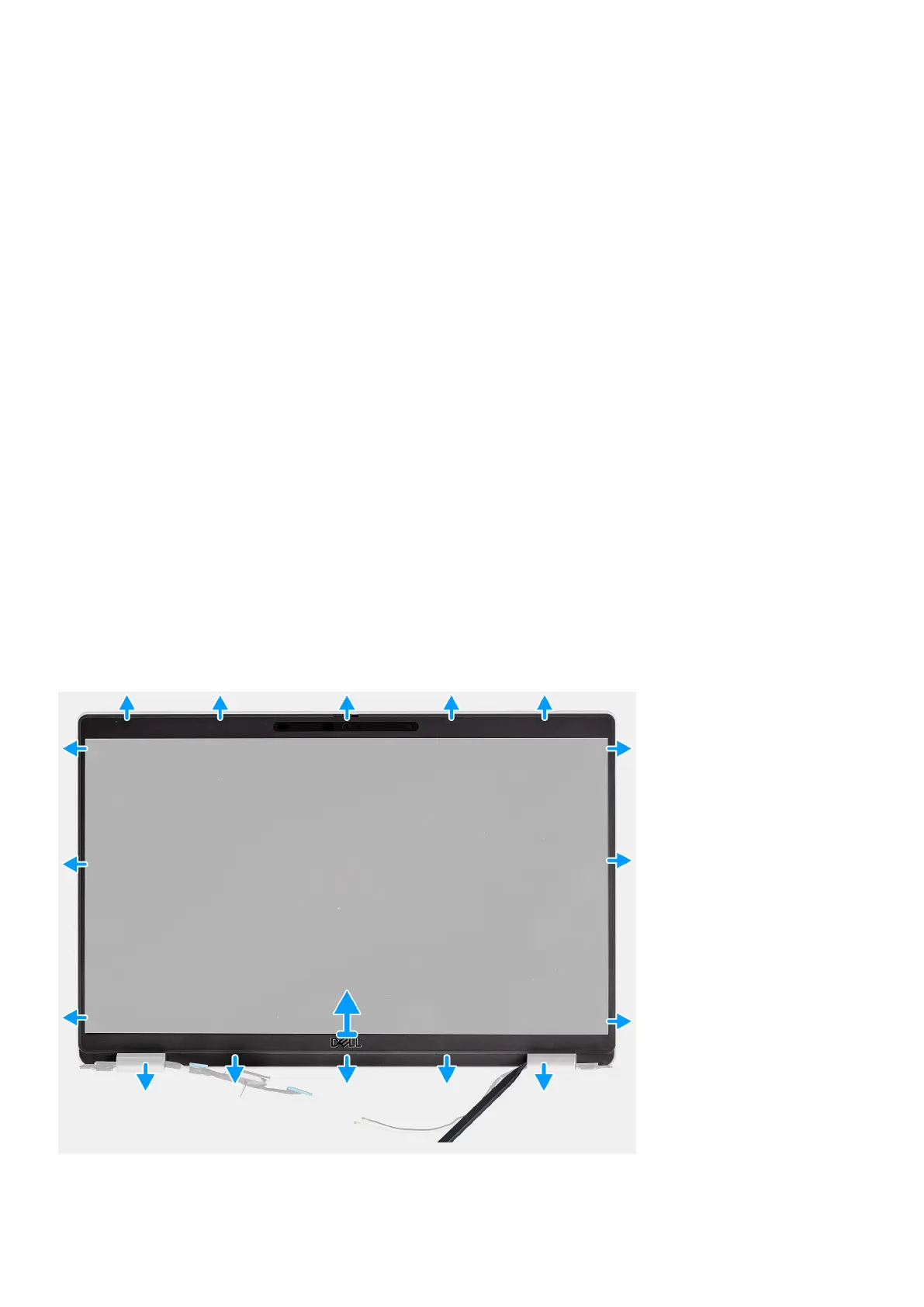

The following images indicate the location of the display bezel and provide a visual representation of the removal procedure.
Removing and installing components
75
