Installing the display back cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

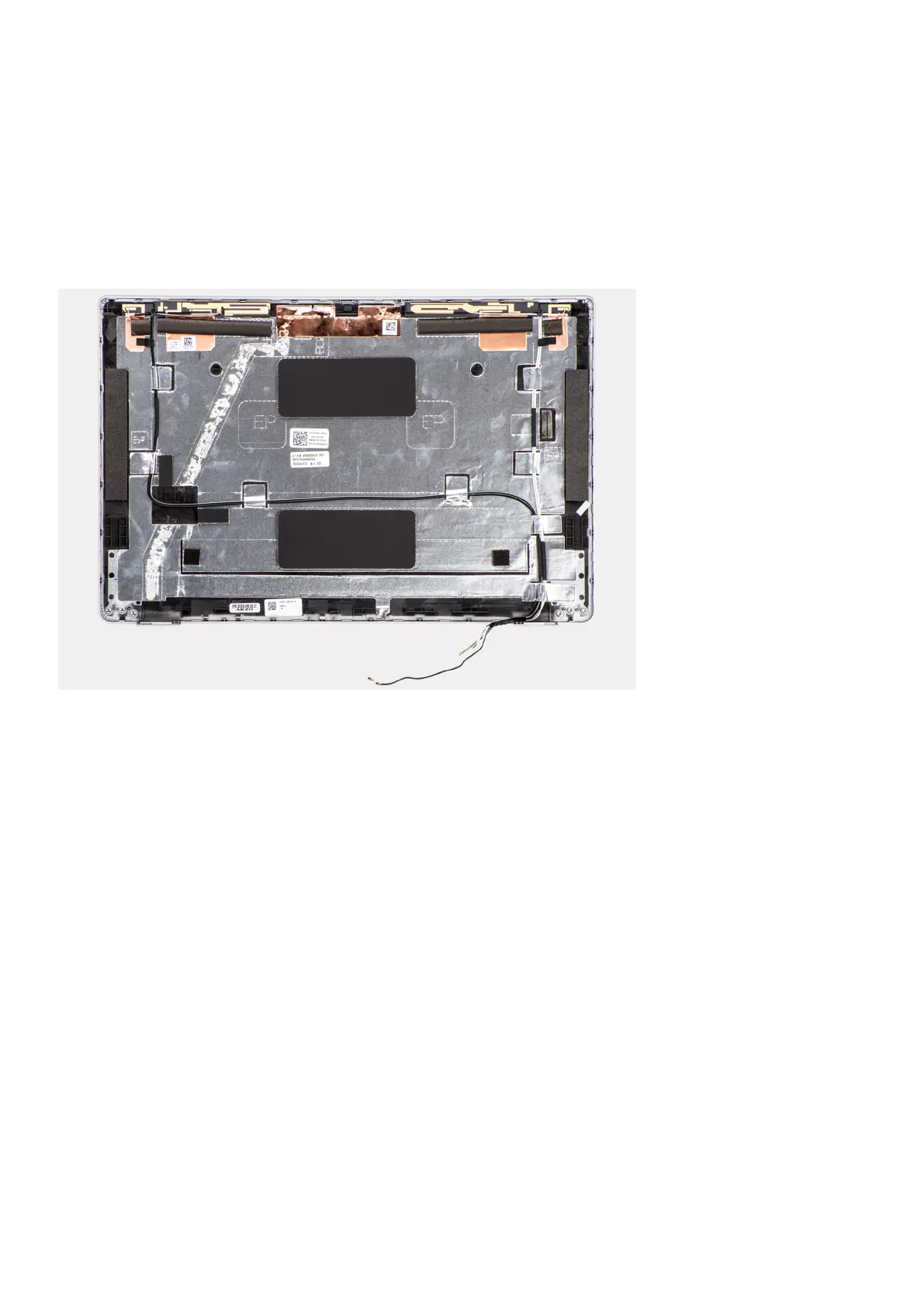

The following image indicates the location of the display back cover and provides a visual representation of the installation
procedure.
Steps
Place the display back cover on a flat surface.
Next steps
1. Install the display hinges.
2. Install the sensor board.
3. Install the eDP/display cable.
4. Install the camera/microphone module.
5. Install the display panel.
6. Install the display bezel.
7. Install the display assembly.
8. Install the WWAN card.
9. Install the WLAN card.
10. Install the base cover.
11. Install the microSD card.
12. Install the SIM card.
13. Exit Service Mode.
14. Follow the procedure in After working inside your computer.
96
Removing and installing components
