About this task

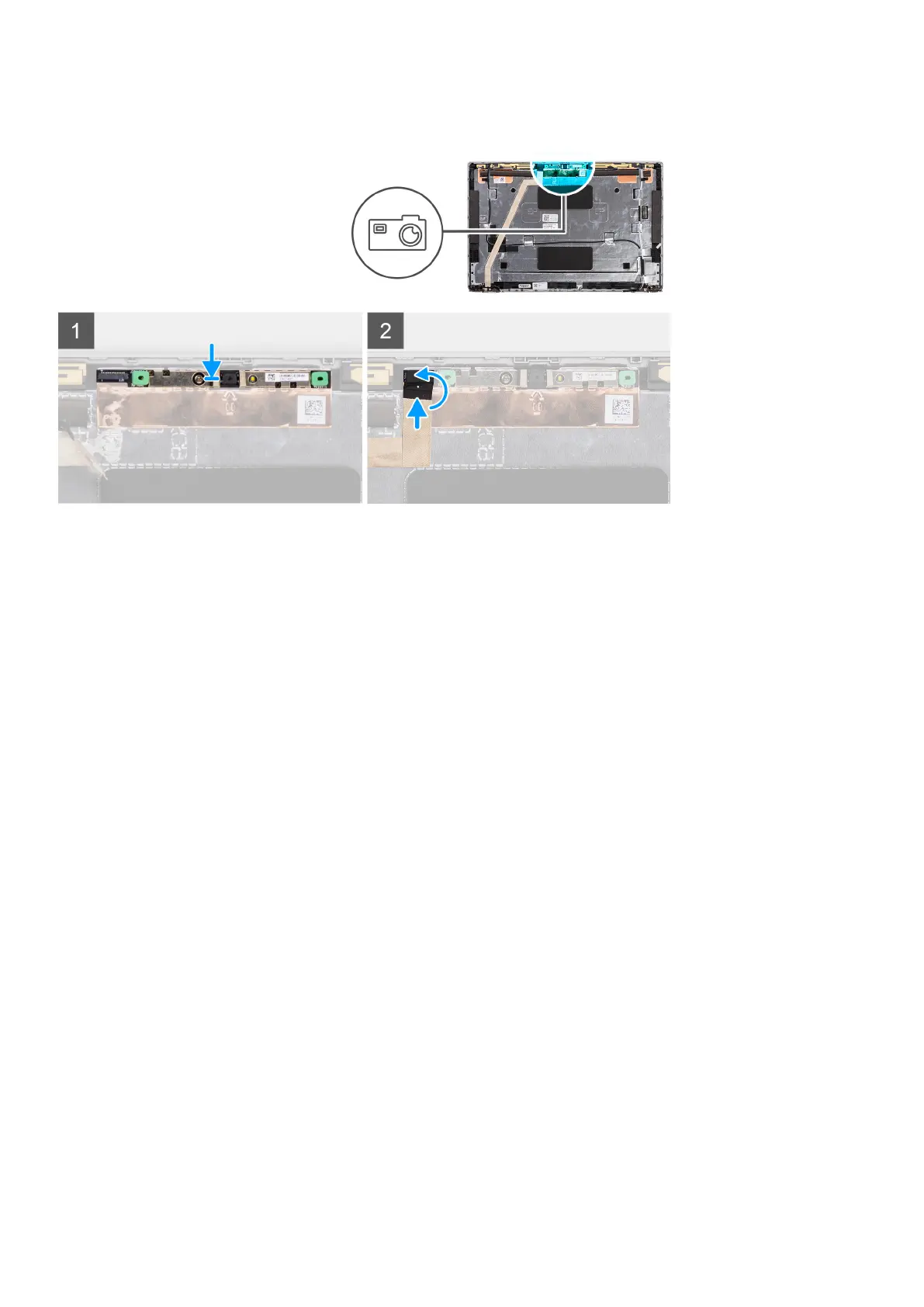

The following image indicates the location of the camera and provides a visual representation of the installation procedure.
Steps
1. Align and place the camera module into the slot on the display back cover.
2. Connect the camera cable to the connector on the camera module.
3. Adhere the tape to secure the camera cable in place.
Next steps
1. Install the display hinges.
2. Install the display panel.
3. Install the display bezel.
4. Install the display assembly.
5. Install the base cover.
6. Install the microSD card.
7. Install the SIM card.
8. Exit Service Mode.
9. Follow the procedure in After working inside your computer.
Removing the infrared camera
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
6. Remove the display assembly.
7. Remove the display bezel.
8. Remove the display panel.
9. Remove the display hinges.
About this task
The following images indicate the location of the infrared camera module and provide a visual representation of the removal
procedure.
86
Removing and installing components
