Steps

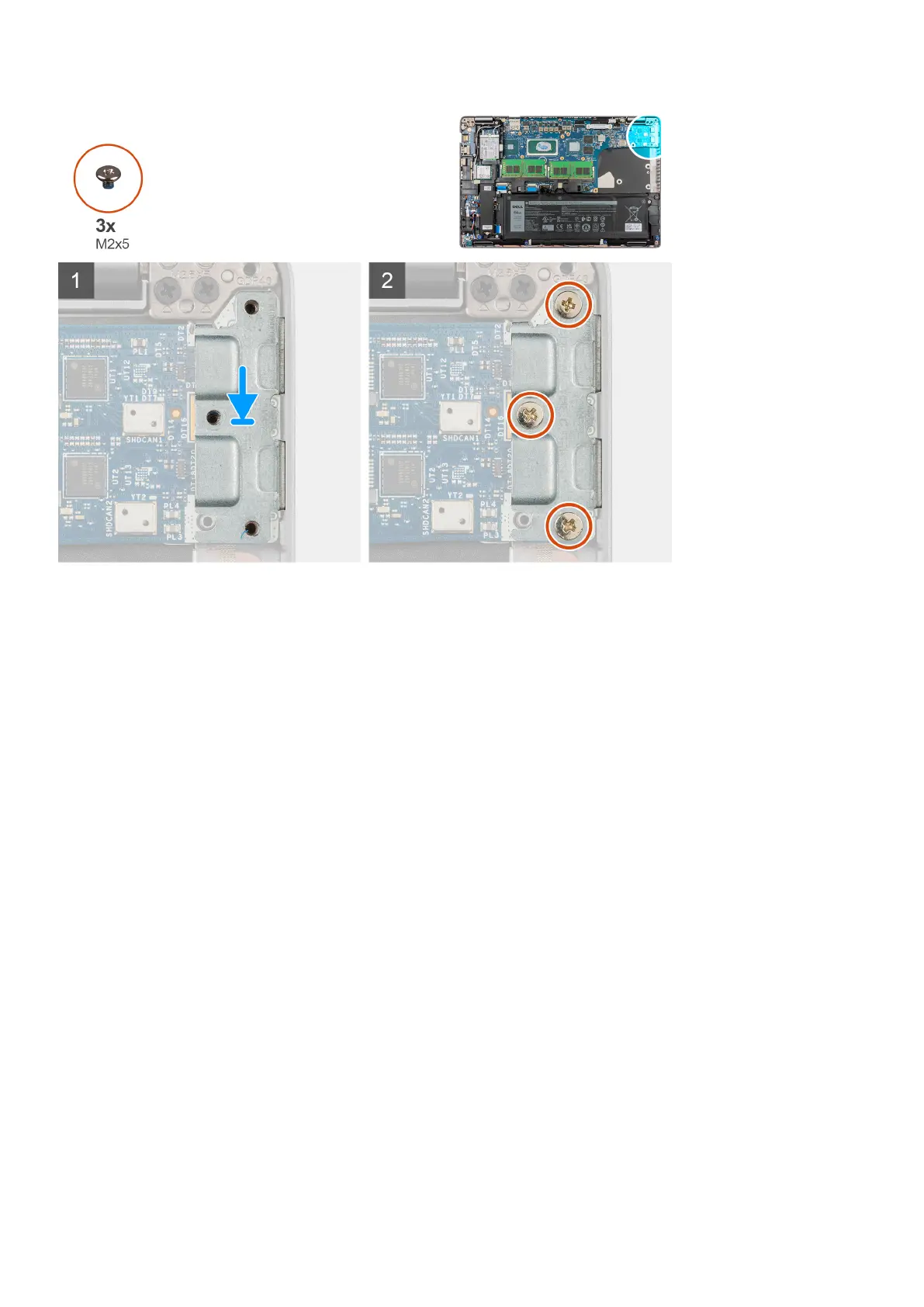

1. Place the USB type-C bracket on the system board and align the holes of the bracket and the system board.
2. Replace the three (M2x5) screws to secure the USB type-C bracket to the system board.
Next steps
1. Install the heat sink - UMA or discrete based on the system configuration.
2. Install the base cover.
3. Install the microSD card.
4. Install the SIM card.
5. Exit Service Mode.
6. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
6. Remove the memory module.
7. Remove the 2280 solid-state drive or 2230 solid-state drive.
8. Remove the WLAN card.
9. Remove the WWAN card.
10. Remove the battery.
11. Remove the heat sink - UMA or discrete based on the system configuration.
