Steps

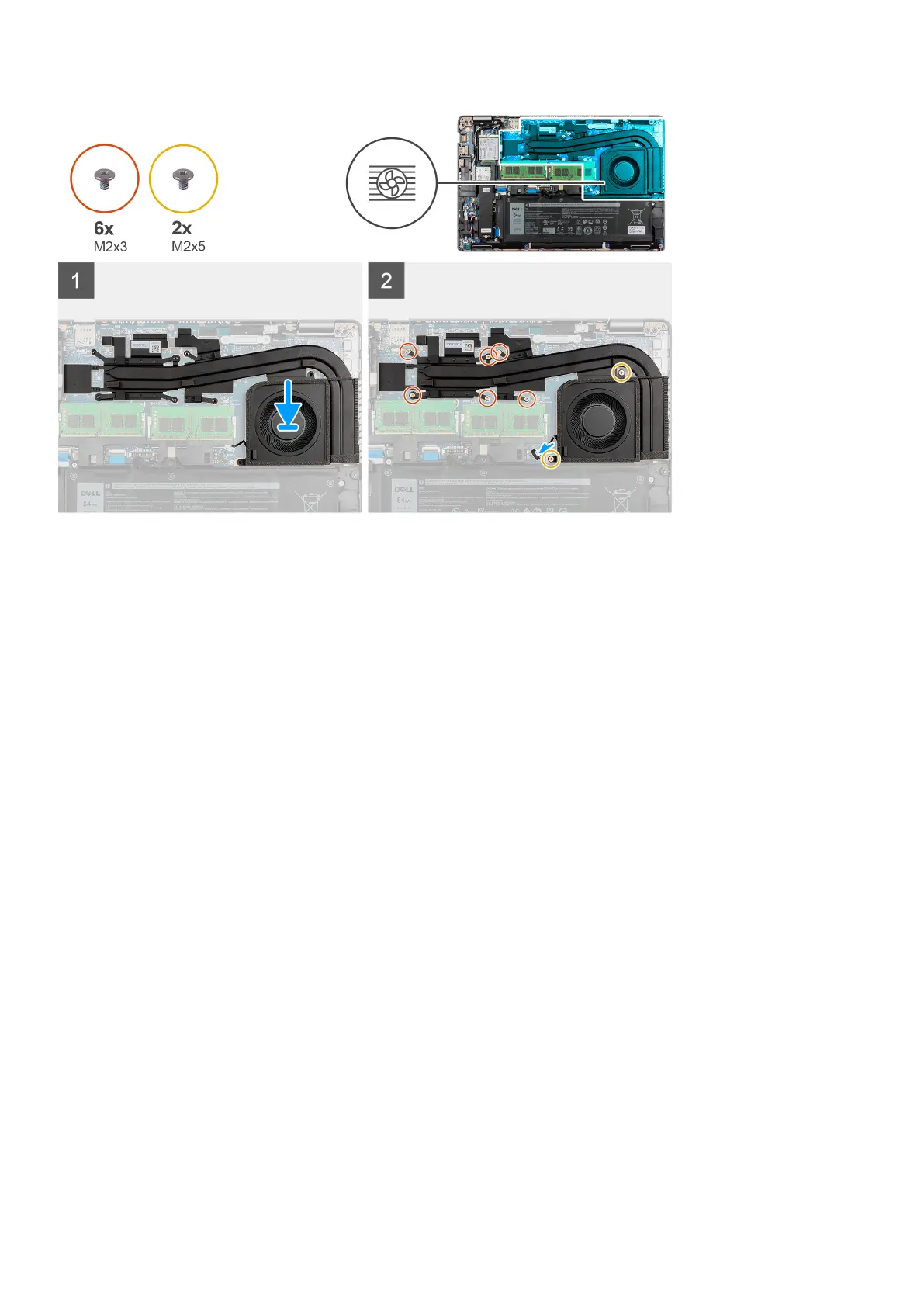

1. Align the screw holes on the heat sink and fan assembly with the screw holes on the system board.
2. In sequential order (as indicated on the heat sink), tighten the six (M2x3) and two (M2x5) screws that secure the heat sink
and fan assembly to the system board.
Next steps
1. Install the microSD card.
2. Install the SIM card.
3. Install the base cover.
4. Exit Service Mode.
5. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the microSD card.
4. Remove the SIM card.
5. Remove the battery.
About this task
The following images indicate the location of the speakers and provide a visual representation of the removal procedure.
46
Removing and installing components
