Steps

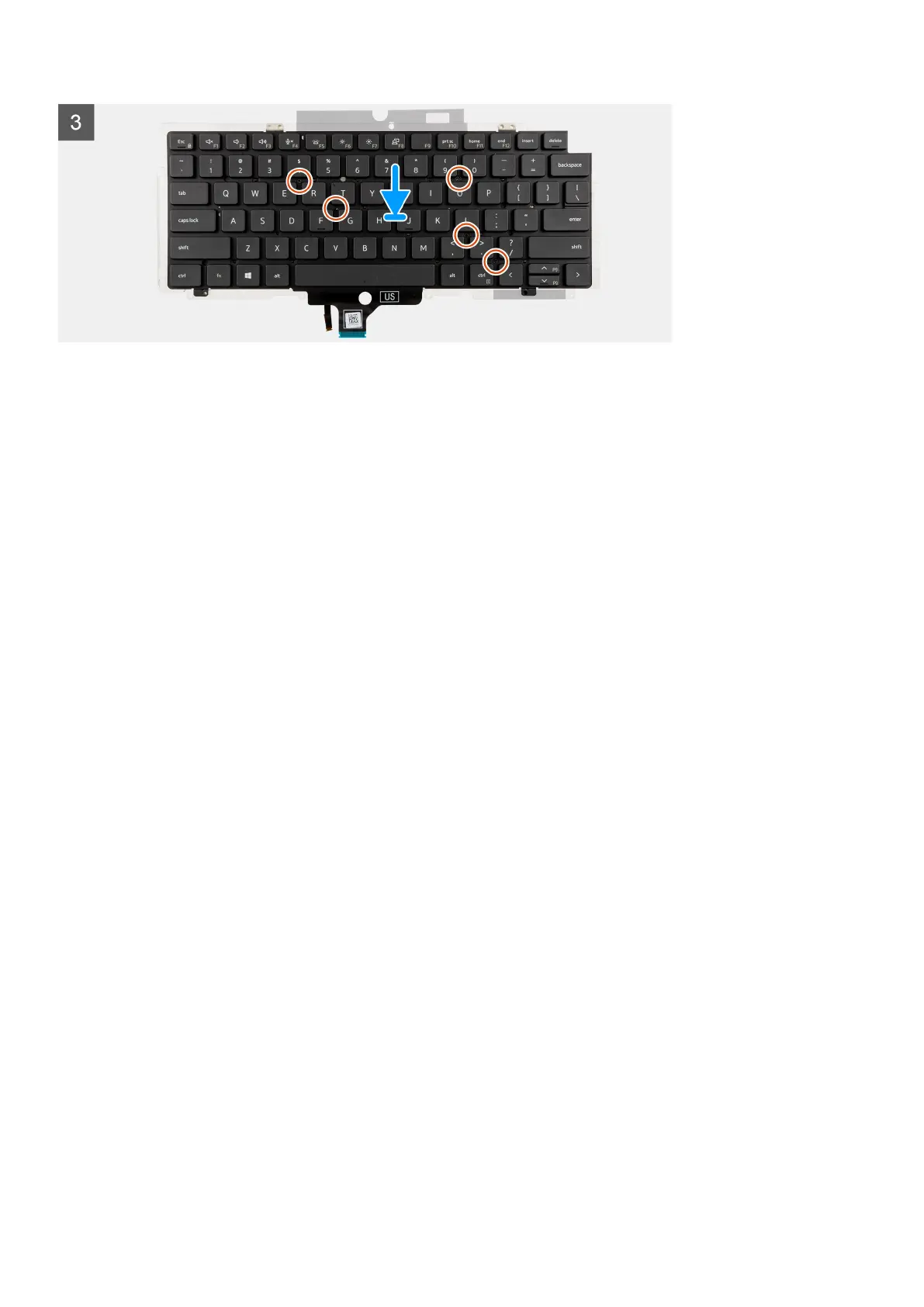

1. Align and place the keyboard on the keyboard bracket.
2. Replace the five (M2x2) screws to secure the keyboard to the keyboard bracket.
Next steps
1. Install the keyboard assembly.
2. Install the system board.
3. Install the assembly inner frame.
4. Install the heat sink - UMA or discrete based on the system configuration.
5. Install the battery.
6. Install the WWAN card.
7. Install the WLAN card.
8. Install the 2280 solid-state drive or 2230 solid-state drive.
9. Install the memory module.
10. Install the base cover.
11. Install the microSD card.
12. Install the SIM card.
13. Exit Service Mode.
14. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
6. Remove the WLAN card.
7. Remove the WWAN card.
About this task
The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
Removing and installing components
69
