Dell P137G001 Service Manual

Display back cover
Removing the display back cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the display assembly.
9. Remove the display bezel.
10. Remove the display panel.
11. Remove the camera/microphone module.
12. Remove the eDP/display cable.
13. Remove the sensor board.
14. Remove the display hinges.
About this task

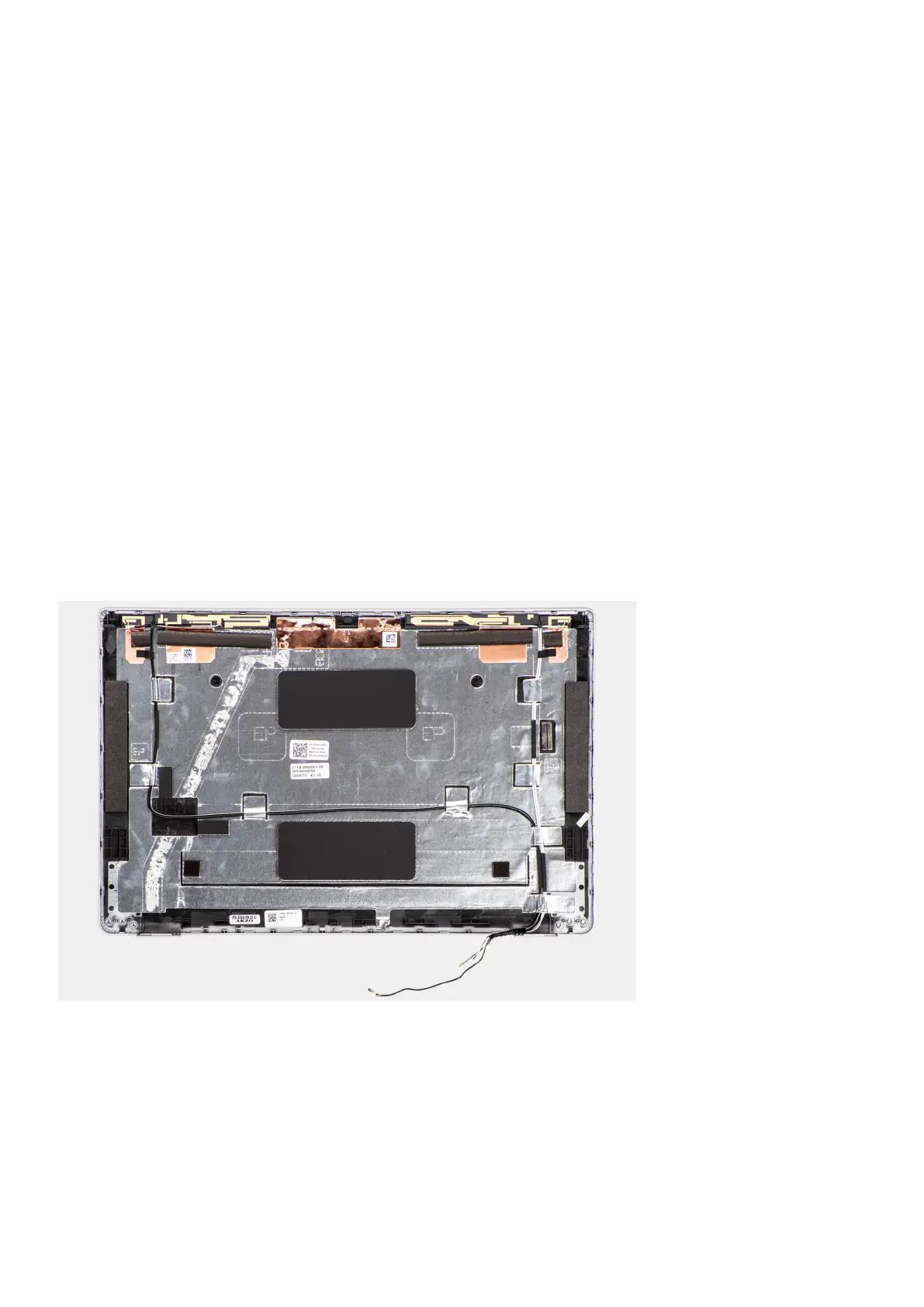

The following images indicate the location of the display back cover and provide a visual representation of the removal
procedure.
Steps
After performing the steps in the pre-requisites, we are left with the display back cover.
Removing and installing components
95
