Steps

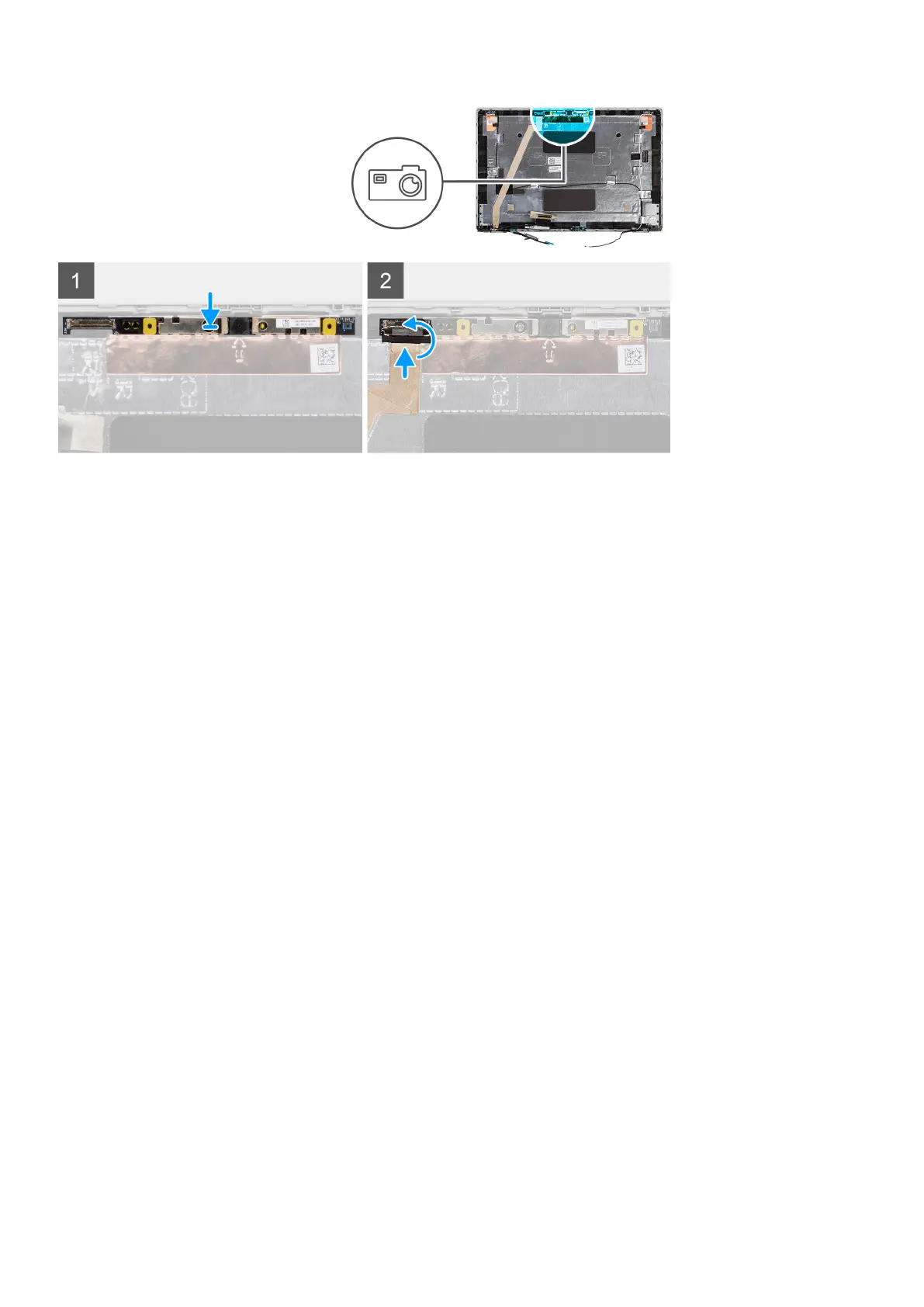

1. Align and place the infrared camera module into the slot on the display back cover.
2. Connect the infrared camera cable to the connector on the camera module.
3. Adhere the tape to secure the infrared camera cable in place.
Next steps
1. Install the display hinges.
2. Install the display panel.
3. Install the display bezel.
4. Install the display assembly.
5. Install the base cover.
6. Install the microSD card.
7. Install the SIM card.
8. Exit Service Mode.
9. Follow the procedure in After working inside your computer.
eDP/display cable
Removing the eDP cable
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the SIM card.
4. Remove the microSD card.
5. Remove the base cover.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the display assembly.
9. Remove the display bezel.
10. Remove the display panel.
