Dell PowerEdge R810 User Manual

Installing System Components 113

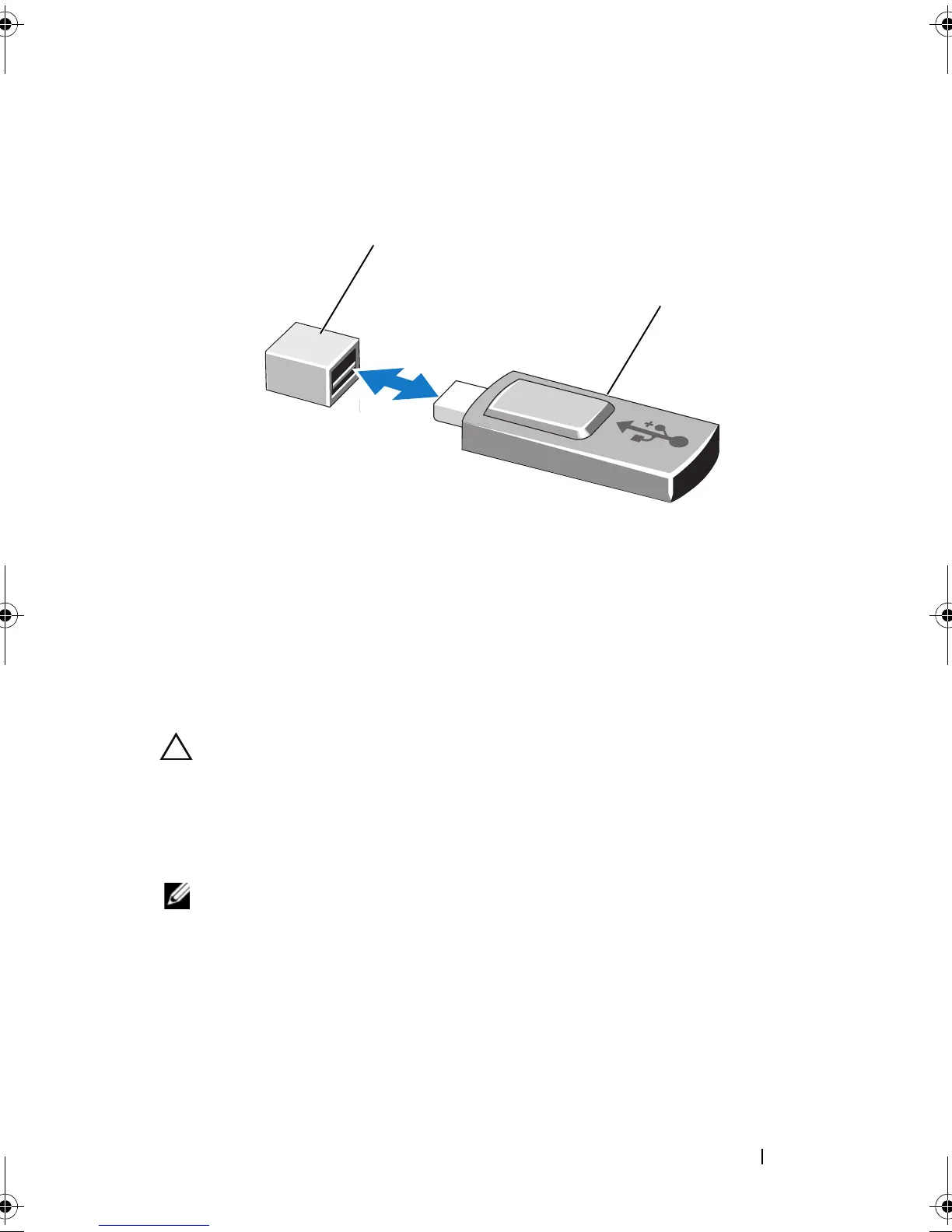

Figure 3-14. Removing and Installing a USB Memory Key
Internal NIC Hardware Key
Any additional future functionalities for the system’s integrated NICs are
enabled by installing an optional NIC hardware key in the iSCSI KEY socket
on the system board. See Figure 6-1.
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
NOTE: TOE operating system support and the Microsoft
®
scalable network pack
are required for TOE functionality.
1 Turn off the system, including any attached peripherals, and disconnect
the system from its electrical outlet.
2 Open the system. See "Opening the System" on page 84.
3 Locate the ISCSI KEY connector on the system board. See Figure 6-1.
4 Insert the NIC hardware key into the connector onto the board. See
Figure 3-15.
1 USB memory key connector 2 USB memory key
1
2
book.book Page 113 Thursday, February 18, 2010 2:06 PM

Dell PowerEdge R810 Specifications

General

Form Factor	2U rack server
Chipset	Intel 7500 chipset
Memory Slots	32 DIMM slots
Processor	Up to four Intel Xeon 6500/7500 series processors
Memory	Up to 512GB (32 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3
Storage	Up to six 2.5" SAS or SATA drives
RAID Controller	PERC H700, PERC H800
Network	Four embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NICs
Power Supply	Redundant 1100W or 750W AC power supplies
Expansion Slots	6 x PCIe Gen2 slots (3 x x8, 3 x x16)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
