Dell PowerEdge R810 User Manual

Installing System Components 85

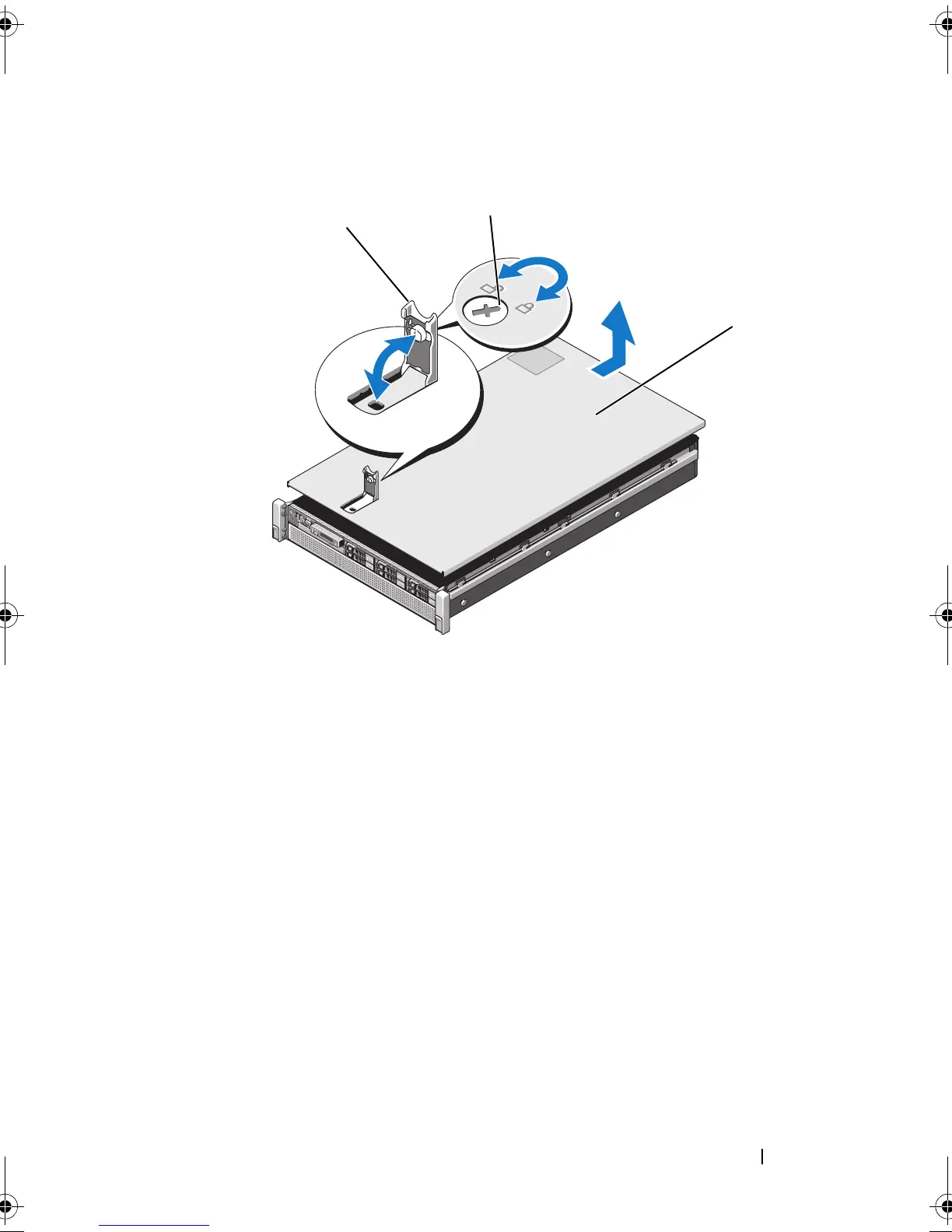

Figure 3-3. Opening and Closing the System
Closing the System
1 Place the cover onto the chassis and offset it slightly toward the back of the
system, so that the slots on the sides of the cover fit into the corresponding
hooks on the sides of the chassis. See Figure 3-3.
2 Slide the cover toward the front of the chassis till it snaps in position.
3 Push down the latch to secure the cover into the closed position.
4 Rotate the latch release lock in the clockwise direction to secure the cover.
1 latch 2 latch release lock
3cover
1
2
3
book.book Page 85 Thursday, February 18, 2010 2:06 PM

Dell PowerEdge R810 Specifications

General

Form Factor	2U rack server
Chipset	Intel 7500 chipset
Memory Slots	32 DIMM slots
Processor	Up to four Intel Xeon 6500/7500 series processors
Memory	Up to 512GB (32 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3
Storage	Up to six 2.5" SAS or SATA drives
RAID Controller	PERC H700, PERC H800
Network	Four embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NICs
Power Supply	Redundant 1100W or 750W AC power supplies
Expansion Slots	6 x PCIe Gen2 slots (3 x x8, 3 x x16)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
