Dell PowerEdge R810 User Manual

Jumpers and Connectors 191
Expansion-Card Riser-Board Components and
PCIe Buses

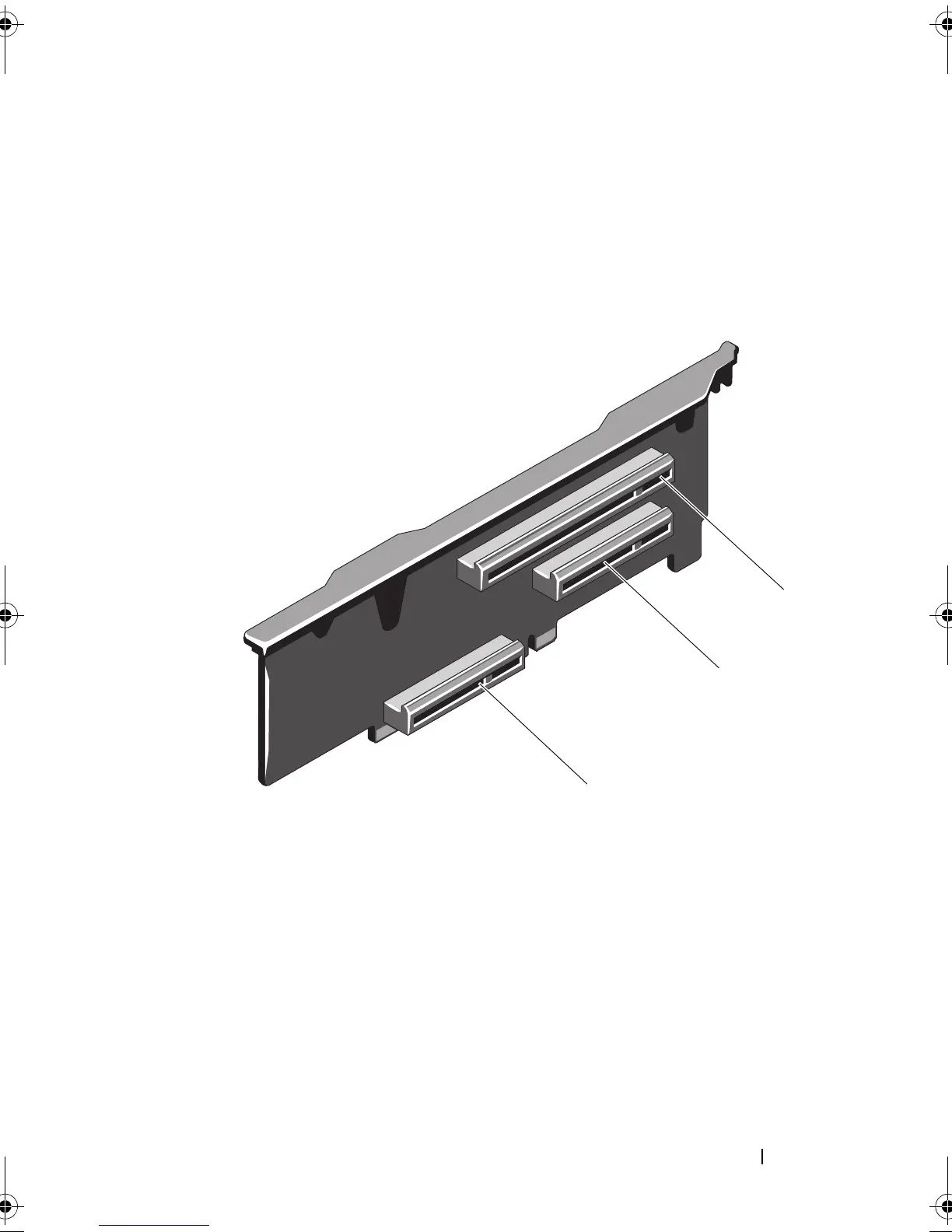

Figure 6-4. PCIe Expansion-Card Riser 1 Components
1 slot 1 PCIe - x8 link expansion slot
(24.13 cm [9.5"] length)
2 slot 2 PCIe - x4 link expansion slot
(low-profile 24.13 cm [9.5"] maximum
length, with a standard height
bracket)
3 integrated storage controller card
connector
3
1
2
book.book Page 191 Thursday, February 18, 2010 2:06 PM

Dell PowerEdge R810 Specifications

General

Form Factor	2U rack server
Chipset	Intel 7500 chipset
Memory Slots	32 DIMM slots
Processor	Up to four Intel Xeon 6500/7500 series processors
Memory	Up to 512GB (32 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3
Storage	Up to six 2.5" SAS or SATA drives
RAID Controller	PERC H700, PERC H800
Network	Four embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NICs
Power Supply	Redundant 1100W or 750W AC power supplies
Expansion Slots	6 x PCIe Gen2 slots (3 x x8, 3 x x16)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
