Jumpers and Connectors 185
Jumpers and Connectors
System Board Jumper
For information on resetting the password jumper to disable a password, see
"Disabling a Forgotten Password" on page 193.

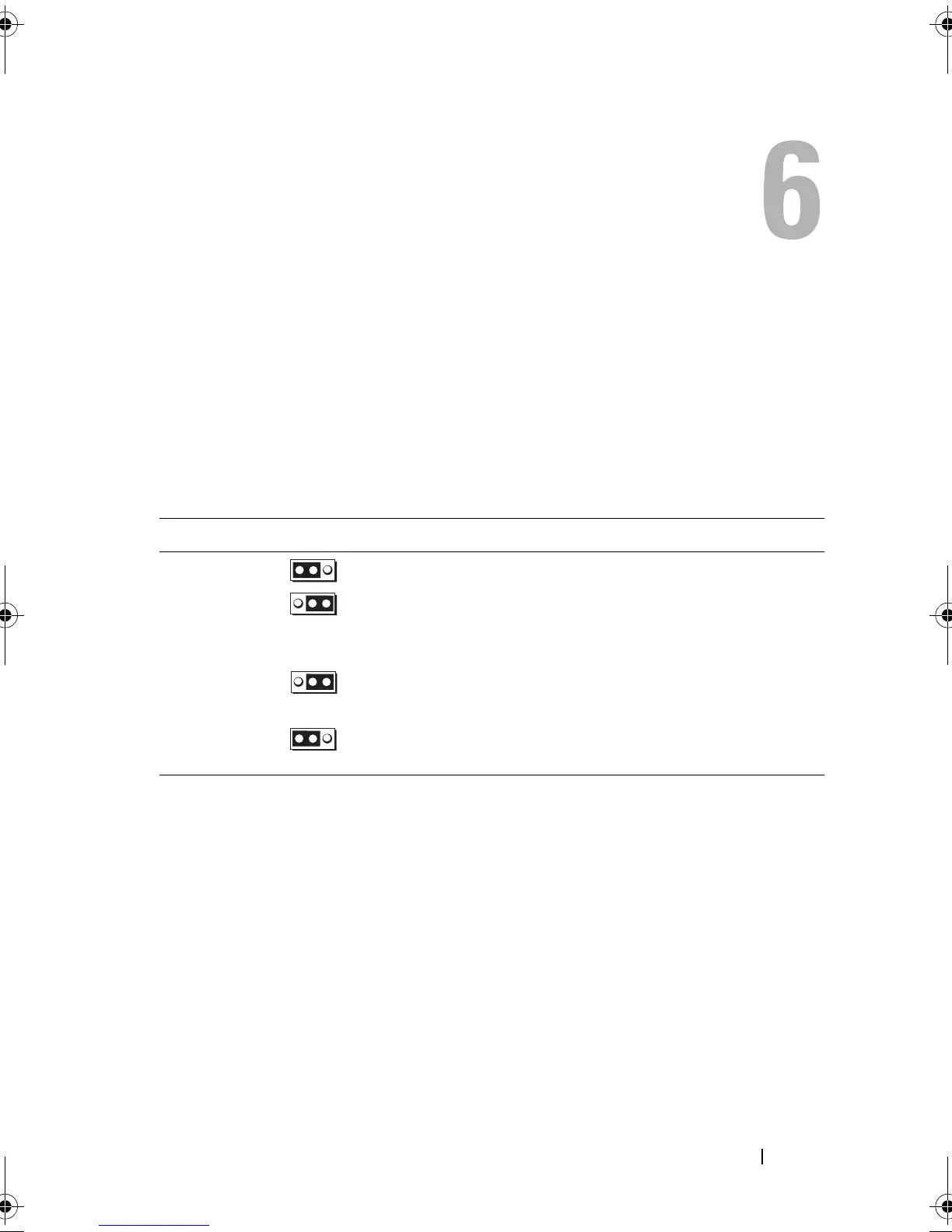

Table 6-1. System Board Jumper Settings
Jumper Setting Description
PWRD_EN
(default) The password feature is enabled (pins 2-4)
The password feature is disabled, and iDRAC6
local access is unlocked at the next AC power
cycle
(pins 4-6)
NVRAM_CLR (default) The configuration settings are retained at system
boot (pins 3-5)
The configuration settings are cleared at the next
system boot (pins 1-3)
book.book Page 185 Thursday, February 18, 2010 2:06 PM

Dell PowerEdge R810 Specifications

General

Form Factor	2U rack server
Chipset	Intel 7500 chipset
Memory Slots	32 DIMM slots
Processor	Up to four Intel Xeon 6500/7500 series processors
Memory	Up to 512GB (32 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3
Storage	Up to six 2.5" SAS or SATA drives
RAID Controller	PERC H700, PERC H800
Network	Four embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NICs
Power Supply	Redundant 1100W or 750W AC power supplies
Expansion Slots	6 x PCIe Gen2 slots (3 x x8, 3 x x16)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
