Dell PowerEdge R810 User Manual

122 Installing System Components

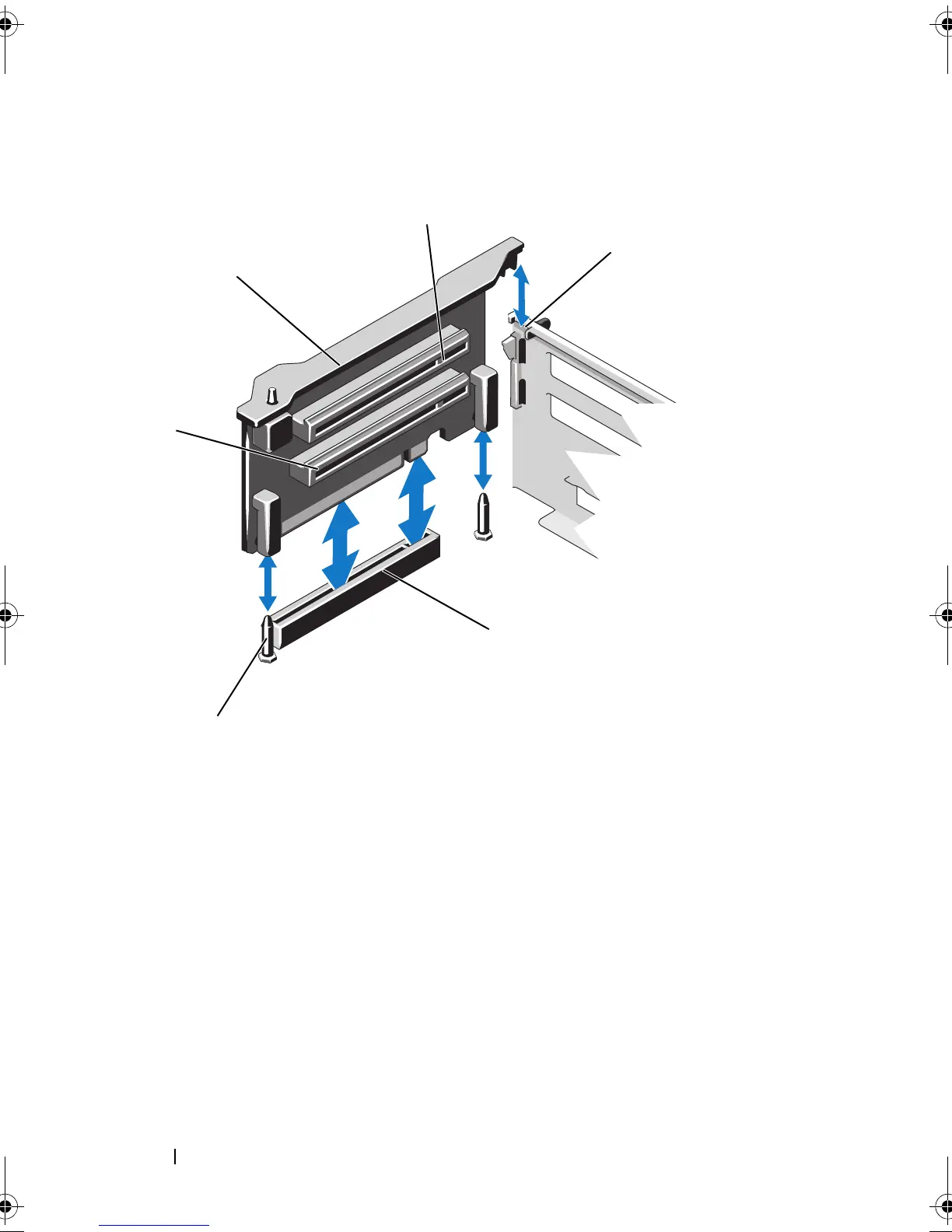

Figure 3-18. Installing or Removing Expansion-Card Riser 2
Installing Expansion-Card Riser 2
1 Align the expansion-card riser with the riser guide pins on the system
board and the slot on the chassis. See Figure 3-17.
2 Lower the expansion-card riser into place until the expansion-card riser
connector is fully seated.
3 If applicable, reinstall the expansion card(s). See "Installing an Expansion
Card" on page 116.
1 expansion-card riser 2 2 expansion-card slot 5
3 slot on chassis 4 riser 2 connector on system board
5 riser guide pins (2) 6 expansion-card slot 6
1
3
5
6
2
4
book.book Page 122 Thursday, February 18, 2010 2:06 PM

Dell PowerEdge R810 Specifications

General

Form Factor	2U rack server
Chipset	Intel 7500 chipset
Memory Slots	32 DIMM slots
Processor	Up to four Intel Xeon 6500/7500 series processors
Memory	Up to 512GB (32 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3
Storage	Up to six 2.5" SAS or SATA drives
RAID Controller	PERC H700, PERC H800
Network	Four embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NICs
Power Supply	Redundant 1100W or 750W AC power supplies
Expansion Slots	6 x PCIe Gen2 slots (3 x x8, 3 x x16)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
