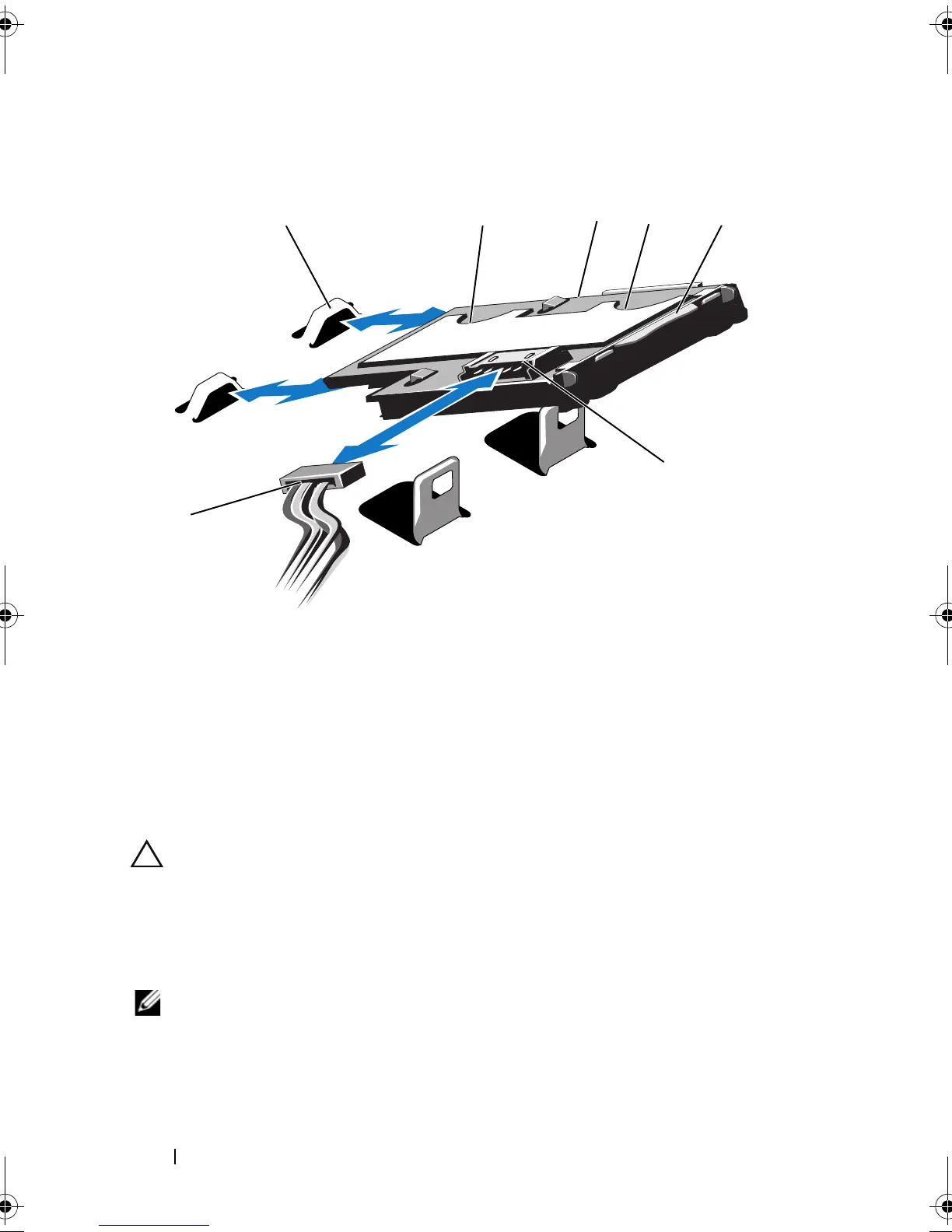

Figure 3-22. Removing or Installing the Internal Dual SD Module
Installing the Internal Dual SD Module
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not covered
by your warranty. Read and follow the safety instructions that came with the
product.
NOTE: When the Redundancy option is set to Mirror mode in the Integrated
Devices
screen of the system setup, the information is replicated from one SD card
to another. See "Integrated Devices Screen" on page 66.
1 hooks (2) 2 SD card slot 2
3 internal dual SD module 4 SD card slot 1
5 latch release tab 6 cable connector
7 power cable
1
3
5
7
6
2
4
book.book Page 132 Thursday, February 18, 2010 2:06 PM

Dell PowerEdge R810 Specifications

General

Form Factor	2U rack server
Chipset	Intel 7500 chipset
Memory Slots	32 DIMM slots
Processor	Up to four Intel Xeon 6500/7500 series processors
Memory	Up to 512GB (32 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3
Storage	Up to six 2.5" SAS or SATA drives
RAID Controller	PERC H700, PERC H800
Network	Four embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NICs
Power Supply	Redundant 1100W or 750W AC power supplies
Expansion Slots	6 x PCIe Gen2 slots (3 x x8, 3 x x16)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
