Dell PowerEdge R810 User Manual

130 Installing System Components

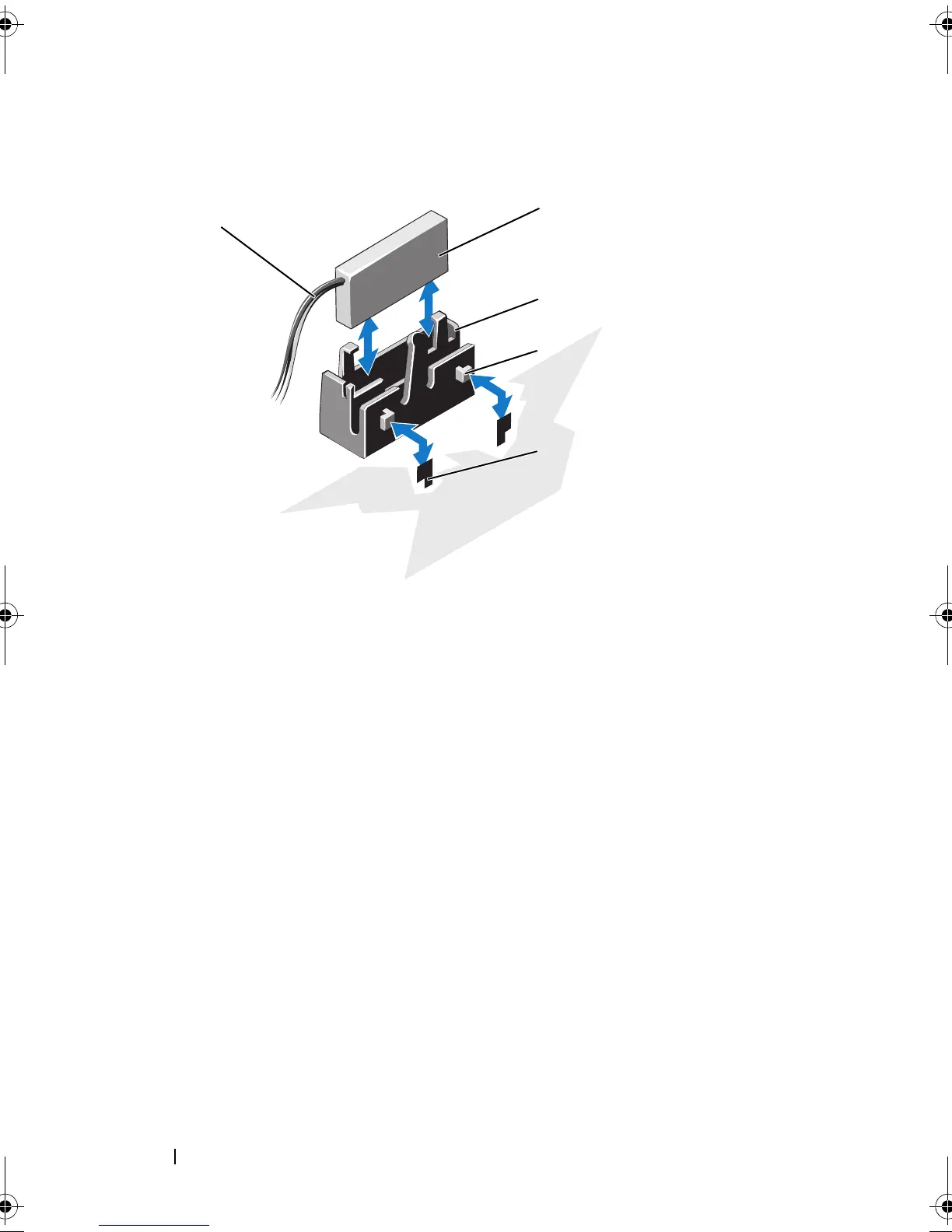

Figure 3-21. Removing or Installing the RAID Battery
Installing the RAID Battery
1 Insert the RAID battery into the battery carrier. See Figure 3-21.
2 Align the tabs on the battery carrier with the battery carrier slots on the
chassis.
3 Slide the battery carrier into the battery carrier slots until it locks into
place. See Figure 3-21.
4 If applicable, connect the battery cable to the connector on the storage
card.
5 Route the power/data cables along the chassis wall. See step 2 and step 3 of
"Sliding the Front-Chassis Assembly" on page 98.
6 Close the system. See "Closing the System" on page 85.
1 RAID battery cable 2 RAID battery
3 battery carrier 4 tabs (2)
5 slots (2)
1
3
2
4
5
book.book Page 130 Thursday, February 18, 2010 2:06 PM

Dell PowerEdge R810 Specifications

General

Form Factor	2U rack server
Chipset	Intel 7500 chipset
Memory Slots	32 DIMM slots
Processor	Up to four Intel Xeon 6500/7500 series processors
Memory	Up to 512GB (32 DIMM slots): 1GB/2GB/4GB/8GB/16GB DDR3
Storage	Up to six 2.5" SAS or SATA drives
RAID Controller	PERC H700, PERC H800
Network	Four embedded Broadcom NetXtreme II 5709c Gigabit Ethernet NICs
Power Supply	Redundant 1100W or 750W AC power supplies
Expansion Slots	6 x PCIe Gen2 slots (3 x x8, 3 x x16)
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
