220 Management: Installing Array Components
Front Bezel (Optional)
Removing the Front Bezel
1 Using the system key, unlock the front bezel (if locked).
2 Lift up the release latch next to the keylock.
3 Rotate the left end of the bezel away from the front panel.
4 Unhook the right end of the bezel and pull the bezel away from
the system.

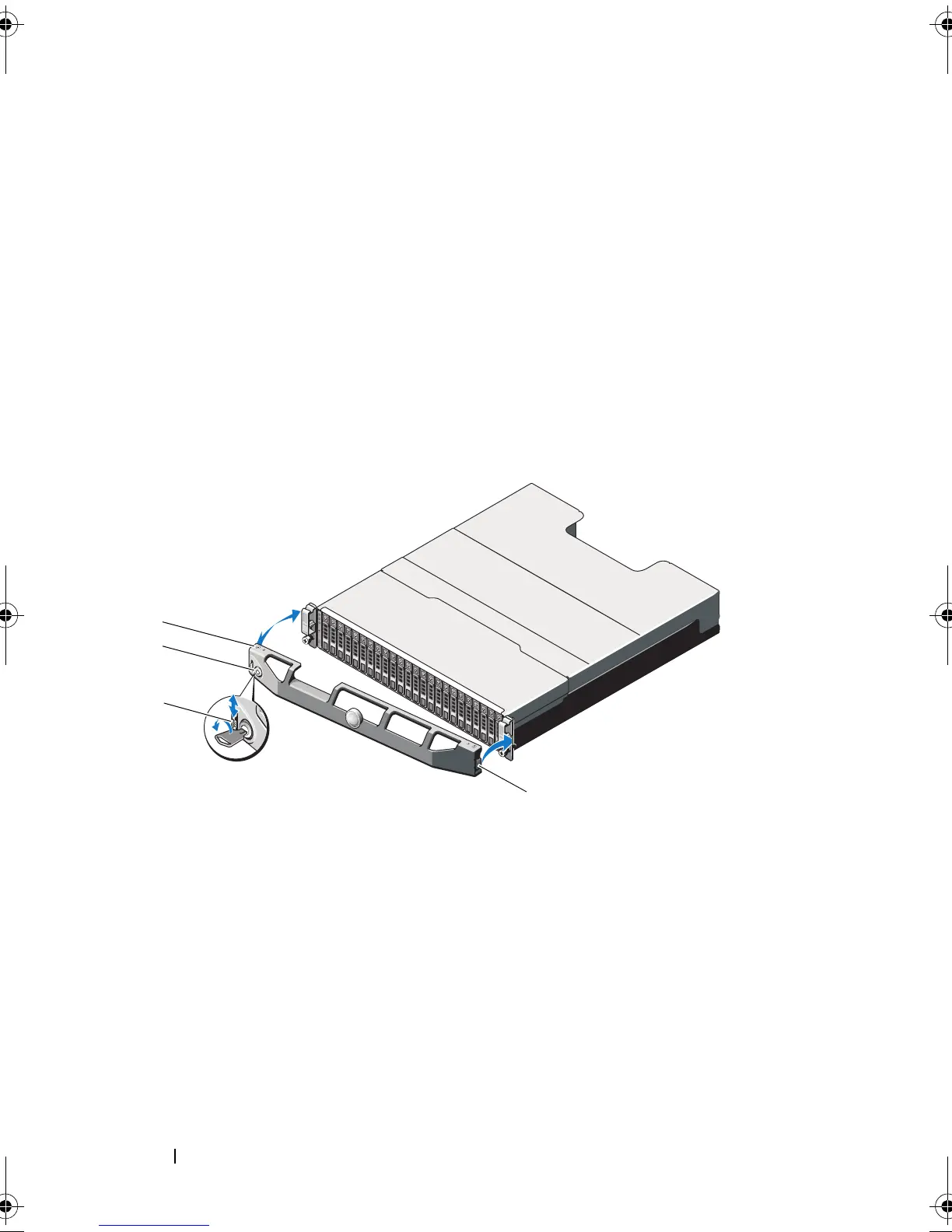

Figure 16-1. Removing and Installing the Front Bezel
Installing the Front Bezel
1 Hook the right end of the bezel onto the chassis.
2 Fit the free end of the bezel onto the system.
3 Secure the bezel with the keylock. See Figure 16-1.
1 bezel 2 keylock
3 release latch 4 hinge tab
1
2
3
4
