238 Management: Installing Array Components

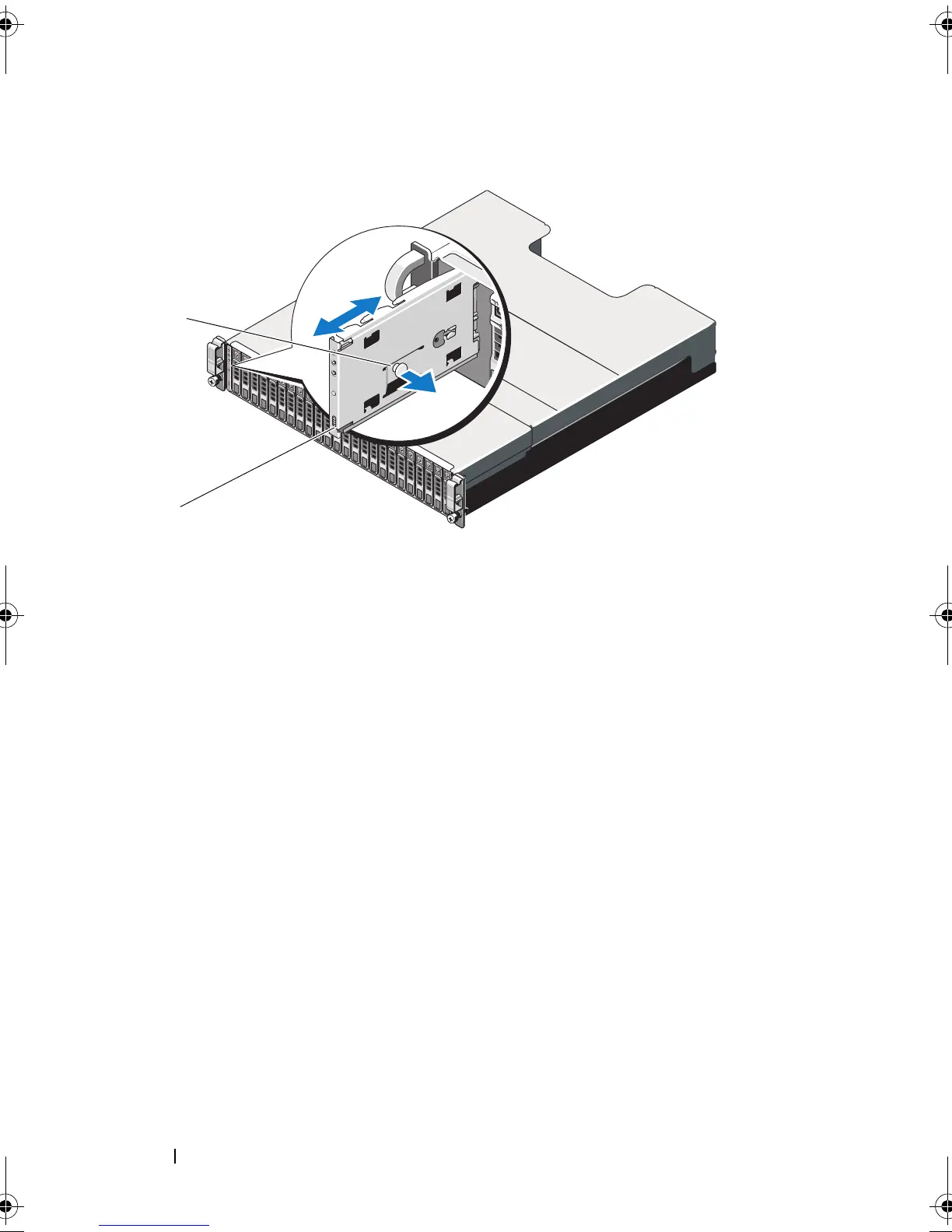

Figure 16-14. Removing and Installing the Control Panel-PowerVault MD3620i
Installing the Control Panel
1 Align the control panel with the slot on the array.
2 Slide the control panel into the array until:
– The release tab clicks into place in
PowerVault MD3600i .
See Figure 16-13.
– The release pin clicks into place in
PowerVault MD3620i .
See Figure 16-14.
3 Replace the hard drives in their respective slots. See "Installing a Hard
Drive" on page 224.
4 Connect all the power cables to the array.
5 Turn on the array and the host server.
1 release pin 2 control panel
1
2
