4.7.2 Grounding connection

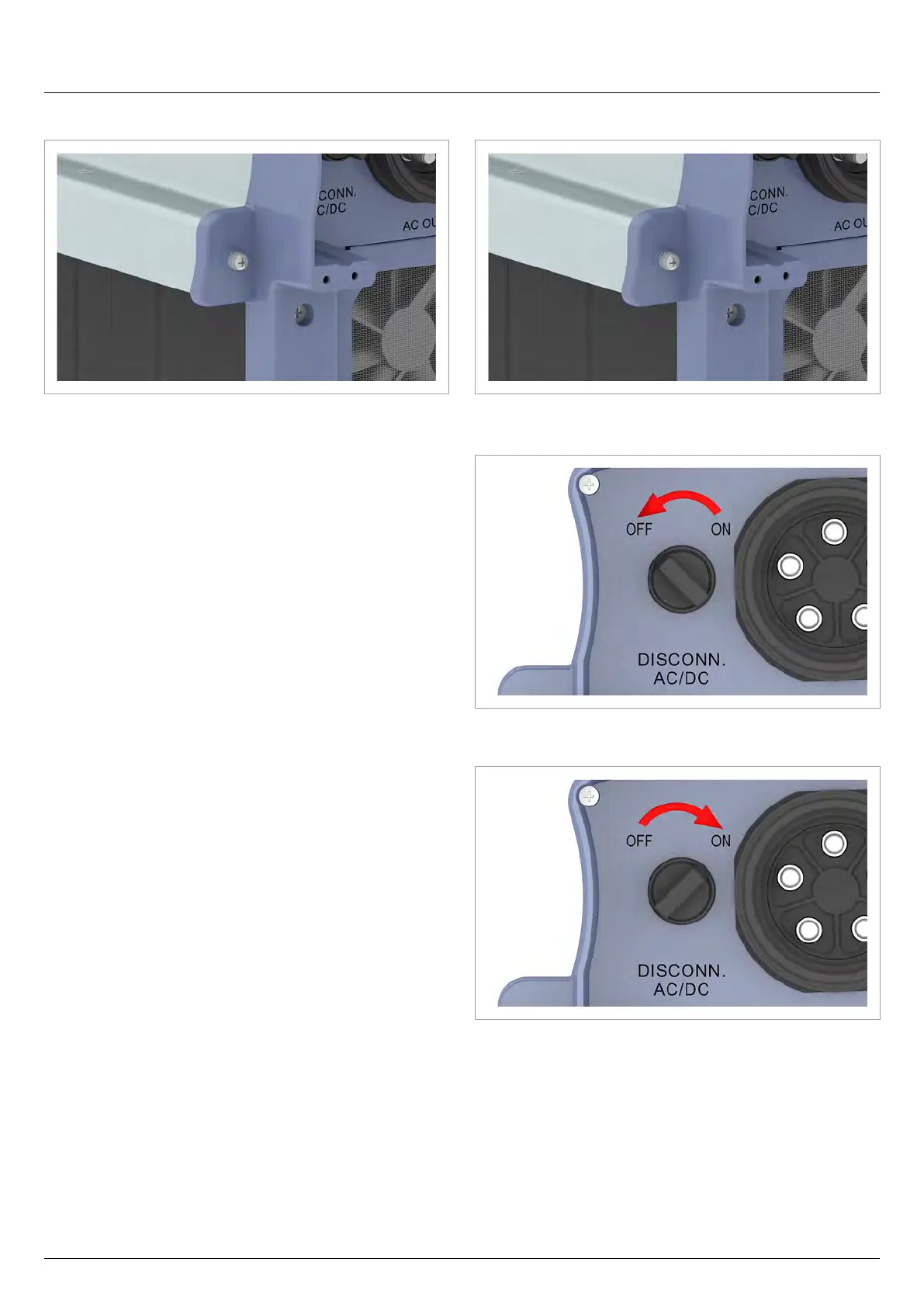

Fig. 4.11: Position of the grounding connection on the inverter
The inverter housing can be grounded via the grounding connec-
tion.
M6 screw, spring washer, washer, and toothed lock washer are
already mounted on the inverter.
4.7.3 AC/DC disconnector
Fig. 4.12: Position of the AC/DC disconnector on the inverter
The inverter is disconnected from the grid and the solar mod-
ules when the AC/DC disconnector is in the OFF position.
The inverter is connected to the grid and the solar modules
when the AC/DC disconnector is in the ON position.
