Chapter 8 Optional Cards MS300 (High Speed Model)
8-22
8-7 EMM-BPS01 Back-up Power Supply Option Card
Features
1. External 24V DC input via this card
2. To keep the control board alive for parameter read/write, status
monitoring and communication.

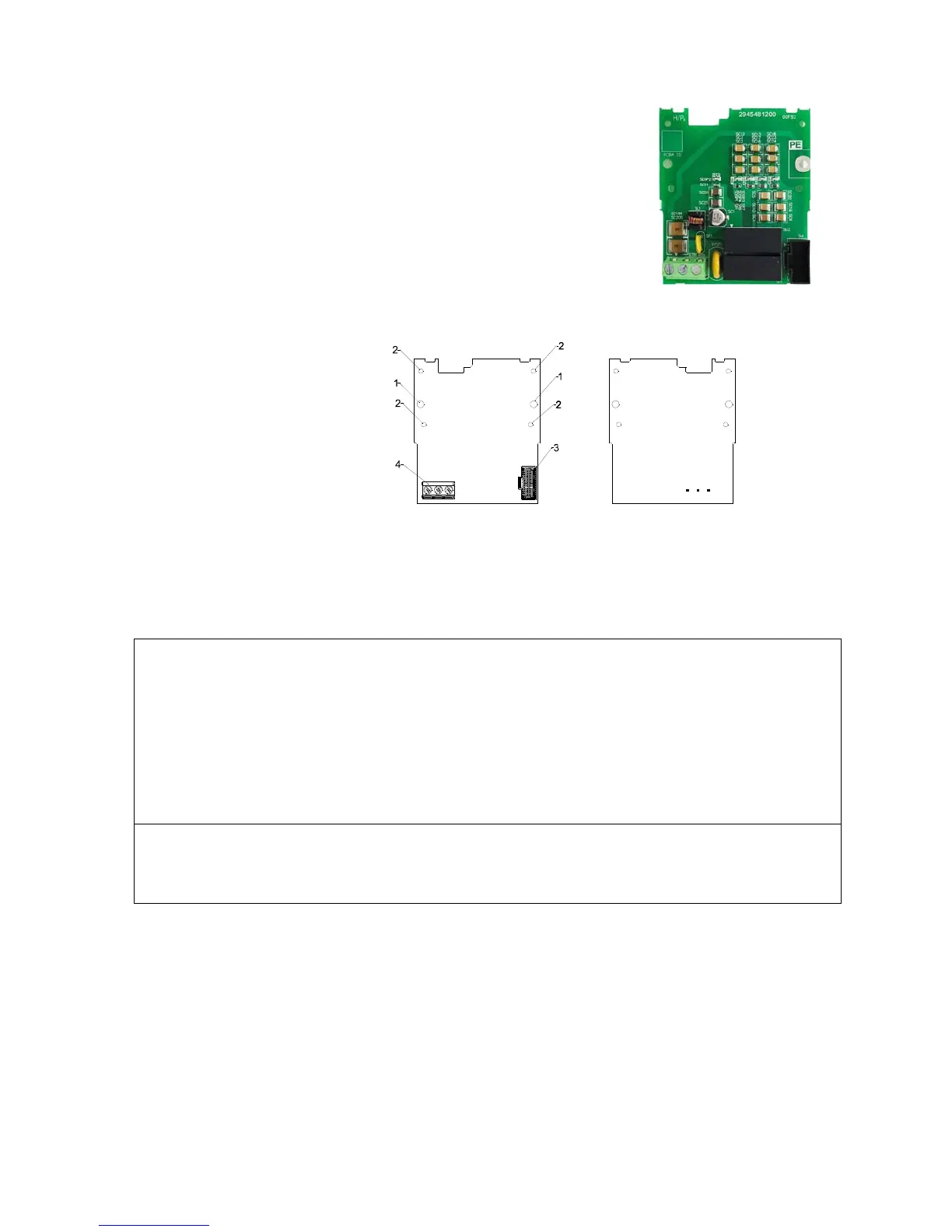

Product Profile
1. Screw fixing hole
2. Positioning hole
3. AC motor drive connection
port
4. +24V terminal block
Specifications
When the drive is only powered by EMC-BPS01, communication stays normal, including support of all option
cards and the following functions:
Parameters can be read and written
Display with keypad
Keypad buttons (except the RUN button)
Analog input can operate
Multifunction inputs (FWD, RV, MI 1~MI 8) need external power supply to operate
The following functions are not supported:
Relay output
PLC function
Wire: 24~20 AWG
Torque: 5 kg-cm / [4.3 Ib-in.] / [0.49 Nm]
