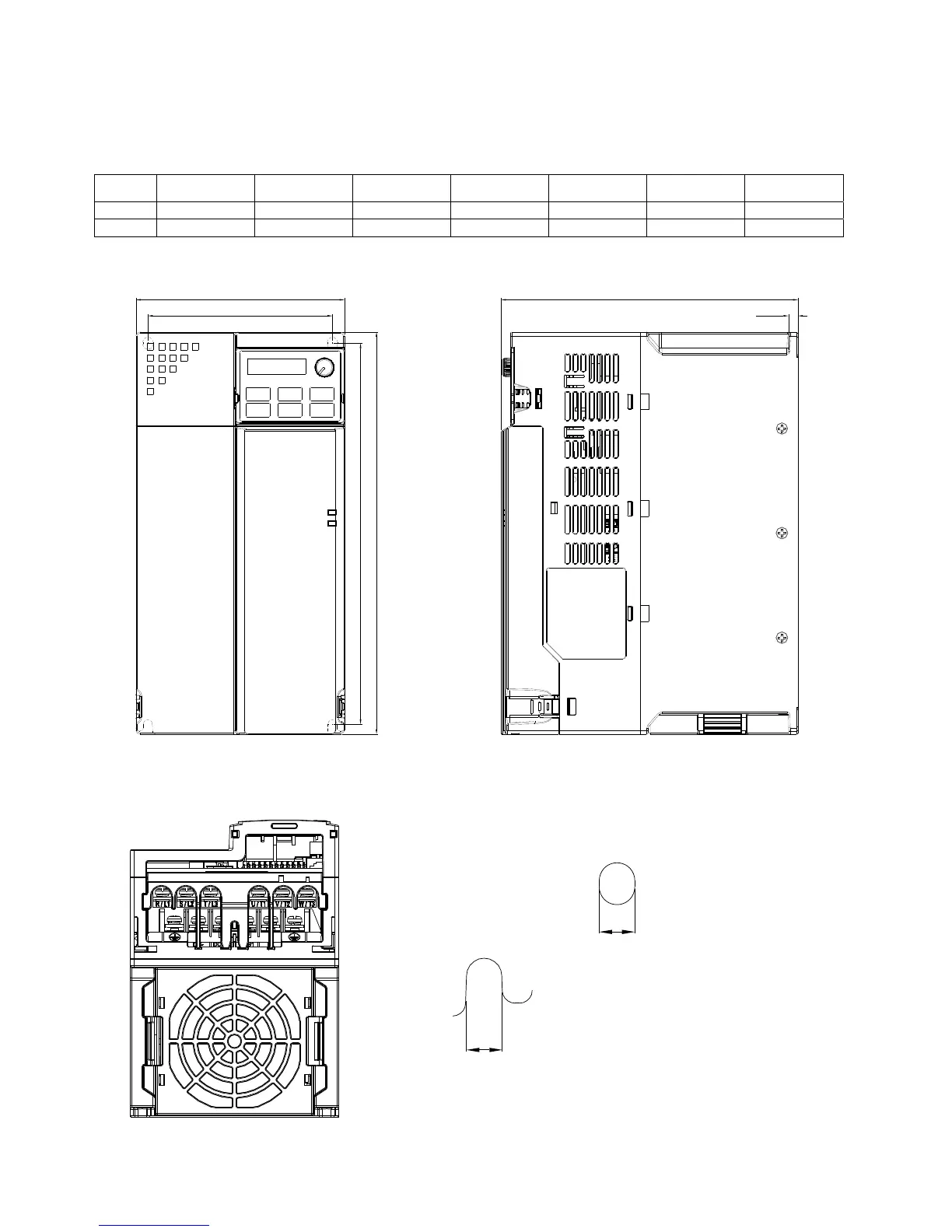

Chapter 2 Dimensions MS300 (High Speed Model)
2-4
Frame E
E1: VFD33AMS23ANSHA; VFD33AMS23ENSHA; VFD49AMS23ANSHA; VFD49AMS23ENSHA;
VFD25AMS43ANSHA; VFD25AMS43ENSHA; VFD32AMS43ANSHA; VFD32AMS43ENSHA
E2: VFD25AMS43AFSHA; VFD32AMS43AFSHA
Unit: mm [inch]
Frame W H D W1 H1 D1 S1
E1 130.0 [5.12] 250.0 [9.84] 185.0 [7.83] 115.0 [4.53] 236.8 [9.32] 6.0 [0.24] 5.5 [0.22]
E2 130.0 [5.12] 250.0 [9.84] 219.0 [8.62] 115.0 [4.53] 236.8 [9.32] 6.0 [0.24] 5.5 [0.22]
W
H
D
W1
H1
D1
S1
S1
Mounting H ole
Mounting Hole
