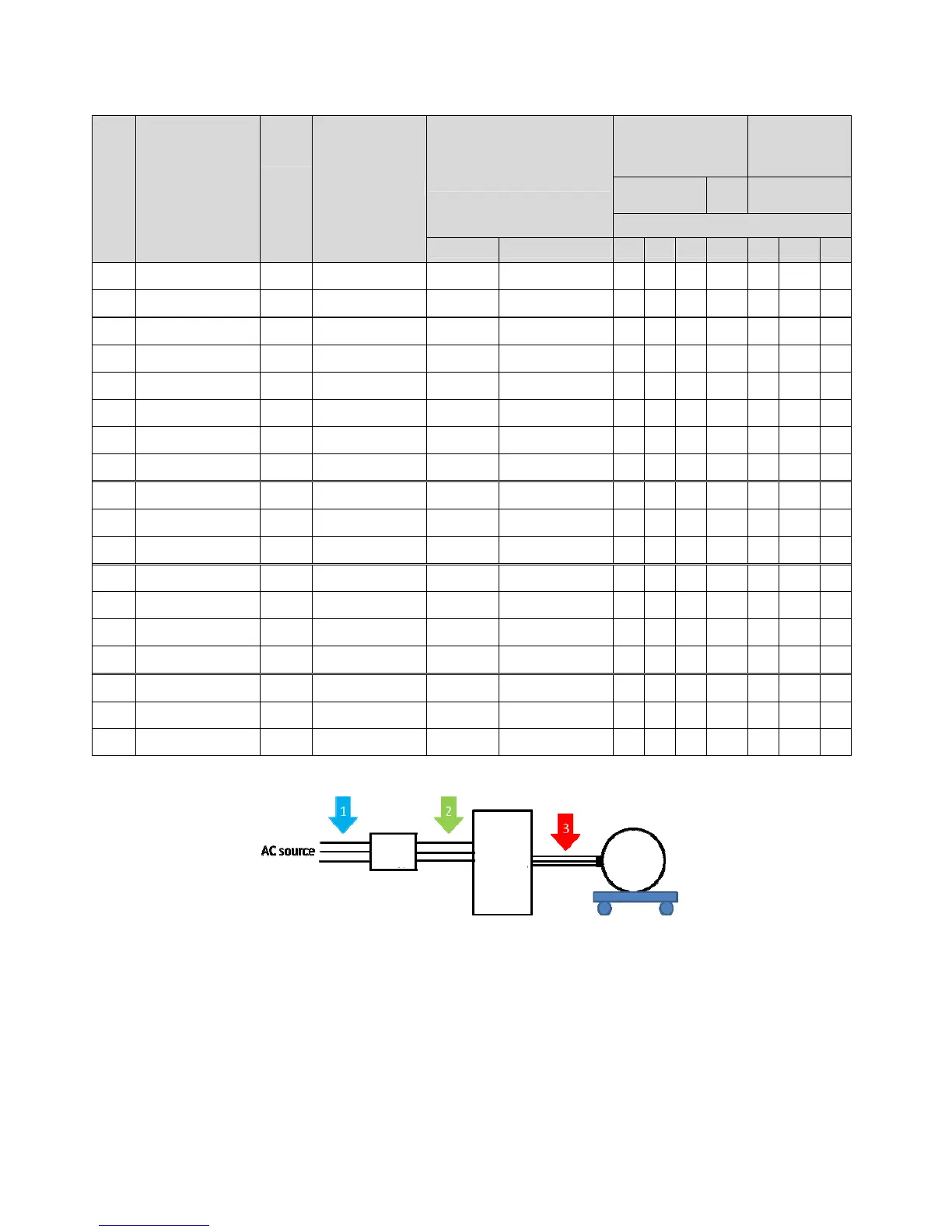

7-6 EMC Filter
Frame Model #
Input
Current
(A)
Filter model #
Recommended model of
zero-phase reactor
Conducted emission
max. motor cable
length
Radiated
emission
max. motor
cable length
C1
30m
C2
100m
C2
100m
Position to place zero phase reactor
DELTA VAC *1 *2 *3 N/A *1 *2 *3
B
VFD7A5MS23ANSHA
9.6 EMF10AM23A RF008X00A T60006L2040W453 ✓ ✓ NA ✓ ✓
B
VFD4A2MS43ANSHA
6.4 EMF6A0M43A RF008X00A T60006L2040W453 ✓ NA ✓
C
VFD7A5MS21ANSHA
17.9 EMF27AM21B RF008X00A T60006L2040W453 ✓ NA ✓
C
VFD11AMS21ANSHA
26.3 EMF27AM21B RF008X00A T60006L2040W453 ✓ NA ✓
C
VFD11AMS23ANSHA
15 EMF24AM23B RF008X00A T60006L2040W453 ✓ ✓ NA ✓ ✓
C
VFD17AMS23ANSHA
23.4 EMF24AM23B RF008X00A T60006L2040W453 ✓ ✓ NA ✓ ✓
C
VFD5A5MS43ANSHA
7.2 EMF12AM43B RF008X00A T60006L2040W453 NA
C
VFD9A0MS43ANSHA
11.6 EMF12AM43B RF008X00A T60006L2040W453 ✓ ✓ NA ✓ ✓
D
VFD25AMS23ANSHA
32.4 EMF33AM23B RF008X00A T60006L2050W565 ✓ ✓ NA ✓ ✓
D
VFD13AMS43ANSHA
17.3 EMF23AM43B RF008X00A T60006L2050W565 ✓ ✓ ✓ NA ✓ ✓ ✓
D
VFD17AMS43ANSHA
22.6 EMF23AM43B RF008X00A T60006L2050W565 ✓ ✓ ✓ NA ✓ ✓ ✓
E
VFD33AMS23ANSHA
43.2 B84143D0075R127 RF008X00A T60006L2050W565 ✓ ✓ NA ✓ ✓
E
VFD49AMS23ANSHA
61.2 B84143D0075R127 RF008X00A T60006L2050W565 ✓ ✓ NA ✓ ✓
E
VFD25AMS43ANSHA
30.8 B84143D0050R127 RF008X00A T60006L2050W565 NA
E
VFD32AMS43ANSHA
39.6 B84143D0050R127 RF008X00A T60006L2050W565 ✓ ✓ NA ✓ ✓
F
VFD65AMS23ANSHA
82.8 B84143D0090R127 RF008X00A T60006L2050W565 ✓ ✓ NA ✓ ✓
F
VFD38AMS43ANSHA
45.7 B84143D0075R127 RF008X00A T60006L2050W565 ✓ ✓ NA ✓ ✓
F
VFD45AMS43ANSHA
53.9 B84143D0075R127 RF008X00A T60006L2050W565 ✓ ✓ NA ✓ ✓
EMC
Filter
Motor
Drive
