Chapter 8 Optional Cards MS300 (High Speed Model)
8-14

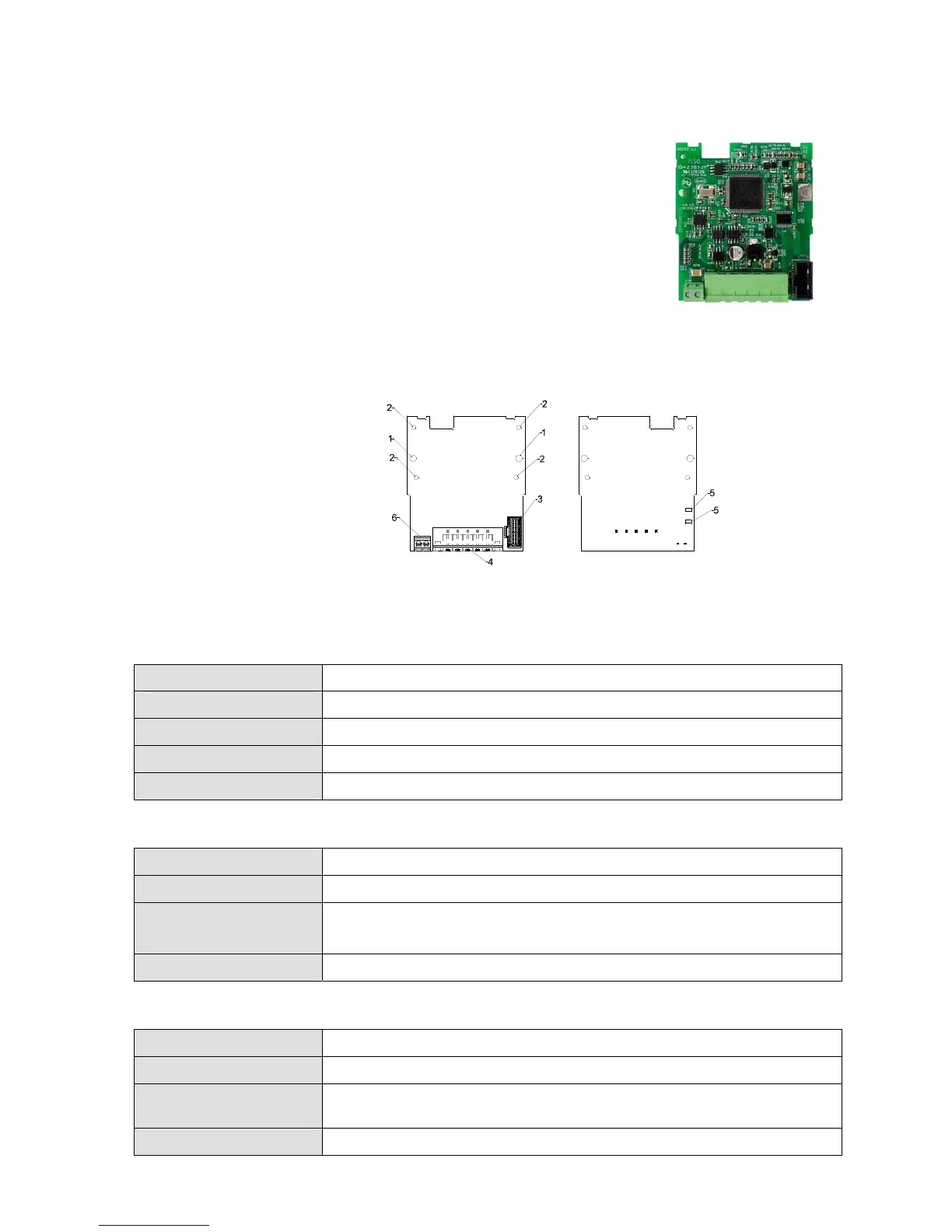

8-4 CMM-DN01 DeviceNet Option Card
 Functions
1. Based on the high-speed communication interface of Delta’s HSSP
protocol, the AC motor drive can be controlled in real-time.
2. Supports Group 2 only connection and polling I/O data exchange.
3. For I/O mapping, supports max. 32 words input and 32 words
output.
4. Supports EDS file configuration in DeviceNet configuration
software.
5. Supports all Baud rates on DeviceNet bus: 125 Kbps, 250 Kbps,
500 Kbps and extendable Baud rate mode.
6. Node address and Baud rate can be set up in the AC motor drive.
7. Power supplied from AC motor drive.

Product Profile
1. Screw fixing hole
2. Positioning hole
3. AC motor drive
connection port
4. Communication Port
5. Indicator
6. Ground terminal block
 Specifications
DeviceNet Connector
Interface 5-PIN open pluggable connector. PIN interval: 5.08 mm
Transmission method CAN
Transmission cable Shielded twisted pair cable (with 2 power cables)
Transmission speed 125 Kbps, 250 Kbps, 500 Kbps and extendable baud rate mode
Network protocol DeviceNet protocol
AC Motor Drive Connection Port
Interface 50 PIN communication terminal
Transmission method SPI communication
Terminal function
1. Communication module communicates with AC motor drive
via this port.
2. AC motor drive provides power supply to communication module via this
port.
Communication protocol Delta HSSP protocol
Electrical Specification
Power supply voltage 5 VDC (supplied by AC motor drive)
Insulation voltage
500 VDC
Communication wire
power consumption
0.85 W
Power consumption 1 W
Wire: 24~20 AWG
Torque: 2 kg-cm / [1.7 Ib-in.] / [0.2 Nm]
