Delta VFD9A0MS43ANSHA User Manual

Chapter 7 Optional AccessoriesMS300 (High Speed Model)
7-29
7-8 Capacitive Filter
The capacitive filter (CXY101-43A) is a simple filter which can support basic filtering and noise
interference reduction.

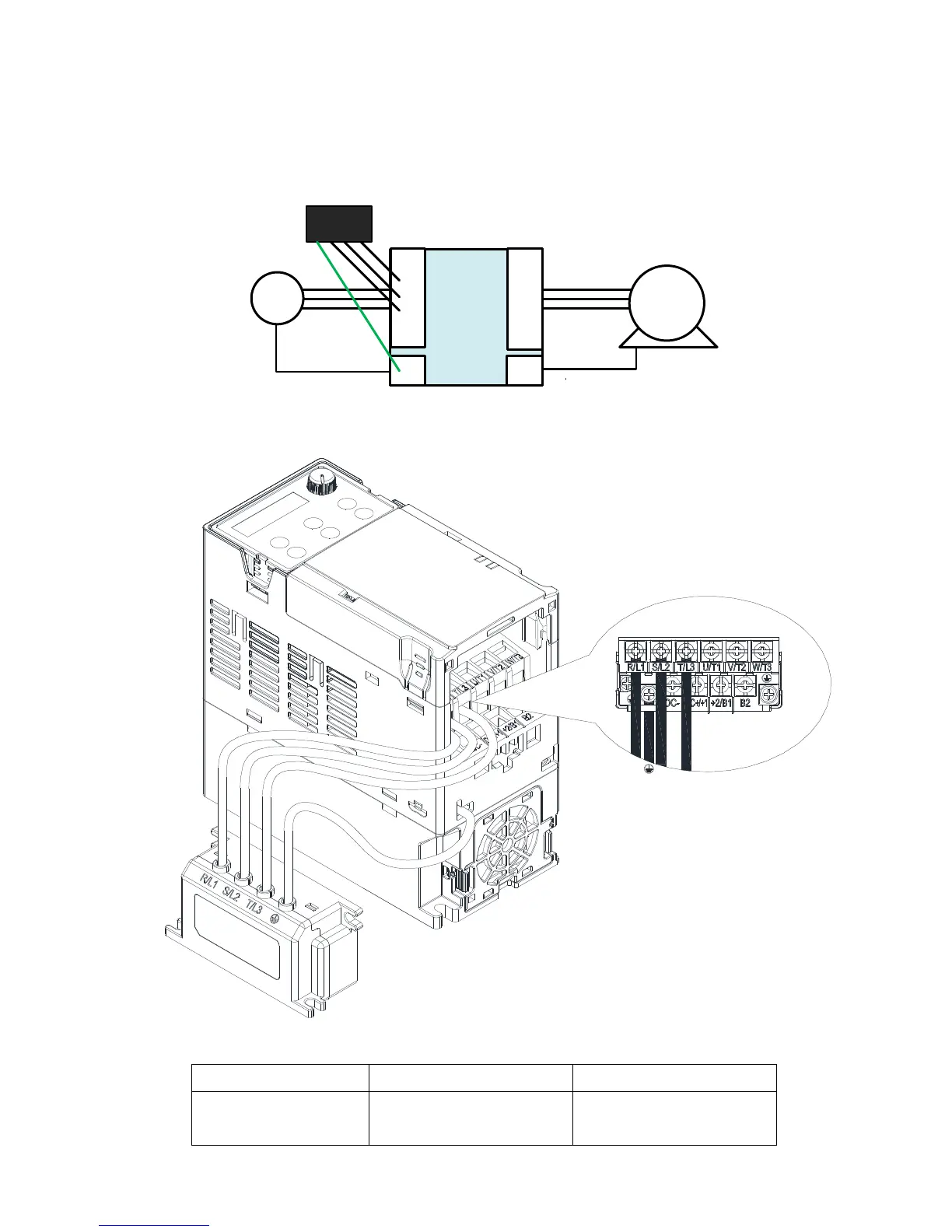

Installation
diagram:
VFD
R
S
T
U
V
W
PE
Motor
PE
Grid
Capacitor
Filter
Capacitive filter and drive wiring figure：
R/L1
S/L2
T/L3
Specification:
Model Capacitance Temperature range
CXY101-43A
Cx: 1 μF ± 20 %
Cy: 0.1 μF ± 20 %
-40 ~ +85 °C
