Chapter 8 Optional Cards MS300 (High Speed Model)
8-9
8-2 CMM-MOD01 MODBUS TCP Option Card
Features
1. Supports MODBUS TCP protocol
2. MDI / MDI-X auto-detect
3. E-mail alarm
4.
IP Filter, basic firewall function

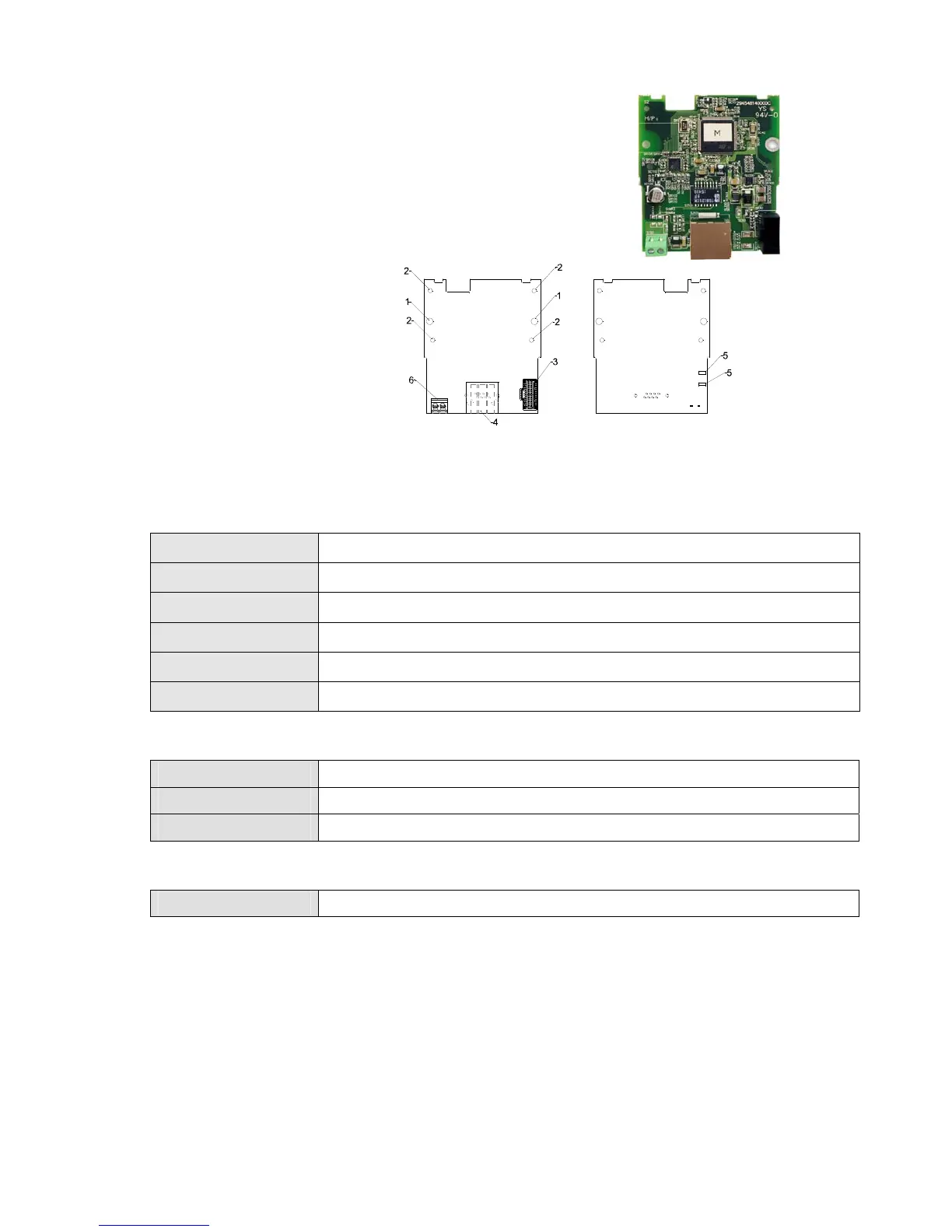

Product Profile
1. Screw fixing hole
2. Positioning hole
3. AC motor drive
connection port
4. Communication port
5. Indicator
6. Ground terminal block
Specifications
Network Interface
Interface RJ-45 with Auto MDI / MDIX
Number of ports 1 Port
Transmission method IEEE 802.3, IEEE 802.3u
Transmission cable Category 5e shielding 100 M
Transmission speed 10 / 100 Mbps Auto-Detect
Network protocol ICMP, IP, TCP, UDP, DHCP, SMTP, MODBUS OVER TCP / IP, Delta Configuration
Electrical Specification
Power supply voltage
5 VDC (supplied by AC motor drive)
Insulation voltage
500 VDC
Power consumption
0.8 W
Mechanical Specification
Weight
25 g
Wire: 24~20 AWG
Torque: 2 kg-cm / [1.7 Ib-in.] / [0.2 Nm]
