Delta VFD9A0MS43ANSHA User Manual

Chapter 5 Main Circuit TerminalsMS300 (High Speed Model)
5-10

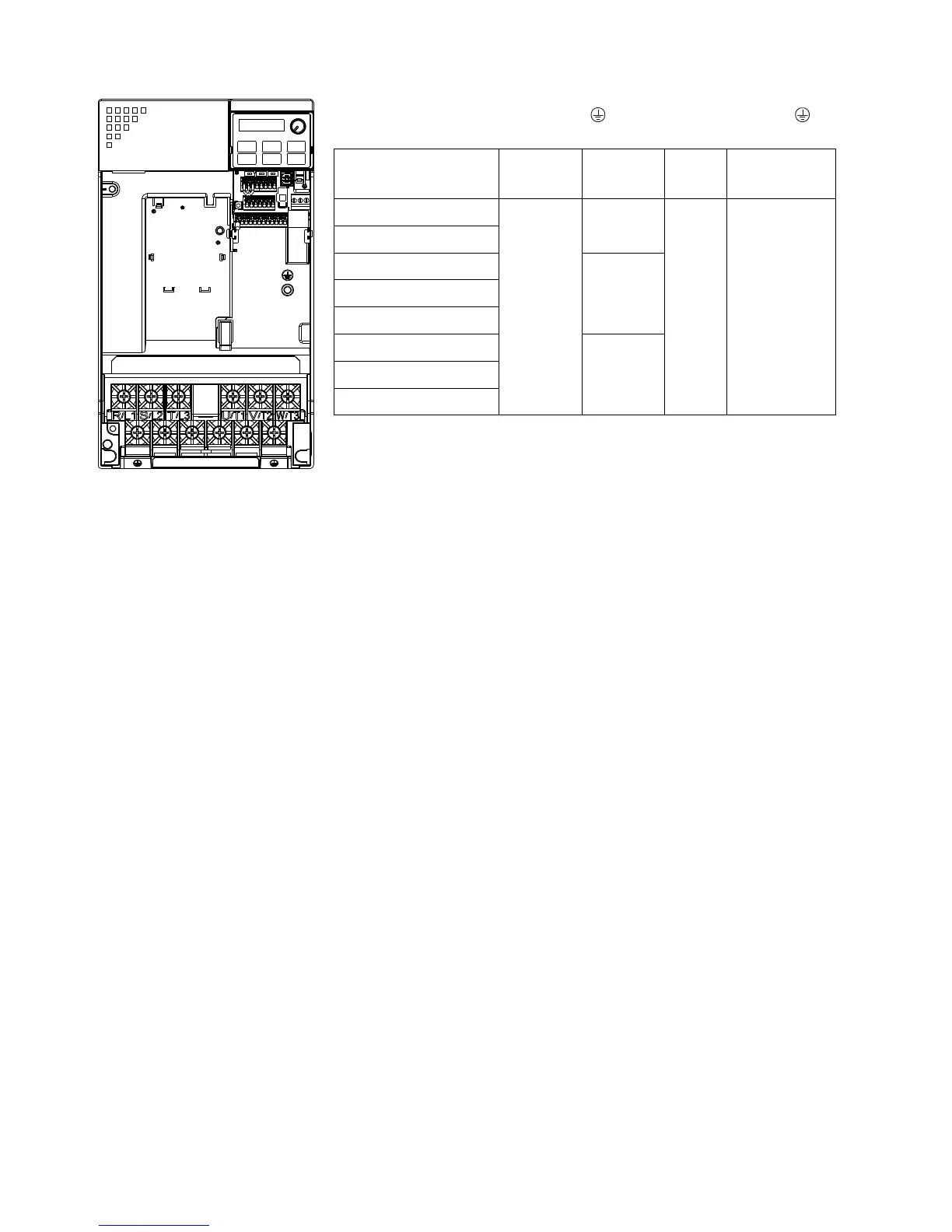

Frame F
Main circuit terminals:
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
, DC-, DC+/+1, +2/B1, B2,
Models
Max. Wire
Gauge
Min. Wire
Gauge
Screw
Torque
(±10%)
VFD65AMS23ANSHA
2 AWG
[33.6 mm
2
]
2 AWG
[33.6 mm
2
]
M6
40 kg-cm
[34.7 lb-in.]
[3.92 Nm]
VFD65AMS23ENSHA
VFD38AMS43ANSHA
6 AWG
[13.3 mm
2
]
VFD38AMS43ENSHA
VFD38AMS43AFSHA
VFD45AMS43ANSHA
4 AWG
[21.2 mm
2
]
VFD45AMS43ENSHA
VFD45AMS43AFSHA
 If you install at Ta 45°C above environment, please select copper
wire which have voltage rating 600V and temperature resistant 90°
C or above.
 If you install at Ta 45°C environment, please select copper wire
which have voltage rating 600V and temperature resistant 75°C or
90°C.
 For UL installation compliant, you have to use copper wires when
installation, the wire gauge is based on temperature resistant 75°C
which is according to the requirements and recommendations from
UL. Do not reduce the wire gauge when using higher temperature
wire.
