Chapter 5 Main Circuit TerminalsMS300 (High Speed Model)
5-5
5-2 Main Circuit Terminals

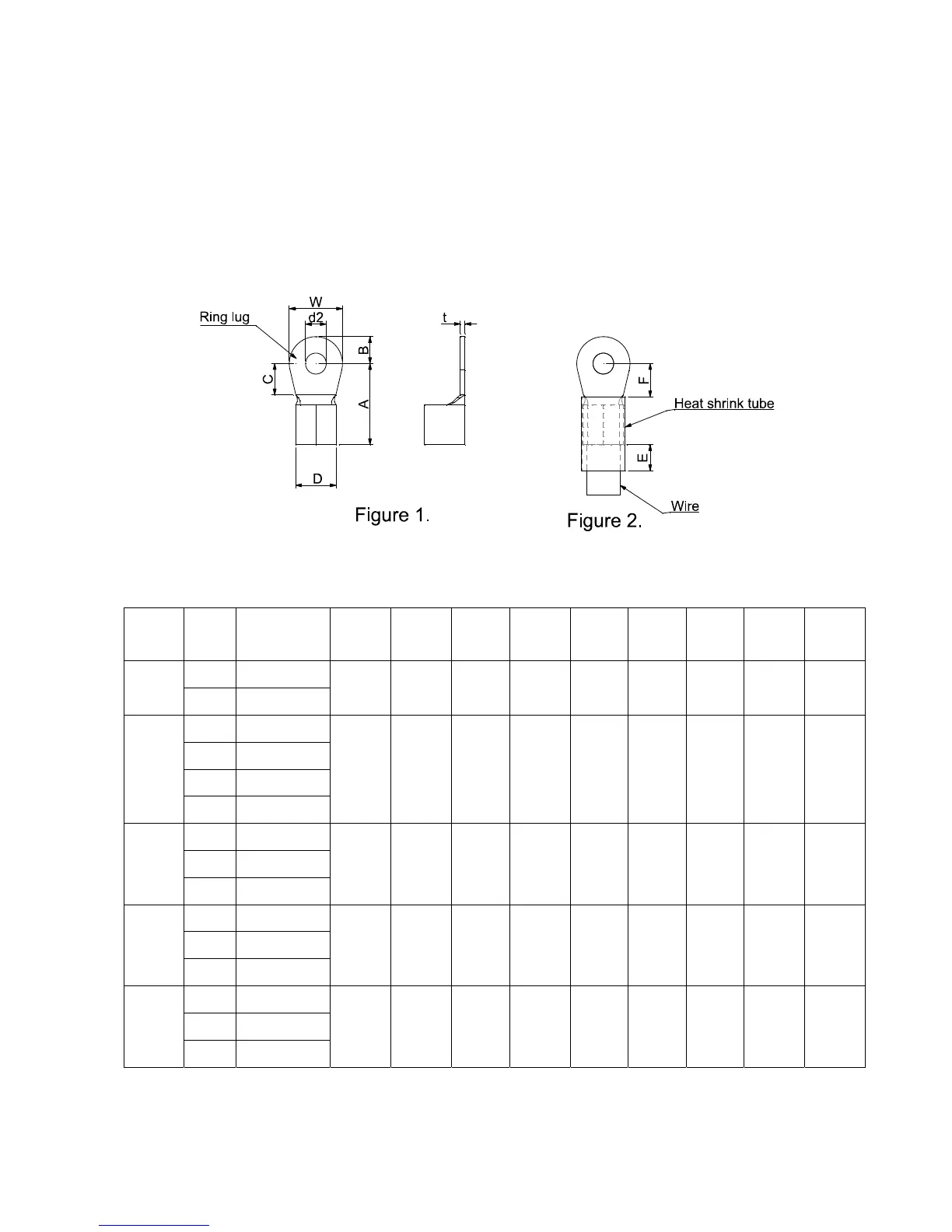

 It needs following additional terminal when wiring. The additional terminal dimension should comply
with the following figure 1.
 After crimping the wire to the ring lug (must UL approved), UL and CSA approved R/C (YDPU2)
heat shrink tubing rated min 600Vac insulation shall be install over the live part. Please refer to the
following figure 2.
Dimensions of Ring Lug
Frame AWG Kit P/N
A
(MAX)
B
(MAX)
C
(MIN)
D
(MAX)
d2
(MIN)
E
(MIN)
F
(MIN)
W
(MAX)
t
(MAX)
B
14 RNBS2-4
12.1 3.6 6.1 5.6 4.3 13.0 4.5 7.2 1
12 RNBS5-4
C
14
RNBS2-4
17.8 5.0 6.1 7.2 4.3 13.0 5.5 8.0 1.2
12 RNBS5-4
10 RNBS5-4
8
RNBS8-4
D
12 RNBS5-4
17.8 5.0 6.1 7.2 4.3 13.0 5.5 8.0 1.2 10 RNBS5-4
8
RNBS8-4
E
8 RNBS8-5
27.1 6.1 10.5 11.5 5.3 13.0 6.5 12.2 1.7 6 RNB14-5
4
RNBS22-5
F
6 RNBS14-6
35.0 9.0 13.3 14.0 6.2 13.0 19.5 18.0 1.8 4 RNBS22-6
2
RNBS38-6
Unit: mm
