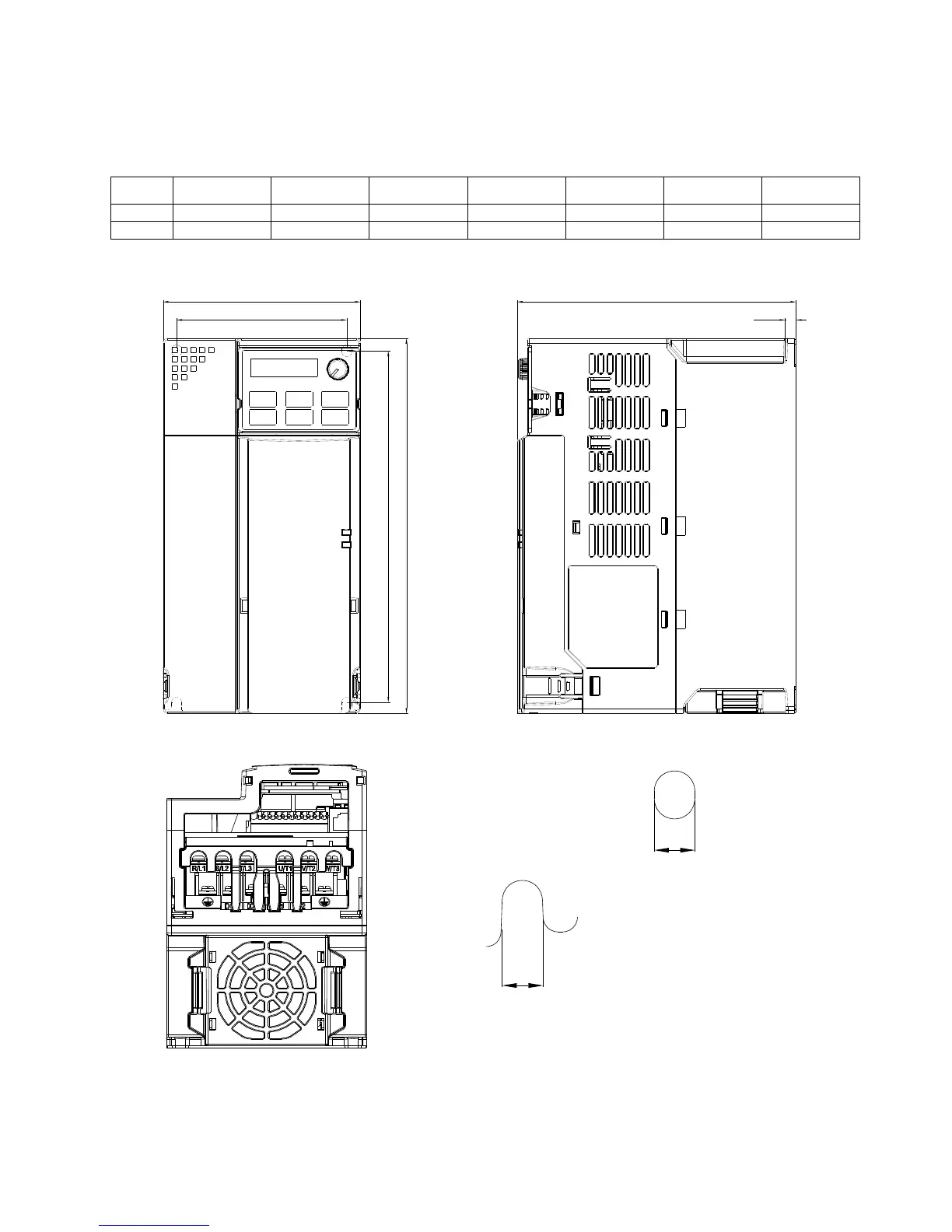

Chapter 2 Dimensions MS300 (High Speed Model)
2-3
Frame D
D1: VFD25AMS23ANSHA; VFD25AMS23ENSHA; VFD13AMS43ANSHA; VFD13AMS43ENSHA;
VFD17AMS43ANSHA; VFD17AMS43ENSHA
D2: VFD13AMS43AFSHA; VFD17AMS43AFSHA
Unit: mm [inch]
Frame W H D W1 H1 D1 S1
D1 109.0 [4.29] 207.0 [8.15] 154.0 [6.06] 94.0 [3.70] 193.8 [7.63] 6.0 [0.24] 5.5 [0.22]
D2 109.0 [4.29] 207.0 [8.15] 187.0 [7.36] 94.0 [3.70] 193.8 [7.63] 6.0 [0.24] 5.5 [0.22]
W
W1
H
H1
D
D1
S1
S1
Mounting Hole
Mounting Hole
