ZB security Security modes
XBee/XBee-PRO ZigBee RF Modules User Guide 75
ZigBee supports various levels of security that can be configured depending on the needs of the application.
Security provisions include:
128-bit AES encryption
Two security keys that can be preconfigured or obtained during joining
Support for a trust center
Provisions to ensure message integrity, confidentiality, and authentication.
The first half of this section describes various security features defined in the ZigBee-PRO specification, while the
last half illustrates how the XBee and XBee-PRO modules can be configured to support these features
Security modes
The ZigBee standard supports three security modes – residential, standard, and high security. The residential
level of security requires a network key be shared among devices. Standard security adds a number of optional
security enhancements over residential security, including an APS layer link key. High security adds entity
authentication, and a number of other features not widely supported.
XBee ZB modules primarily support standard security, although end devices that support residential security can
join and interoperate with standard security devices. The remainder of this section focuses on material that is
relevant to standard security.
ZigBee security model
ZigBee security is applied to the Network and APS layers. Packets are encrypted with 128-bit AES encryption. A
network key and optional link key can be used to encrypt data. Only devices with the same keys are able to
communicate together in a network. Routers and end devices that will communicate on a secure network must
obtain the correct security keys.
Network layer security
The network key is used to encrypt the APS layer and application data. In addition to encrypting application
messages, network security is also applied to route request and reply messages, APS commands, and ZDO
commands. Network encryption is not applied to MAC layer transmissions such as beacon transmissions, and so
forth. If security is enabled in a network, all data packets will be encrypted with the network key.

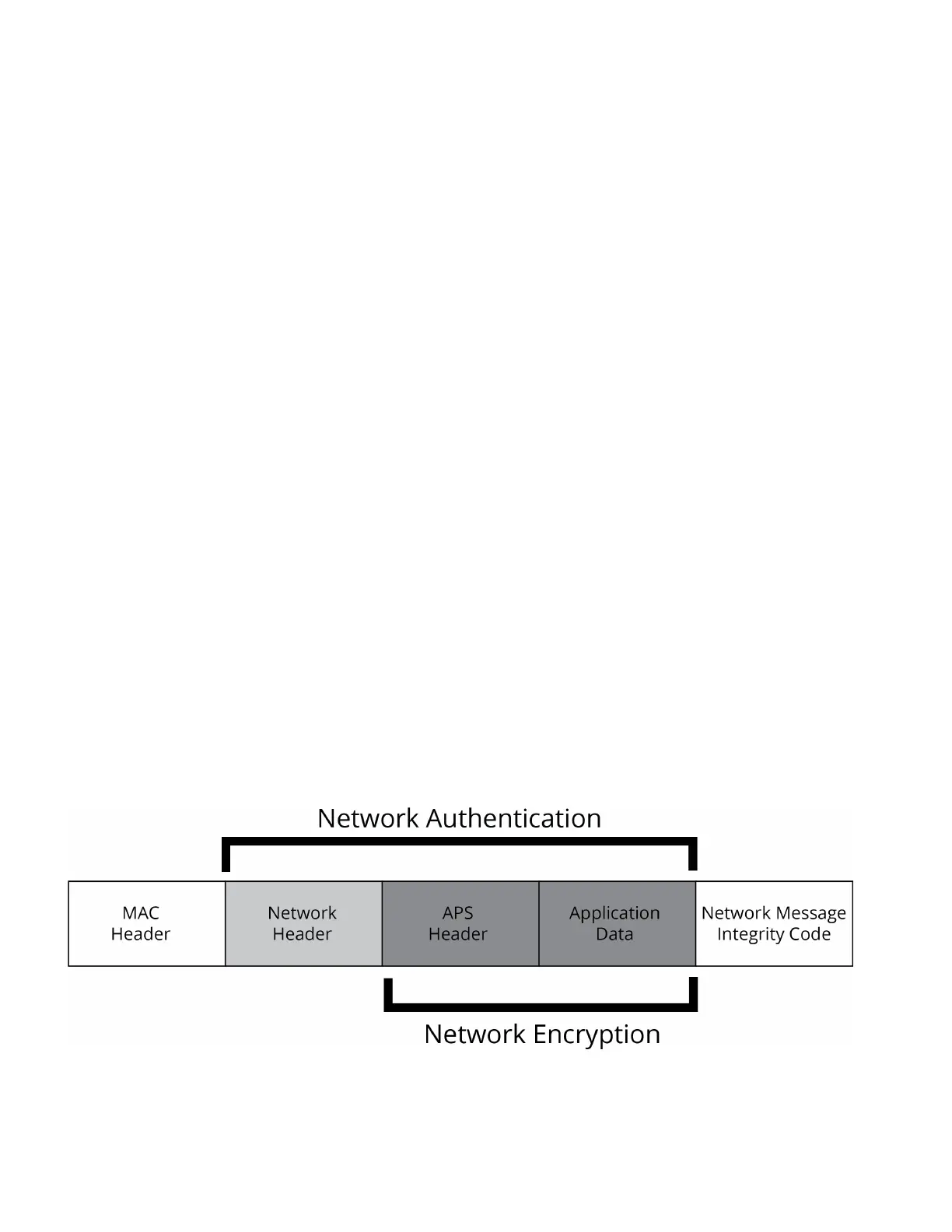

Packets are encrypted and authenticated using 128-bit AES. This is shown in the figure below.
