Before Using This Machine
1
Part Names and Their Functions

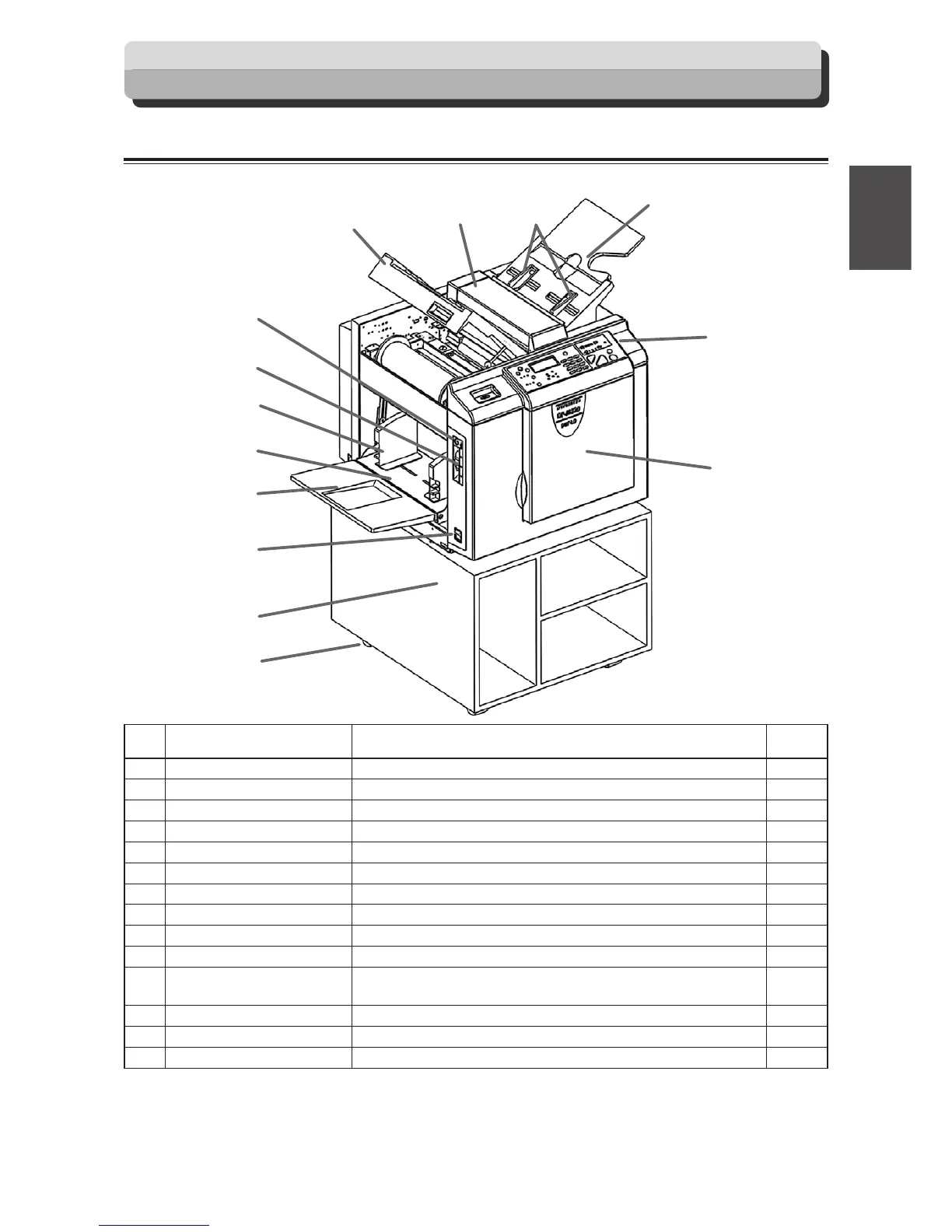

Printer Appearance
w
q
!3
e
r
t
y
u
i
o
!0
!1
!2
!4
No. Name Function
q Document guide Slide to match the width of the document.
w ADF Documents of sheet type can be printed consecutively.
e Upper cover Open to replace the master roll, etc.
r Feed tray descend switch Press to lower the feed tray.
t Feed pressure adjuster lever Use to adjust the paper feed pressure.
y Side guides Slide to match the width of the paper.
u Feed tray Load paper in this tray.
i Support tray Pull out when loading paper.
o Power switch Press to switch the power on and off.
!0 Cabinet (Option) Place the printer on this stand.
!1 Castor locks Lock the printer in position on the floor. Always lock the castor
locks when installing the printer.
!2 Front cover Open to replace ink pack and drum unit, etc.
!3 Control panel Displays operations and statuses, and sets functions.
!4 Document tray Place the document.
Refer
ence
page
30, 35,
35
75
88
33
32
32
32
23, 24
—
—
72, 80
20
34
To Next Page
