PA Series Biofeedback and Stimulation System User Manual Basic Functions and Operations
23
Chapter 4 Basic Functions and Operations
4.1 Connecting to Patient
Connect one end of the sensor cable to the channel interface of the main unit, and
connect the other end of the sensor cable to the interface of sensor/probe/electrodes.
Reference electrode should be connected when collecting EMG signals. Operate per the
sensor/probe/electrodes’ user manual.

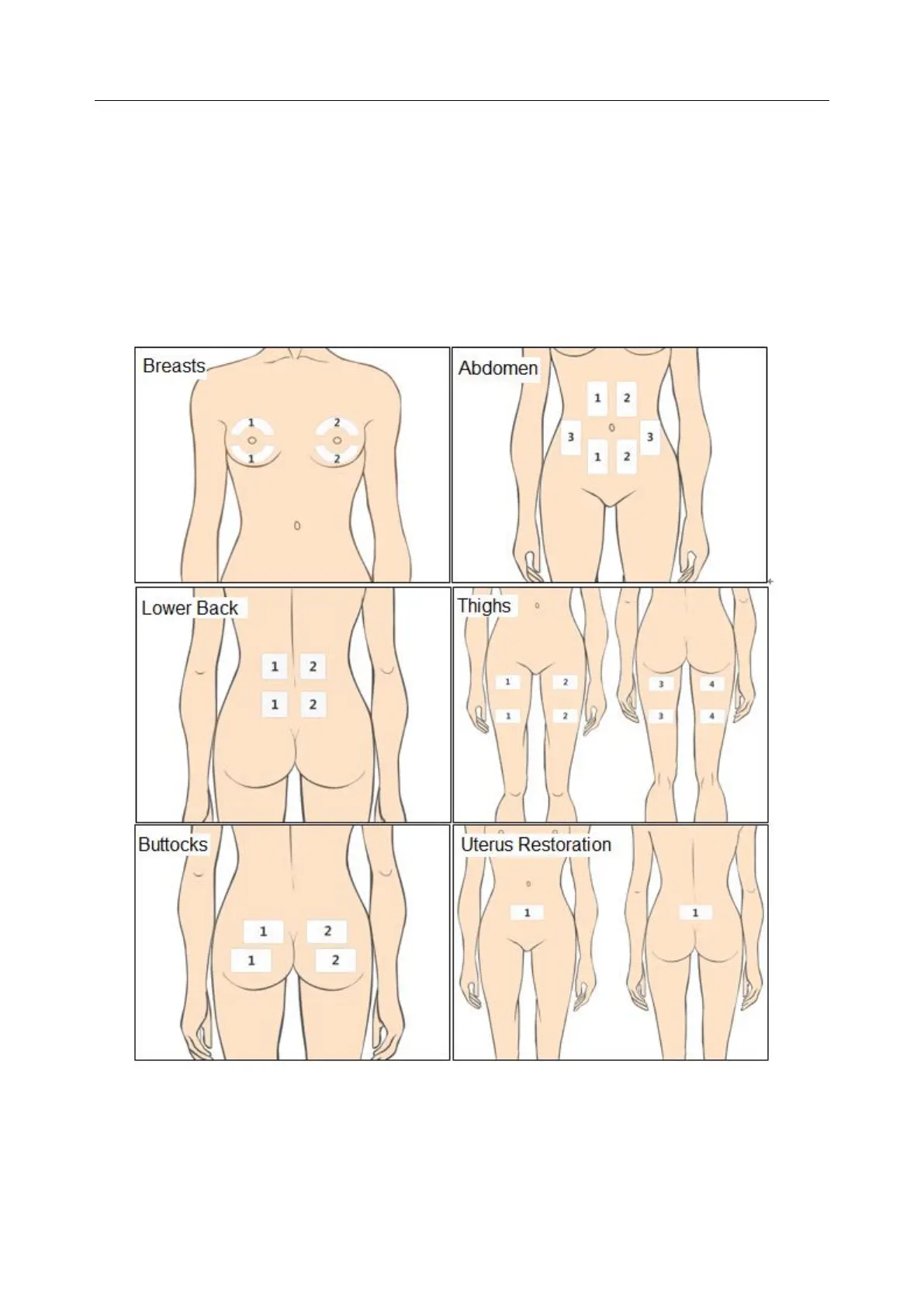

Adhesive electrodes placement is shown as below.
Figure 4-1
4.2 Adjusting Current
On the front panel of the main unit, there are four control knobs that can adjust the
current intensity. Rotate them clockwise to increase the current intensity, rotate them
