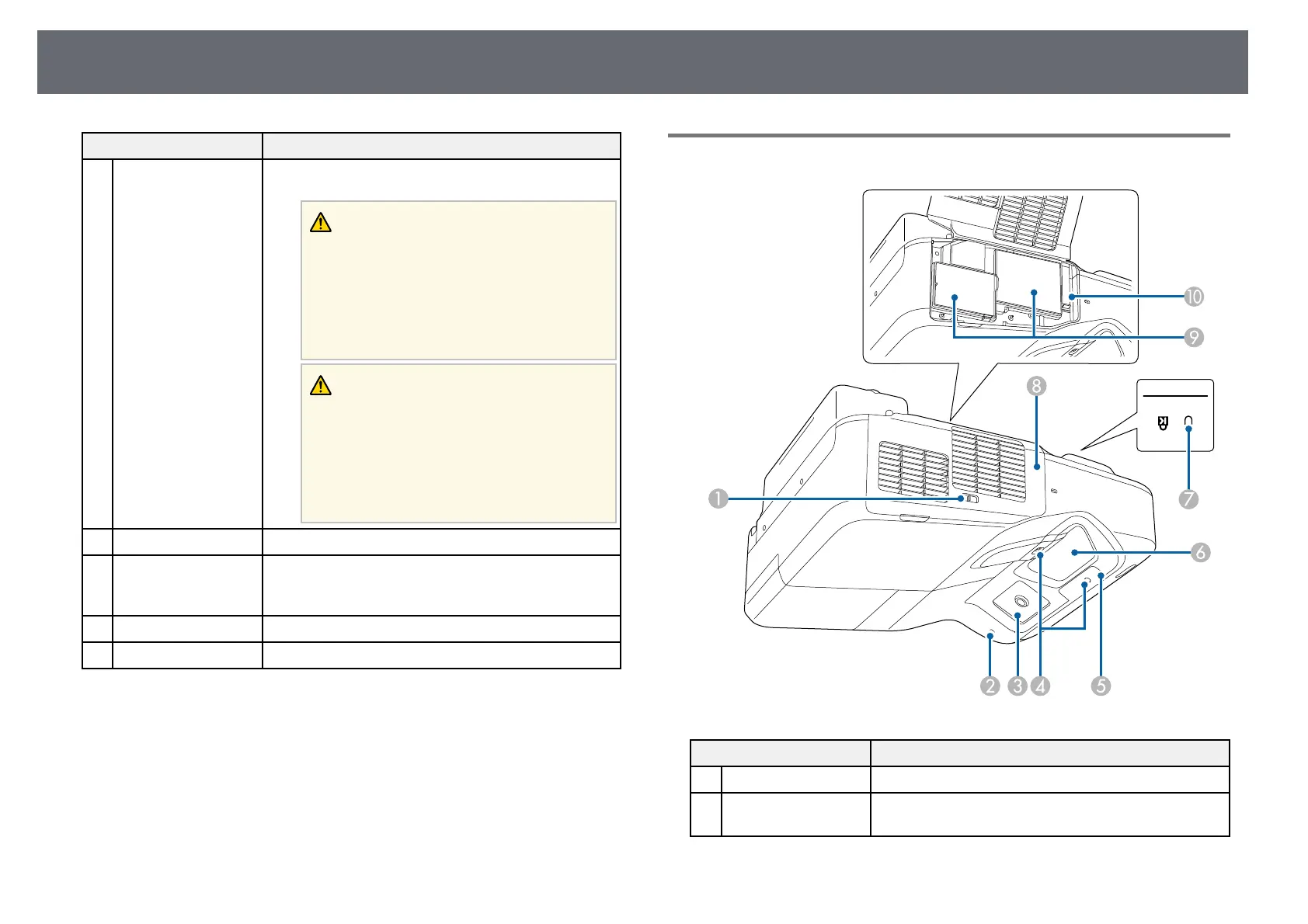

Projector Parts and Functions
13
Name Function
D
Air exhaust vent Exhaust vent for air used to cool the projector
internally.
Warning
Do not look into the vents. If the lamp
explodes, gases may escape and small
fragments of glass may be scattered which
could cause an injury. Contact a doctor if any
fragments of broken glass are inhaled or get
into the eyes or mouth.
Caution
While projecting, do not put your face or
hands near the air exhaust vent, and do not
place objects that may become warped or
damaged by heat near the vent. Hot air from
the air exhaust vent could cause burns,
warping, or accidents to occur.
E
Cable cover screws Screws to fix the cable cover in place.
F
Cable cover Loosen the two screws and open the cover when
connecting cables for external devices or installing the
wireless LAN module.
G
Control panel Operates the projector.
H
Speaker Outputs audio.
Projector Parts - Top/Side
Name Function
A
Filter cover latch Opens and closes the air filter cover.
B
Wireless LAN
indicator
Indicates the access status of the optional wireless LAN
module.
