Epson EB-685W User Manual

Screen Size and Projection Distance
237

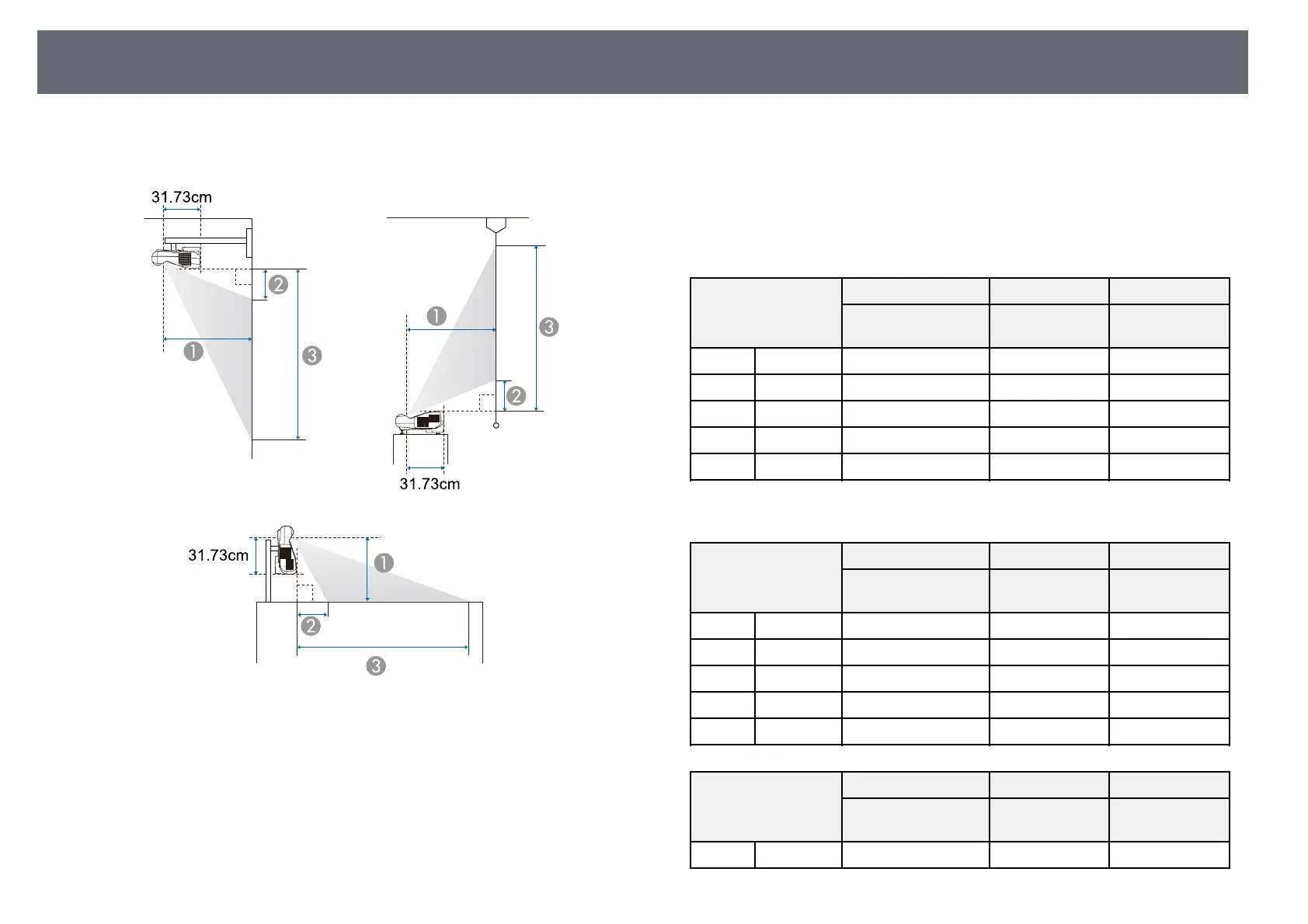

Check the table here to determine how far to place the projector from the
screen based on the size of the projected image.
A
Projection distance (cm)
B
Distance from the projector to the top of the screen (when mounting on a wall
or ceiling, or installing vertically) (cm)
Distance from the projector to the bottom of the screen (when placing on a
surface such as a desk) (cm)
C
Distance from the projector to the bottom of the screen (when mounting on a
wall or ceiling, or installing vertically) (cm)
Distance from the projector to the top of the screen (when placing on a surface
such as a desk) (cm)
WXGA (EB-695Wi/EB-685Wi/EB-680Wi/EB-675Wi)
16:10 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
60" 129 × 81 35.4 - 48.4 8.7 89.5
70" 151 × 94 41.6 - 56.7 11.5 105.8
80" 172 × 108 47.7 - 60.1 14.3 122.0
90" 194 × 121 53.9 - 60.1 17.1 138.3
100" 215 × 135 60.1 19.9 154.6
WXGA (EB-685W/EB-675W)
16:10 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
60" 129 × 81 35.4 - 48.4 8.7 89.5
70" 151 × 94 41.6 - 56.7 11.5 105.8
80" 172 × 108 47.7 - 60.1 14.3 122.0
90" 194 × 121 53.9 - 60.1 17.1 138.3
100" 215 × 135 60.1 19.9 154.6
4:3 screen size
A B C
Minimum (Wide) to
Maximum (Tele)
Minimum
(Wide)
Minimum
(Wide)
53" 108 × 81 35.4 - 48.4 8.7 89.5
