Adjusting the Image Height
54
If you are projecting from a table or other flat surface and the image is too
high or low, you can adjust the image height using the projector's adjustable
feet (only for models supplied with the feet).
The larger the angle of tilt, the harder it becomes to focus. Locate the
projector so that it only needs to be tilted at a small angle.
a
Turn on the projector and display an image.
b

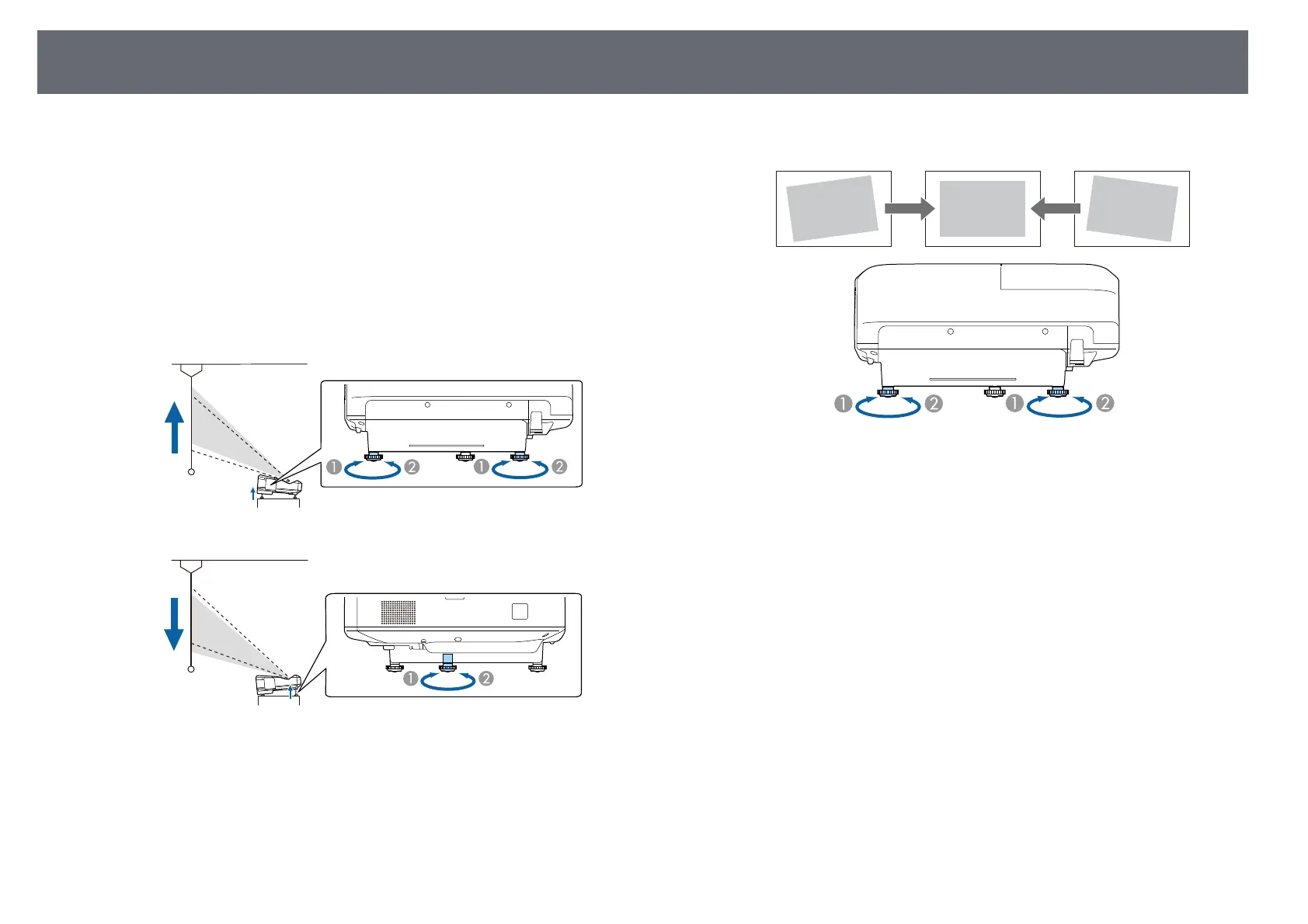

To adjust the image height, rotate the front or rear feet to extend or
retract them.
A
Extend the front or rear feet
B
Retract the front or rear feet
c
If the image is tilted, rotate the rear feet to adjust their height.
A
Extend the rear foot
B
Retract the rear foot
If the projected image is unevenly rectangular, you need to adjust the image
shape.
gg Related Links
• "Image Shape" p.55
