Maintenance 4. Cable
90
LS20-B R ev.4
Direction of the connector sub plate
When installing the plate, be careful for the direction.
Correct direction is where the letters: WARNING of warning label of electric shock will be
parallel to the base table.
If the plate is installed in wrong direction, the cables inside the Manipulator will be twisted
and may result in disconnection.

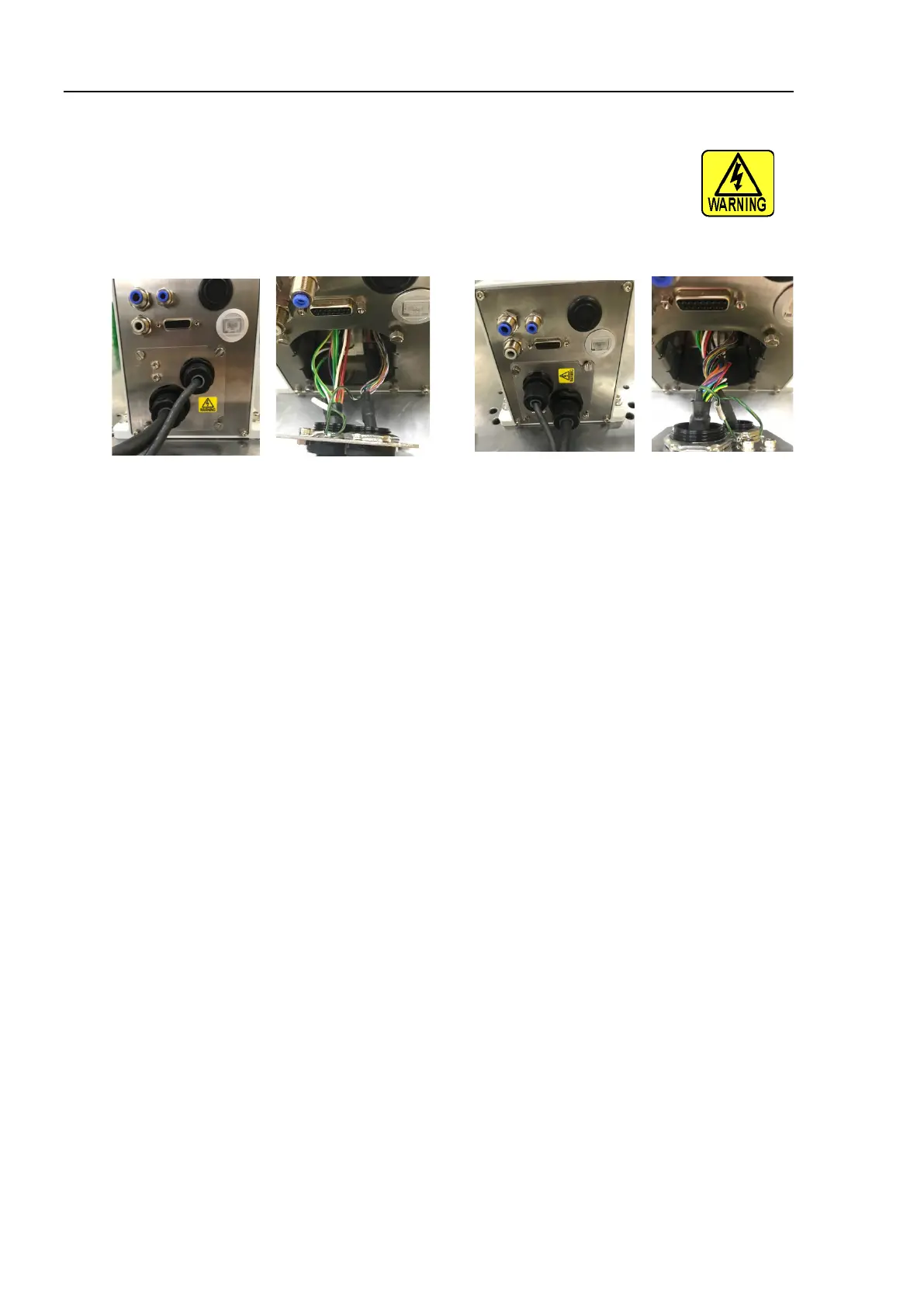

Correct: Cables are not twisted
Wrong: Cables are twisted
