Epson LS20-B Series User Manual

Setup & Operation 1. Safety
LS20-B Rev.4 5
1.2.1 Strength of the Ball Screw Spline
If a load exceeding the allowable value is applied to the ball screw spline, it may not work
properly due to deformation or breakage of the shaft.
If the ball screw spline is applied the load exceeding the allowable value, it is necessary to
replace the ball screw spline unit.
The allowable loads differ depending on distance where the load is applied to.
For calculating the allowable load, see the calculation formula below.
[Allowable bending moment]
M=50,000 N·mm
[Moment]
M=F
∙ L ＝ 110 ∙ 400 ＝ 44,000 N ∙ mm

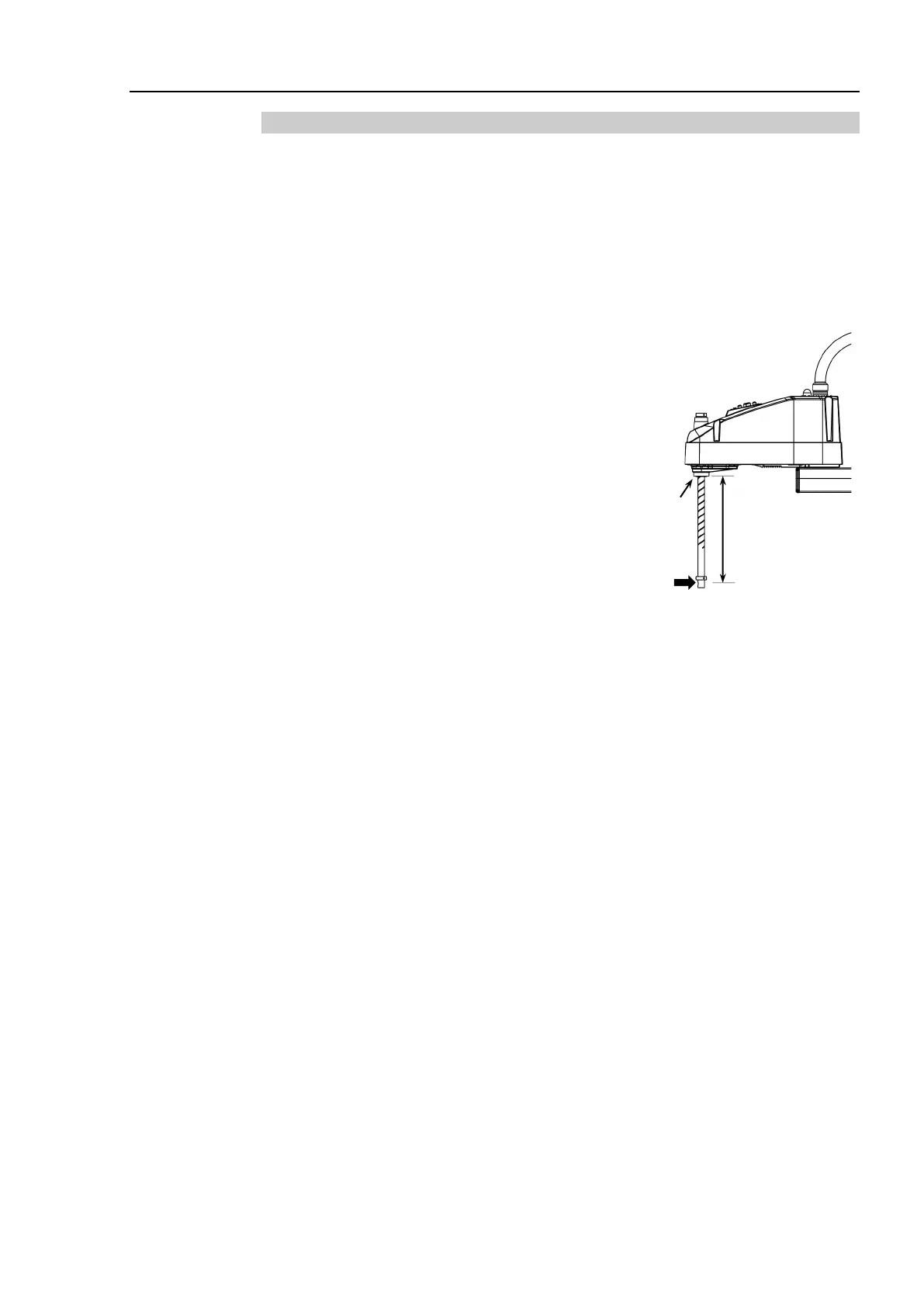

Example:
If 110 N(11.2kgf) load is applied
at 400 mm from
the end of the spline nut
End of the
spline nut
F
L
