Maintenance 3. Covers
72
LS20-B R ev.4

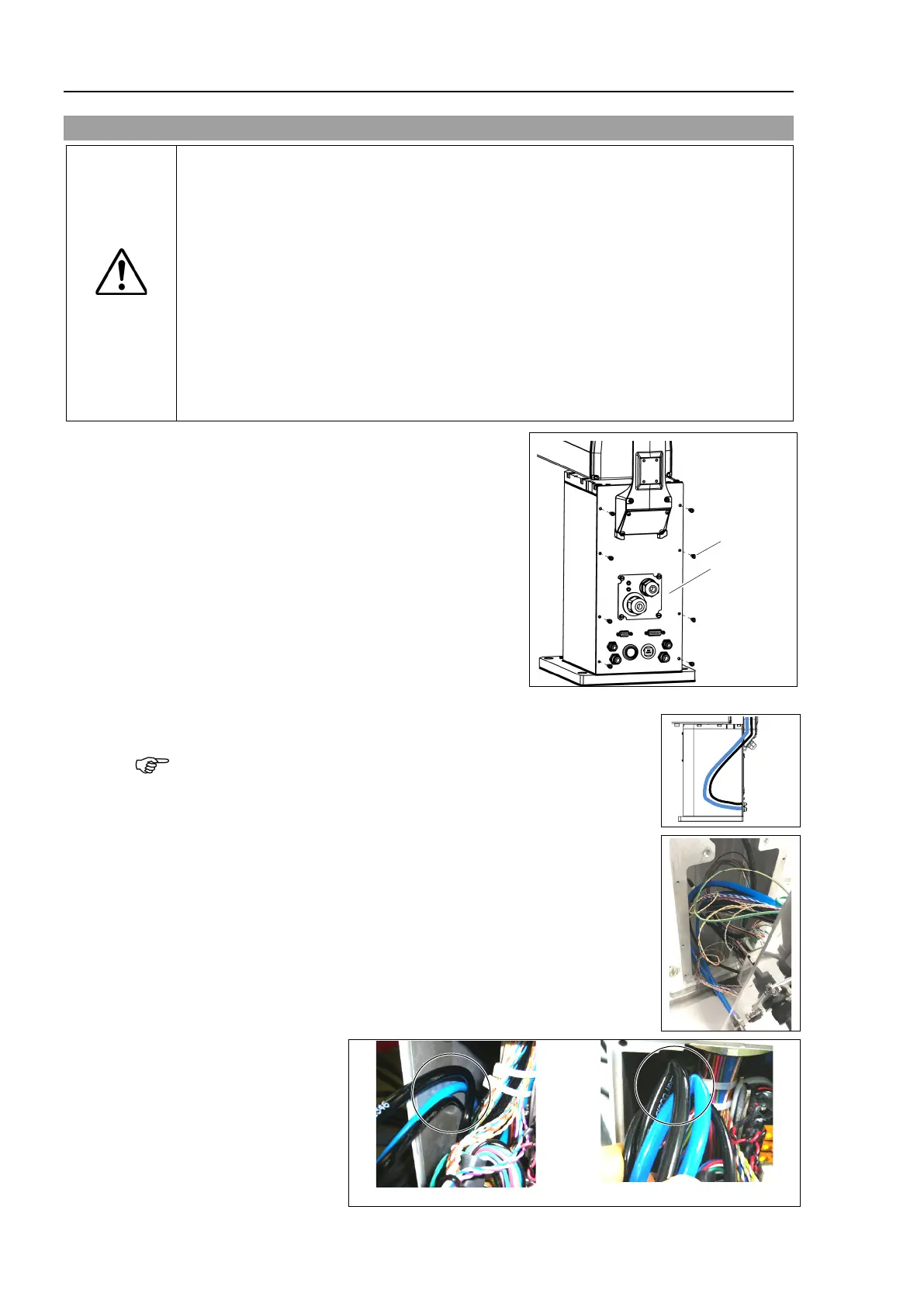

3.4 Connector Plate
CAUTION
■
Do not remove the connector plate
forcibly. Removing the connector plate
forcibly may result in damage to the cables, disconnection, and/or contact failure.
Damaged cables, disconnection, or contact failure is extremely hazardous and
may result in electric shock and/or improper function of the robot system.
When mounting the connector plate, be careful not to allow the cables to interfere
with the plate mounting and d
o not bend these cables forcibly to push them into
Unnecessary strain on cables may result in damage to the cables,
disconnection, and/or contact failure. Damaged cables, disconnection, or
contact failure
is extremely hazardous and may result in electric shock and/or
function of the robot system. When routing the cables, observe the
s after removing the connector plate. Be sure to place the cables
back to their original locations
.
U
nscrew the Connector Plate mounting bolts
and remove the plate.
When mounting the Connector Plate, be careful of the following.
Prevent the air tube from bending sharply inside
Also, do not block the air flow.
If there is a kink in the air tube,
air flow is blocked while the
manipulator is operating and may cause a trouble.
Put the air tubes along the wall as shown in the picture.
To Next Page
