Maintenance 2. General Maintenance
68
LS20-B R ev.4

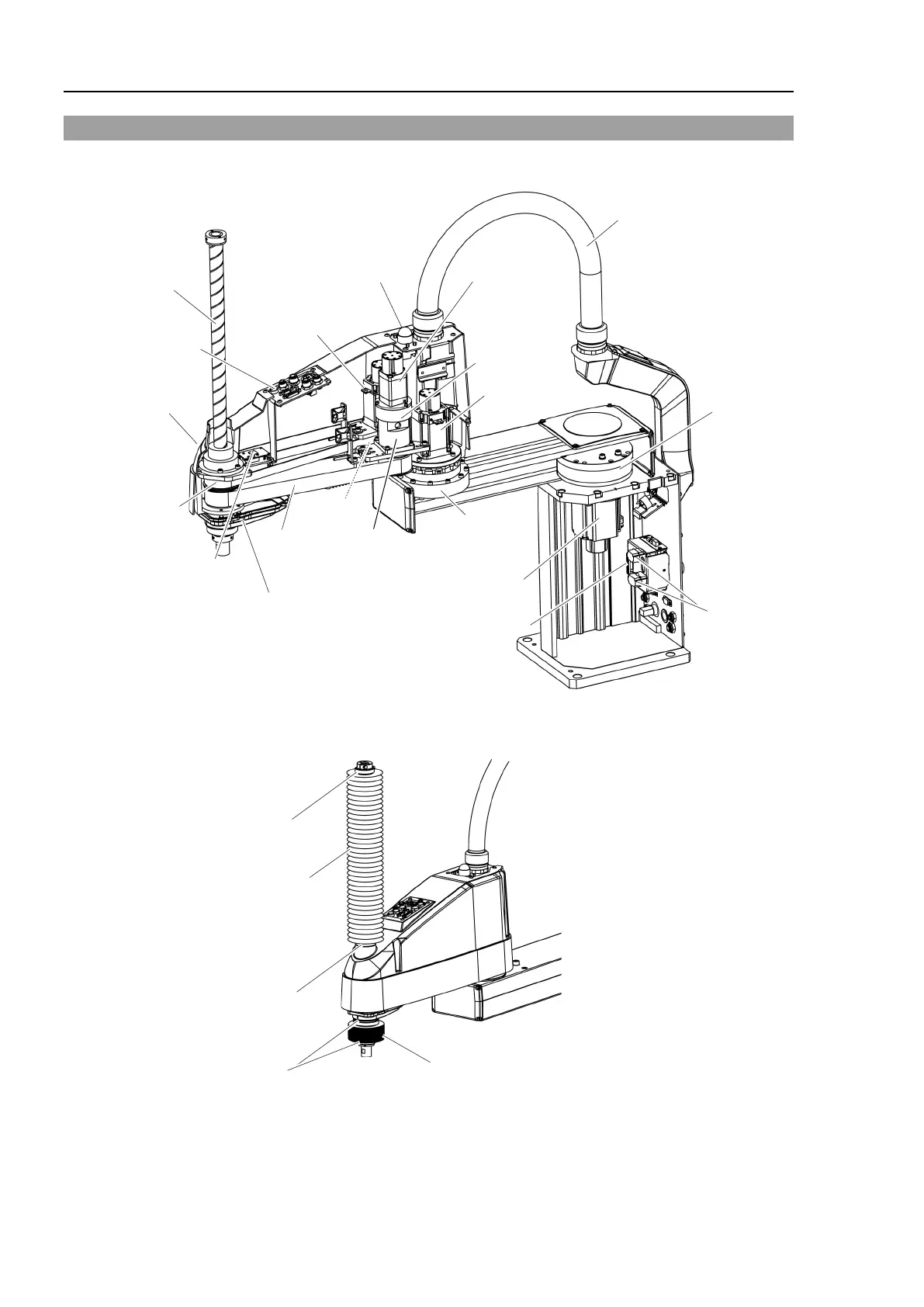

2.6 Layout of Maintenance Parts
Standard-model
Power Cable
Cable Unit
Signal Cable
Brake Release
Switch
LED Lamp
Ball Screw Spline Unit
Arm Top Cover
Joint #3
Motor
Z Belt
U Belt
Joint #2
Motor
Joint #2
Reduction Gear
Unit
Joint #1
Reduction Gear
Unit
Joint #1 Motor
Joint #4
Motor
Control Board
Arm Bottom Cover
Joint #4
Brake
Joint #3
Brake
Joint #4
Reduction
Gear Unit
Cleanroom-model (with optional bellows)
For the Cleanroom-model, the following parts are added to the Standard-model.
Bellows
Bellows
Clamp Band
Clamp Band
Clamp Band
