3.8 Relocation and Storage
3.8.1 Precautions for Relocation and Storage
Observe the following when relocating, storing, and transporting the Manipulators.
THE INSTALLATION SHALL BE PREFORMED BY QUALIFIED INSTALLATION
PERSONNEL AND SHOULD CONFORM TO ALL NATIONAL AND LOCAL CODES.
WARNING
■
Only authorized personnel
should perform sling work and operate a crane and a
these operations are performed by unauthorized personnel, it is
hazardous and may result in serious bodily injury and/or severe
equipment damage to the robot system.
■
Manipulator with your hands when hoisting it. Unstable hoisting is
extremely hazardous and may result in serious bodily injury and/or severe
equipment damage to the robot system as the fall of the Manipulator.
CAUTION
■
Before relocating the Manipulator,
fold the arm and secure it tightly with a wire tie
to prevent hands or fingers from
being caught in the Manipulator.
When removing the anchor bolts, support the Manipulator to prevent falling.
Removing the
anchor bolts without support may result in a fall of the Manipulator,
and then get hands, fingers, or feet caught.
To transport the Manipulator, secure it to the
delivery equipment or have at least
2 people to
Also, do not hold the bottom of the base (the
shaded area
in the figure). Holding the area by
hand is extremely hazardous and may cause your
hands and fingers caught.
LS20-B804*: approx. 48 kg: 105.8 lbs.
LS20-BA04*: approx. 51 kg: 112.5 lbs.

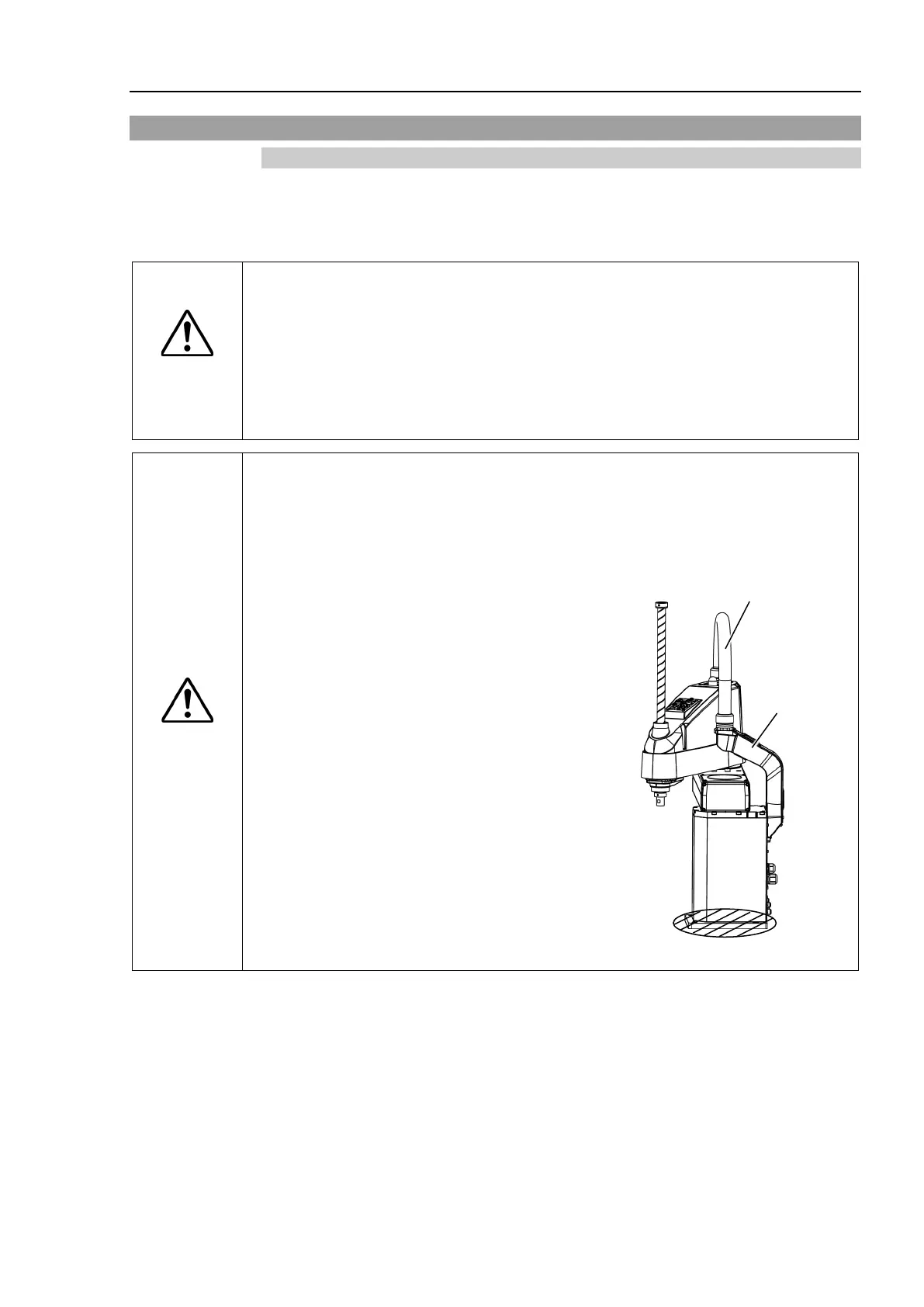

(Figure: LS20-B804S)
Do not hold the metal duct and the resin duct
when
transporting the Manipulator.
may damage them.
